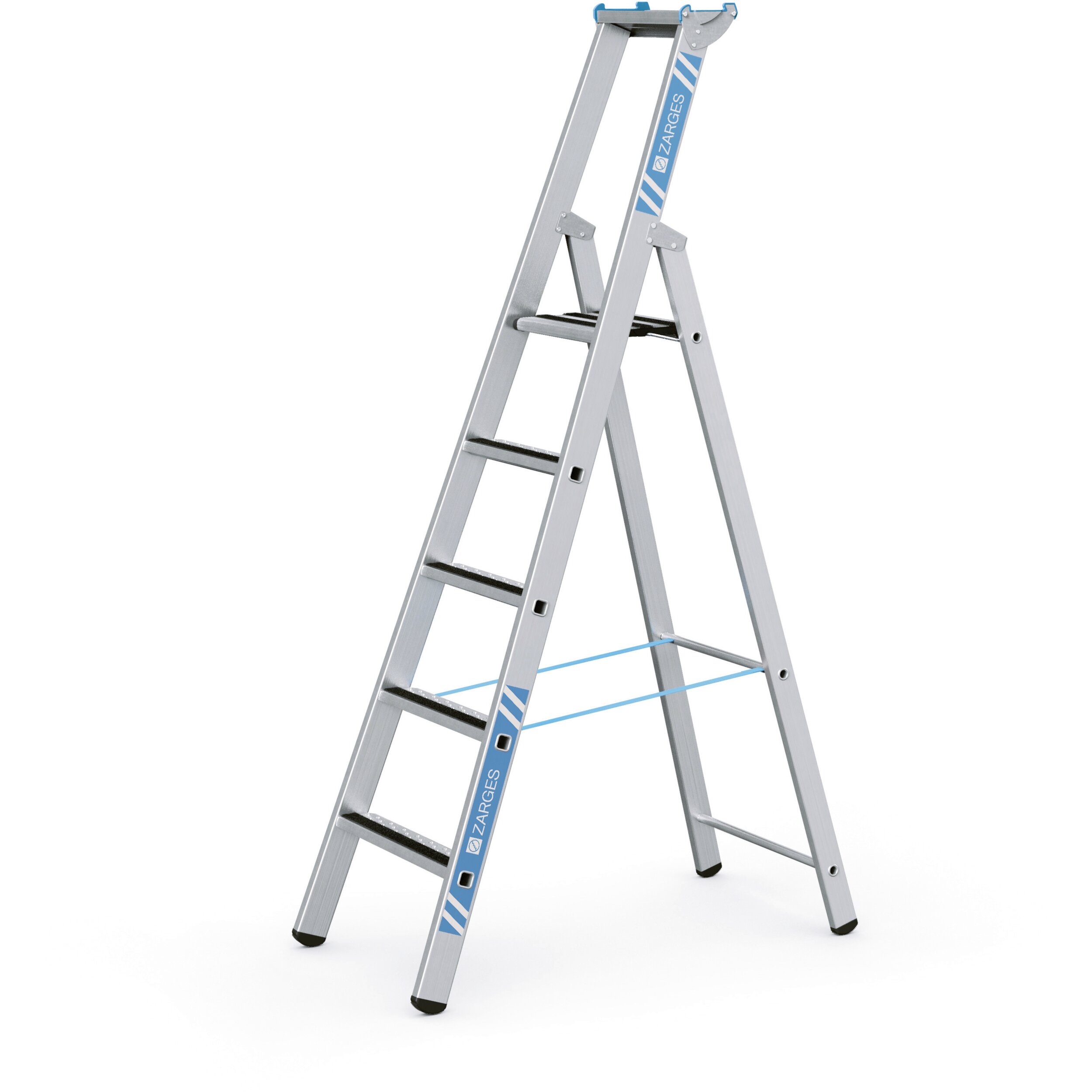

R13step S

SKU: 41638

Details

Safer ascent with the highest non-slip performance thanks to R13 treads for oily and wet environment.

Safer ascent with the highest non-slip performance thanks to R13 treads for oily and wet environment.
Large platform with R13 surface that allows personnel to stand safely and comfortably even when working for extended periods.
Practical tray with plenty of space for tools and small items.
80 mm deep treads with R13 surface and perforations to drain fast.
Abrasion-resistant, anodised stiles.
Practical aluminium storage tray for small items and tools.
Platform made from extruded aluminium (300 mm × 250 mm) with R13 surface for safer and comfortable standing even when working for longer periods of time.
High-strength perlon belts prevent splay.
Maximum working heights thanks to 280mm high access.
Replaceable 2-component plastic end caps ensure positioning without risk of slipping and at the same time provide firm seating in the stile.

More Information
Standards	EN 131 professional
Warranty	10 years
Platform length	250 mm
Platform height	1.33 m
Platform width	300 mm
Material	Aluminium
Load capacity	max. 150 kg
Anti splay	Belt strap
Base	0,96 m × 0,56 m
Coating	anodised
Connection Stile-Rung	flanged
Tread depth	80 mm
Transport dimensions	approx. 2.150 mm × approx. 560 mm × approx. 170 mm
Stile depth steps/back stay	73mm / 58mm
Working height	3.35 m
Overall length	2.15 m
Tray	Aluminium
Number of rungs, incl. platform	5
Pitch rung/tread	265 mm
Producttype	Stepladder with flanged treads
Type rung/tread	R13 tread
Weight	10.5 kg
Overall base width	0.56 m
Stile depth	73 mm
Stile depth	58 mm
Length base area	0.96 m
Width base area	0.56 m
Number of rungs / treads	5

Order number	Anti splay	Base	Number of rungs, incl. platform	Overall base width	Overall length	Platform height	Transport dimensions	Weight	Working height
41636		0,57 m × 0,5 m	3	0.5 m	1.59 m	0.8 m	approx. 1.590 mm × approx. 500 mm × approx. 170 mm	8.3 kg	2.8 m
41637		0,76 m × 0,53 m	4	0.53 m	1.87 m	1.06 m	approx. 1.870 mm × approx. 530 mm × approx. 170 mm	9.8 kg	3.1 m
41638	Belt strap	0,96 m × 0,56 m	5	0.56 m	2.15 m	1.33 m	approx. 2.150 mm × approx. 560 mm × approx. 170 mm	10.5 kg	3.35 m
41639	Belt strap	1,15 m × 0,59 m	6	0.59 m	2.43 m	1.59 m	approx. 2.430 mm × approx. 590 mm × approx. 170 mm	11.5 kg	3.6 m
41640	Belt strap	1,34 m × 0,62 m	7	0.62 m	2.71 m	1.85 m	approx. 2.710 mm × approx. 620 mm × approx. 170 mm	12.3 kg	3.85 m
41641	Belt strap	1,53 m × 0,65 m	8	0.65 m	2.99 m	2.12 m	approx. 2.990 mm × approx. 650 mm × approx. 170 mm	12.8 kg	4.15 m
41642	Belt strap	1,91 m × 0,71 m	10	0.71 m	3.55 m	2.64 m	approx. 3.550 mm × approx. 710 mm × approx. 170 mm	16.1 kg	4.65 m
