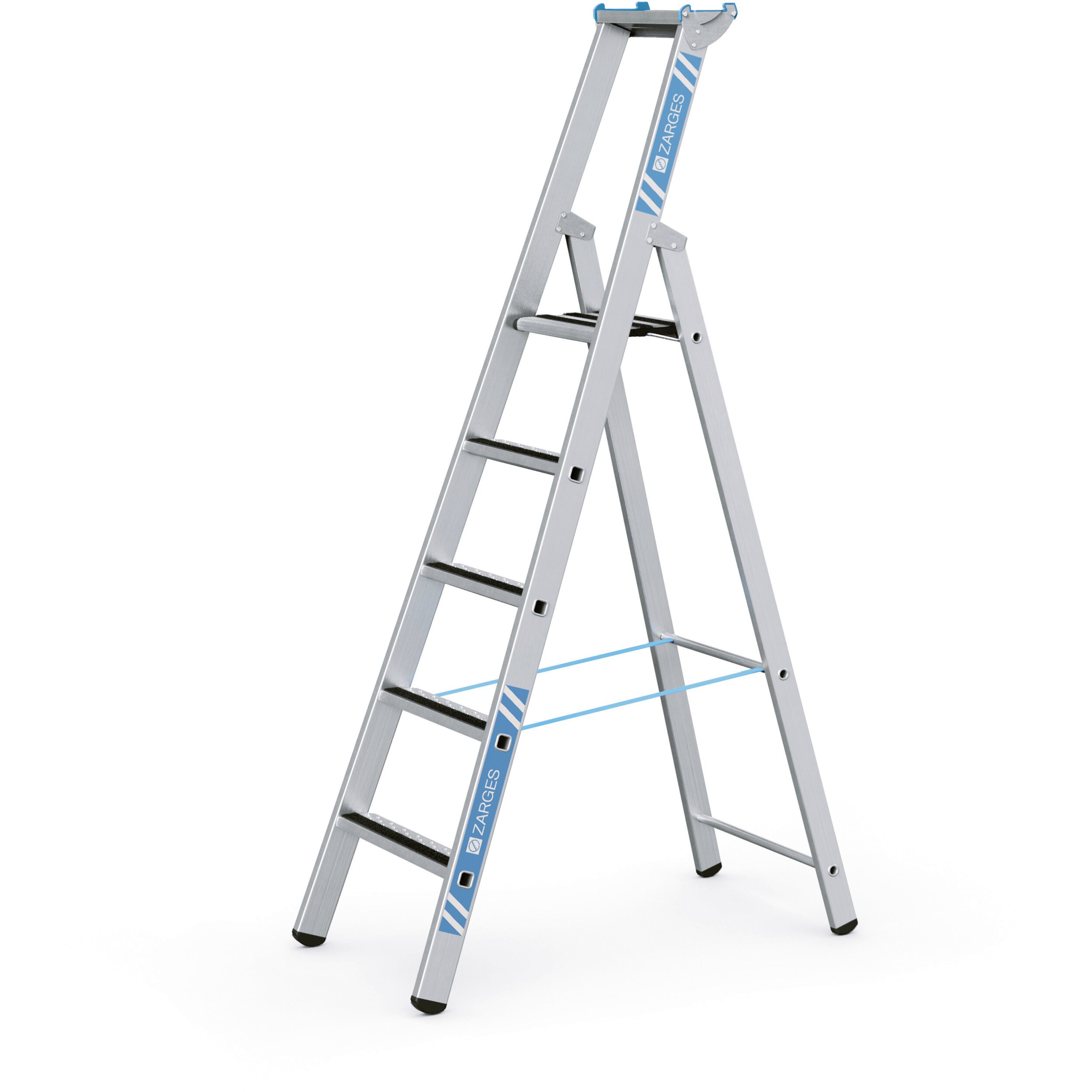

R13step S

Details

Safer ascent with the highest non-slip performance thanks to R13 treads for oily and wet environment.

  • Safer ascent with the highest non-slip performance thanks to R13 treads for oily and wet environment.
  • Large platform with R13 surface that allows personnel to stand safely and comfortably even when working for extended periods.
  • Practical tray with plenty of space for tools and small items.
  • 80 mm deep treads with R13 surface and perforations to drain fast.
  • Abrasion-resistant, anodised stiles.
  • Practical aluminium storage tray for small items and tools.
  • Platform made from extruded aluminium (300 mm × 250 mm) with R13 surface for safer and comfortable standing even when working for longer periods of time.
  • High-strength Perlon belts prevent splay, fitted on all models of 5 rungs or more.
  • Maximum working heights thanks to 280mm high access.
  • Replaceable 2-component plastic end caps ensure positioning without risk of slipping and at the same time provide firm seating in the stile.

Hints and special features

  • Complies with EN 131 Professional.

More Information

More Information
Platform length 250 mm
Warranty 10 years
Standards EN 131 professional
Platform width 300 mm
Material Aluminium
Load capacity max. 150 kg
Anti splay Belt strap
Coating anodised
Connection Stile-Rung flanged
Tread depth 80 mm
Tray Aluminium
Pitch rung/tread 265 mm
Producttype Stepladder with flanged treads
Type rung/tread R13 tread
Stile depth 73 mm
Stile depth 58 mm

Variants

Order number Anti splay Base Number of rungs, incl. platform Overall base width Overall length Platform height Transport dimensions Weight Working height
41636 0,57 m × 0,5 m 3 0.5 m 1.59 m 0.8 m approx. 1.590 mm × approx. 500 mm × approx. 170 mm 8.3 kg 2.8 m
41637 0,76 m × 0,53 m 4 0.53 m 1.87 m 1.06 m approx. 1.870 mm × approx. 530 mm × approx. 170 mm 9.8 kg 3.1 m
41638 Belt strap 0,96 m × 0,56 m 5 0.56 m 2.15 m 1.33 m approx. 2.150 mm × approx. 560 mm × approx. 170 mm 10.5 kg 3.35 m
41639 Belt strap 1,15 m × 0,59 m 6 0.59 m 2.43 m 1.59 m approx. 2.430 mm × approx. 590 mm × approx. 170 mm 11.5 kg 3.6 m
41640 Belt strap 1,34 m × 0,62 m 7 0.62 m 2.71 m 1.85 m approx. 2.710 mm × approx. 620 mm × approx. 170 mm 12.3 kg 3.85 m
41641 Belt strap 1,53 m × 0,65 m 8 0.65 m 2.99 m 2.12 m approx. 2.990 mm × approx. 650 mm × approx. 170 mm 12.8 kg 4.15 m
41642 Belt strap 1,91 m × 0,71 m 10 0.71 m 3.55 m 2.64 m approx. 3.550 mm × approx. 710 mm × approx. 170 mm 16.1 kg 4.65 m
