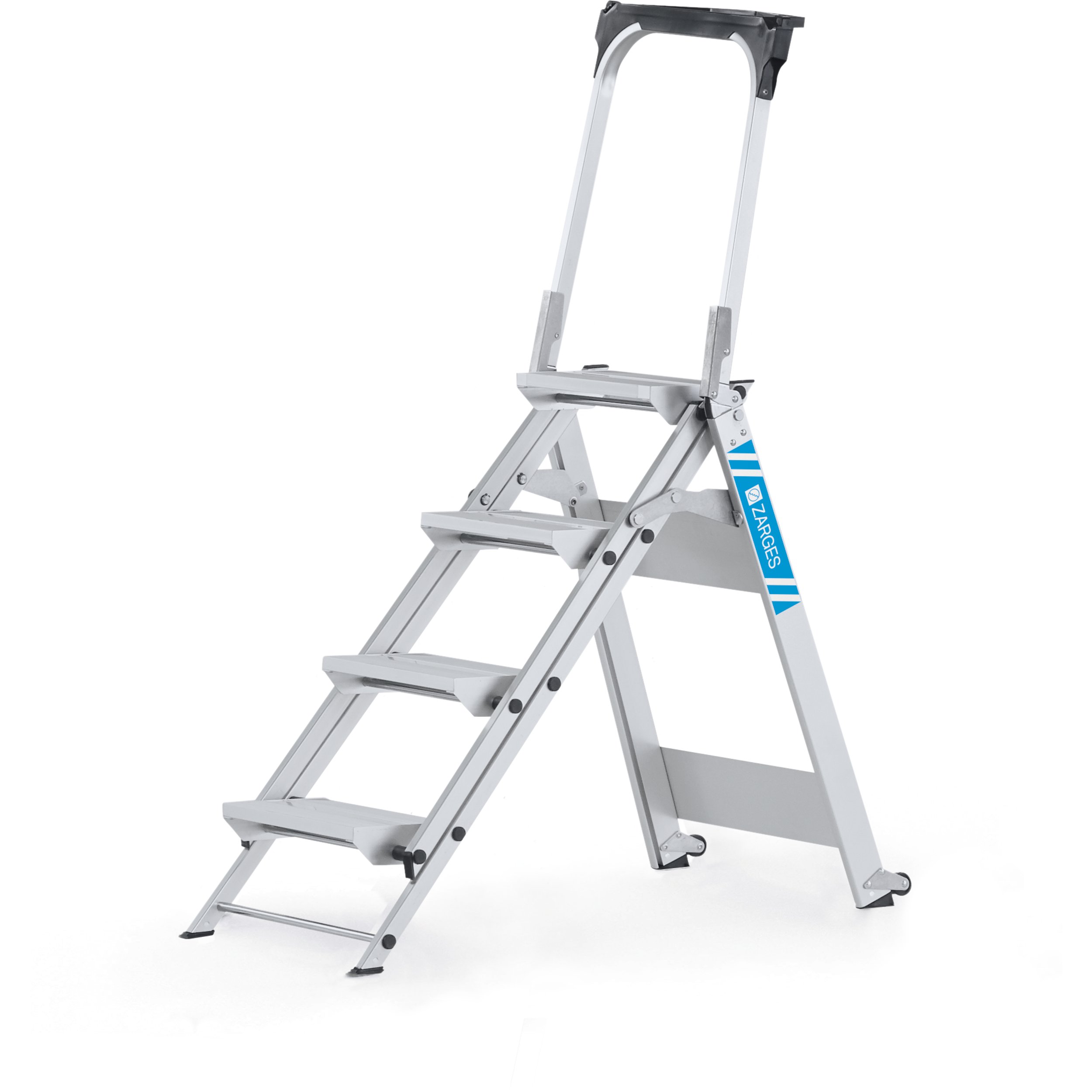

Plazastep P

SKU: 41493

Details

The flexible alternative for safe standing and an optimum price/performance ratio.

The flexible alternative for safe standing and an optimum price/performance ratio.
Collapsible for extra compactness.
Large steps for safe and comfortable standing.
Safety bar with practical storage tray, optional on the 3-step variant, attached as standard on the 4- or 5-step variant.
Order Nos. 41493 and 41494 with castors as standard, for easy movement of the steps.
Light-alloy treads 205 x 360 mm for safe and comfortable standing.
Safety bar with a practical storage tray.
Equipped with rollers on the support section as standard.
Stile ends with plastic edge finish.

More Information
Platform height	0.66 m
Platform length	205 mm
Warranty	10 years
Standards	EN 14183
Platform width	360 mm
Material	Aluminium
Load capacity	max. 150 kg
Coating	natural
Tread depth	205 mm
Transport dimensions	1.070 mm × 550 mm × 110 mm
Working height	2.65 m
Tray	Plastic
Number of rungs, incl. platform	3
Pitch rung/tread	220 mm
Safety bow	✔
Producttype	Safety steps
Type rung/tread	serrated
Weight	8.5 kg
Overall base width	0.57 m
Stile depth	68 mm
Number of rungs / treads	3

Order number	Number of rungs, incl. platform	Overall base width	Platform height	Safety bow	Transport dimensions	Weight	Working height
41490	2	0.55 m	0.44 m	No	770 mm × 530 mm × 70 mm	4.7 kg	2.45 m
41491	3	0.57 m	0.66 m	No	1.080 mm × 550 mm × 70 mm	7 kg	2.65 m
41493	3	0.57 m	0.66 m	Yes	1.070 mm × 550 mm × 110 mm	8.5 kg	2.65 m
41494	4	0.59 m	0.88 m	Yes	1.380 mm × 575 mm × 115 mm	10.5 kg	2.9 m
41495	5	0.6 m	1.1 m	Yes	1.710 mm × 630 mm × 140 mm	13 kg	3.1 m
