Platform steps

SKU: 40855541

Jetzt konfigurieren
Contact ZARGES Add to Compare Download Product Datasheet (PDF) Product Documents Spare parts and accessories

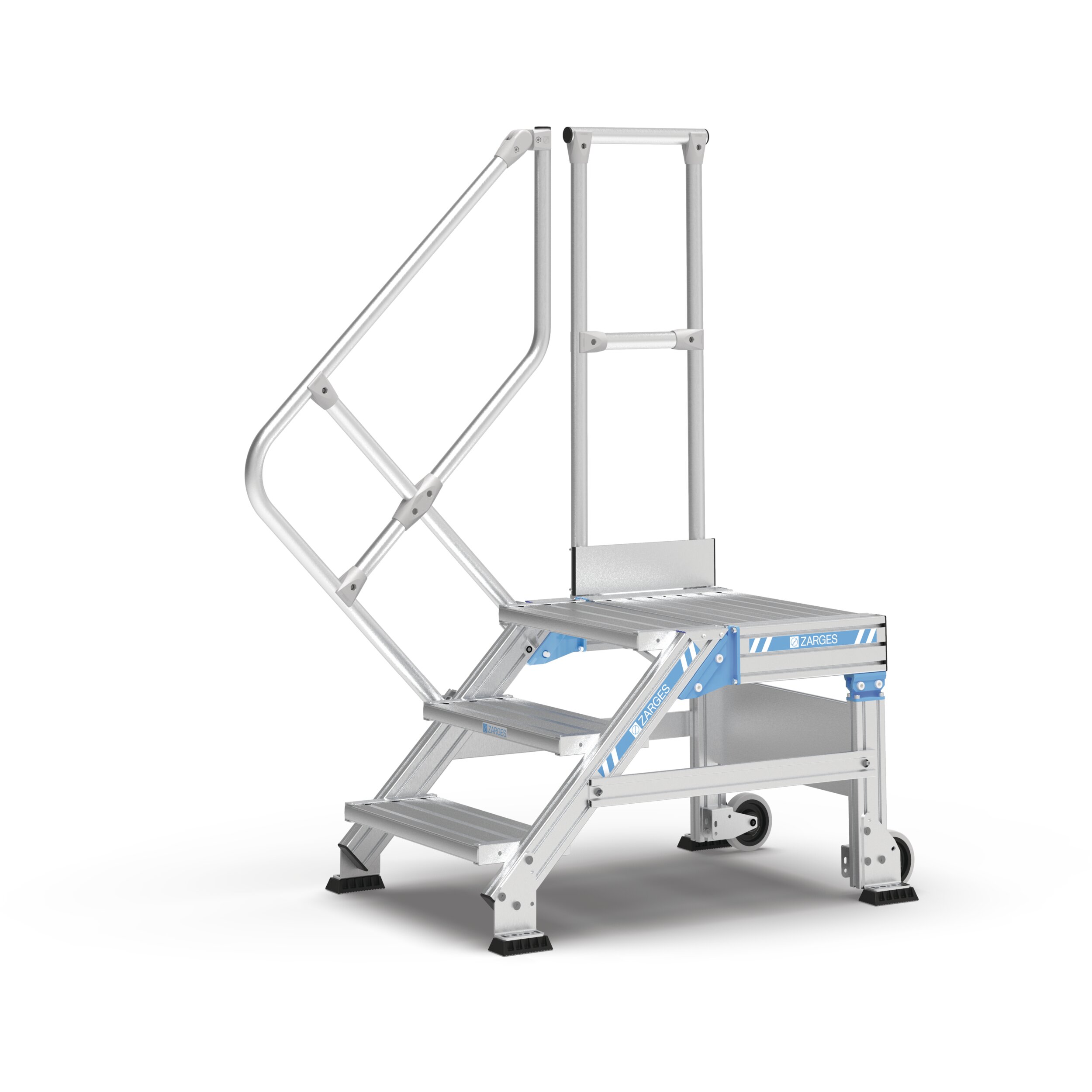

main product photo

Details

Compact work platform with easy-going steps. Choice of stationary or mobile version (for moving quickly to another working position). Ideal for work over long periods, even with tools.

  • Compact work platform with easy-going steps. Ideal for work over long periods, even with tools.

Hints and special features

  • We recommend equipping the product in accordance with the German Equipment and Product Safety Act (ProdSG) with two-sided handrails and, for steps with platforms or maintenance platforms, all-round fall protection (e.g. guardrails). If handrails or guardrails are not desired, the operator must ensure sufficient regulatory protection.
  • Standard applied: DIN EN ISO 14 122.

More Information

More Information
Standards EN ISO 14122
Warranty 10 years
Platform length 400 mm
load-capacity-step-td 150 kg
Tread width 600 mm
Load capacity max. 300 kg
Order number 40855541
Vertical height 750 mm
Inclination 60 °
Number of treads 3
Overall span 1008 mm
Number of rungs / treads 3

Variants

Order number Inclination Number of treads Overall span Tread width Vertical height
40855520 45 ° 2 951 mm 600 mm 400 mm
40855521 45 ° 3 1151 mm 600 mm 600 mm
40855522 45 ° 4 1351 mm 600 mm 800 mm
40855523 45 ° 5 1541 mm 600 mm 990 mm
40855524 45 ° 2 951 mm 800 mm 400 mm
40855525 45 ° 3 1151 mm 800 mm 600 mm
40855526 45 ° 4 1351 mm 800 mm 800 mm
40855527 45 ° 5 1541 mm 800 mm 990 mm
40855528 45 ° 2 951 mm 1000 mm 400 mm
40855529 45 ° 3 1151 mm 1000 mm 600 mm
40855530 45 ° 4 1351 mm 1000 mm 800 mm
40855531 45 ° 5 1541 mm 1000 mm 990 mm
40855540 60 ° 2 864 mm 600 mm 500 mm
40855541 60 ° 3 1008 mm 600 mm 750 mm
40855542 60 ° 4 1147 mm 600 mm 990 mm
40855544 60 ° 2 864 mm 800 mm 500 mm
40855545 60 ° 3 1008 mm 800 mm 750 mm
40855546 60 ° 4 1147 mm 800 mm 990 mm
40855548 60 ° 2 864 mm 1000 mm 500 mm
40855549 60 ° 3 1008 mm 1000 mm 750 mm
40855550 60 ° 4 1147 mm 1000 mm 990 mm
