Platform steps

SKU: 40855524

Jetzt konfigurieren
Contact ZARGES Add to Compare Download Product Datasheet (PDF) Product Documents Spare parts and accessories

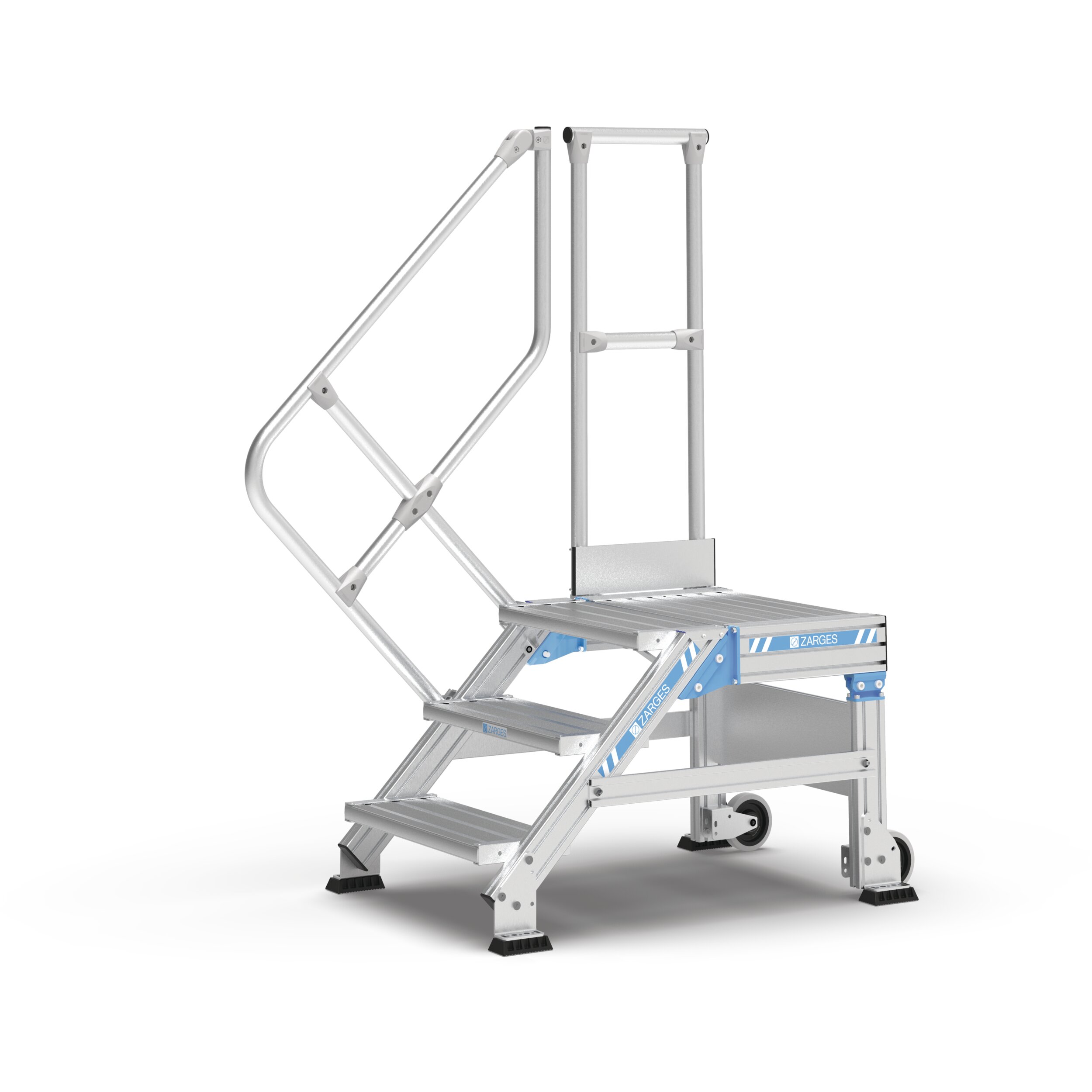

main product photo

Details

Compact work platform with easy-going steps. Choice of stationary or mobile version (for moving quickly to another working position). Ideal for work over long periods, even with tools.

  • Compact work platform with easy-going steps. Ideal for work over long periods, even with tools.

Hints and special features

  • We recommend equipping the product in accordance with the German Equipment and Product Safety Act (ProdSG) with two-sided handrails and, for steps with platforms or maintenance platforms, all-round fall protection (e.g. guardrails). If handrails or guardrails are not desired, the operator must ensure sufficient regulatory protection.
  • Standard applied: DIN EN ISO 14 122.

More Information

More Information
Order number 40855524
Platform length 400 mm
Tread width 800 mm
Warranty 10 years
Standards EN ISO 14122
Load capacity max. 300 kg
load-capacity-step-td 150 kg
Vertical height 400 mm
Inclination 45 °
Number of treads 2
Overall span 951 mm
Number of rungs / treads 2

Variants

Order number Inclination Number of treads Overall span Tread width Vertical height
40855520 45 ° 2 951 mm 600 mm 400 mm
40855521 45 ° 3 1151 mm 600 mm 600 mm
40855522 45 ° 4 1351 mm 600 mm 800 mm
40855523 45 ° 5 1541 mm 600 mm 990 mm
40855524 45 ° 2 951 mm 800 mm 400 mm
40855525 45 ° 3 1151 mm 800 mm 600 mm
40855526 45 ° 4 1351 mm 800 mm 800 mm
40855527 45 ° 5 1541 mm 800 mm 990 mm
40855528 45 ° 2 951 mm 1000 mm 400 mm
40855529 45 ° 3 1151 mm 1000 mm 600 mm
40855530 45 ° 4 1351 mm 1000 mm 800 mm
40855531 45 ° 5 1541 mm 1000 mm 990 mm
40855540 60 ° 2 864 mm 600 mm 500 mm
40855541 60 ° 3 1008 mm 600 mm 750 mm
40855542 60 ° 4 1147 mm 600 mm 990 mm
40855544 60 ° 2 864 mm 800 mm 500 mm
40855545 60 ° 3 1008 mm 800 mm 750 mm
40855546 60 ° 4 1147 mm 800 mm 990 mm
40855548 60 ° 2 864 mm 1000 mm 500 mm
40855549 60 ° 3 1008 mm 1000 mm 750 mm
40855550 60 ° 4 1147 mm 1000 mm 990 mm
