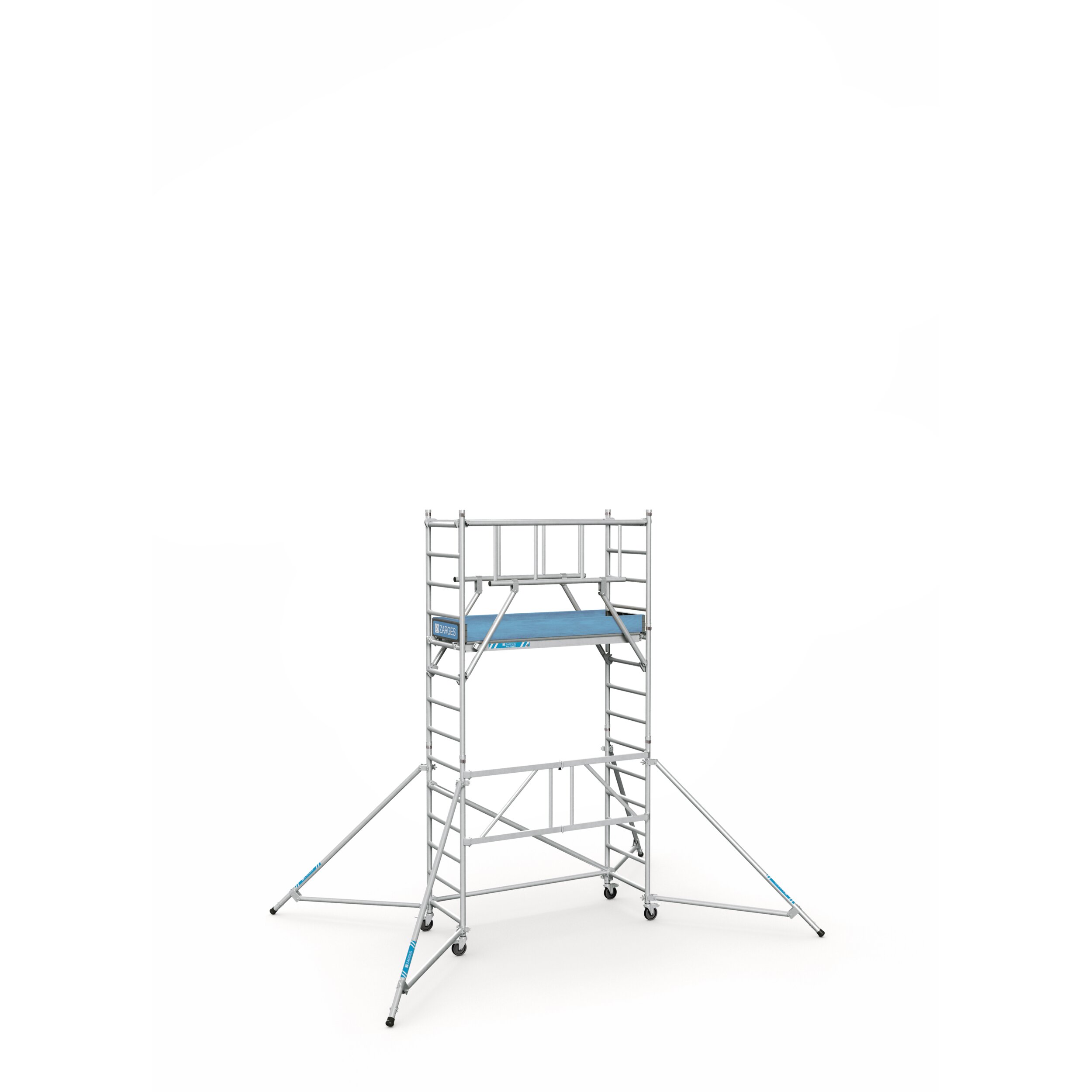

PaxTower S-PLUS 1T

SKU: 53523

Details

With advanced guardrail for extra safety and compliance with the new EN 1004:2020

Safer and quicker assembly and dismantling due to advanced guardrails and platforms at intervals of 2 m.
One-piece fold out snap-frame with simple, one-handed lock and release operation, for quick and easy set up.
Innovative toe board system with no clips – removes the need for toe board clips reducing the amount of loose components.
Smooth slot-in spigots to prevent tilting when the end frames join together.
Scaffolding length: 1.80 m; scaffolding width: 0.72 m.
Scaffolding Category 3 (load capacity of up to 200 kg/m²) according to the new EN 1004.
125 mm swivel castors with brake; the castors can be fitted with castor adapters (order no. 42974) to allow for height adjustment.
Stile and rung diameter 45 mm.

Order number	Overall height	Platform height	Transport dimensions	Weight	Working height
53521	1.65 m	0.55 m	1.950 mm × 750 mm × 400 mm	38.3 kg	2.55 m
53522	2.65 m	1.55 m	2.150 mm × 750 mm × 700 mm	71.4 kg	3.55 m
53523	3.65 m	2.55 m	2.150 mm × 750 mm × 750 mm	79.5 kg	4.55 m
53524	4.65 m	3.55 m	2.150 mm × 750 mm × 950 mm	108 kg	5.55 m
53525	5.65 m	4.55 m	2.150 mm × 750 mm × 1.100 mm	114.1 kg	6.55 m
53526	6.65 m	5.55 m	2.150 mm × 750 mm × 1.300 mm	142.6 kg	7.55 m
53510	1.65 m	0.55 m	1.950 mm × 750 mm × 350 mm	29.1 kg	2.55 m
