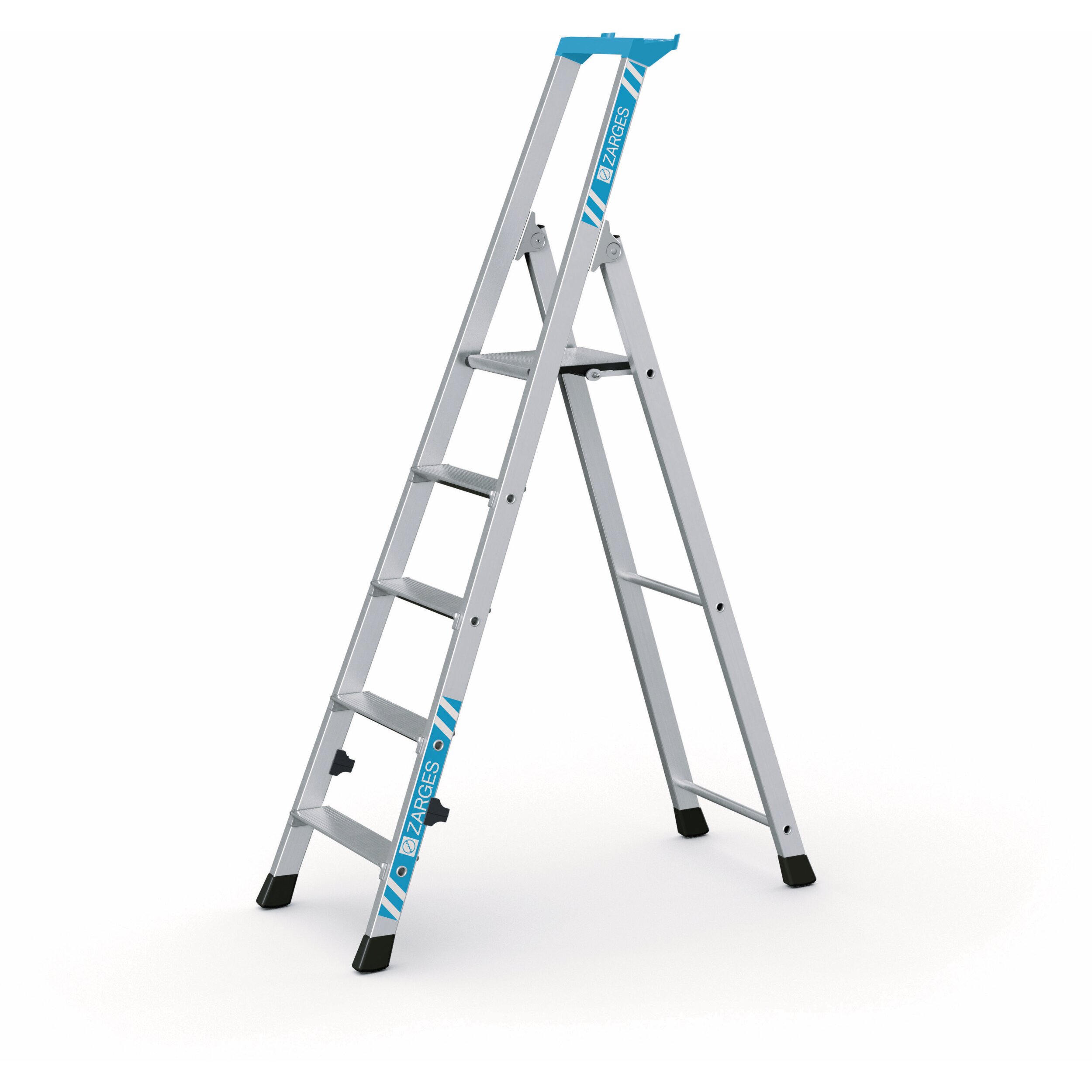

Nova S

SKU: 42455

Details

The classic model for safe standing and comfortable working, with a practical storage tray and high-stability patented rung-stile connection.

The classic model for safe standing and comfortable working, with a practical storage tray and high-stability patented rung-stile connection.
Large platform with anti-slip ribbing.
Practical tray with plenty of space for tools and small items.
80 mm deep surfaces to stand on.
Patented tread construction: robust, stable, durable, flanged rung-stile connection.
The extruded aluminium sections give the platform optimum stability.
Two extruded section bridge raisers.
Firm positioning thanks to anti-slip plastic end caps.
Enclosed rung profile and integrated guide tube.

More Information
Platform height	1.05 m
Platform length	250 mm
Warranty	10 years
Standards	EN 131 professional
Platform width	250 mm
Material	Aluminium
Load capacity	max. 150 kg
Anti splay	Belt strap
Base	0,99 m × 0,46 m
Coating	natural
Connection Stile-Rung	flanged
Tread depth	80 mm
Transport dimensions	1.810 mm × 470 mm × 120 mm
Vertical ladder height	1.65 m
Stile depth steps/back stay	48mm / 48mm
Working height	3.05 m
Overall length	1.8 m
Tray	Plastic
Number of rungs, incl. platform	5
Pitch rung/tread	216 mm
Producttype	Stepladder with flanged treads
Type rung/tread	serrated
Weight	6.9 kg
Overall base width	0.46 m
Stile depth	48 mm
Stile depth	48 mm
Number of rungs / treads	5

Order number	Anti splay	Base	Number of rungs, incl. platform	Overall base width	Overall length	Platform height	Transport dimensions	Vertical ladder height	Weight	Working height
42453		0,69 m × 0,42 m	3	0.42 m	1.34 m	0.61 m	1.350 mm × 420 mm × 120 mm	1.22 m	4.8 kg	2.6 m
42454		0,84 m × 0,44 m	4	0.44 m	1.57 m	0.83 m	1.580 mm × 440 mm × 120 mm	1.43 m	5.8 kg	2.85 m
42455		0,99 m × 0,46 m	5	0.46 m	1.8 m	1.05 m	1.810 mm × 470 mm × 120 mm	1.65 m	6.9 kg	3.05 m
42456		1,14 m × 0,49 m	6	0.49 m	2.03 m	1.26 m	2.060 mm × 490 mm × 120 mm	1.86 m	8 kg	3.25 m
42457	Belt strap	1,28 m × 0,51 m	7	0.51 m	2.26 m	1.48 m	2.270 mm × 520 mm × 120 mm	2.08 m	9.1 kg	3.5 m
42458	Belt strap	1,44 m × 0,54 m	8	0.54 m	2.49 m	1.7 m	2.500 mm × 540 mm × 120 mm	2.29 m	10.2 kg	3.7 m
