Nova S

SKU: 42454

Contact ZARGES Add to Compare Download Product Datasheet (PDF) Product Documents

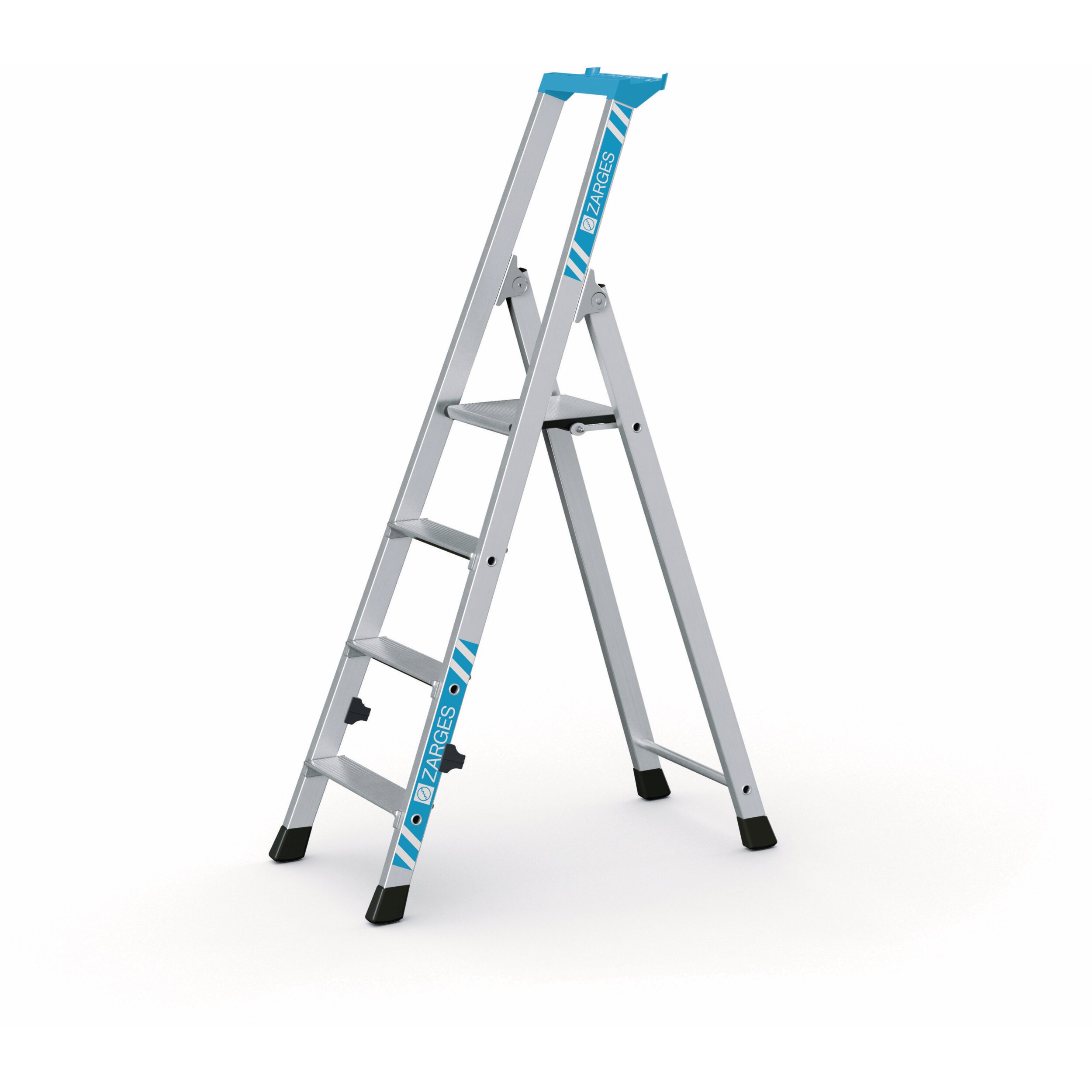

main product photo

Details

The classic model for safe standing and comfortable working, with a practical storage tray and high-stability patented rung-stile connection.

  • The classic model for safe standing and comfortable working, with a practical storage tray and high-stability patented rung-stile connection.
  • Large platform with anti-slip ribbing.
  • Practical tray with plenty of space for tools and small items.
  • 80 mm deep surfaces to stand on.
  • Patented tread construction: robust, stable, durable, flanged rung-stile connection.
  • The extruded aluminium sections give the platform optimum stability.
  • Two extruded section bridge raisers.
  • Firm positioning thanks to anti-slip plastic end caps.
  • Enclosed rung profile and integrated guide tube.

Hints and special features

  • Complies with EN 131 Professional.

More Information

More Information
Standards EN 131 professional
Warranty 10 years
Platform length 250 mm
Platform height 0.83 m
Platform width 250 mm
Material Aluminium
Load capacity max. 150 kg
Anti splay Belt strap
Base 0,84 m × 0,44 m
Coating natural
Connection Stile-Rung flanged
Tread depth 80 mm
Transport dimensions 1.580 mm × 440 mm × 120 mm
Vertical ladder height 1.43 m
Stile depth steps/back stay 48mm / 48mm
Working height 2.85 m
Overall length 1.57 m
Tray Plastic
Number of rungs, incl. platform 4
Pitch rung/tread 216 mm
Producttype Stepladder with flanged treads
Type rung/tread serrated
Weight 5.8 kg
Overall base width 0.44 m
Stile depth 48 mm
Stile depth 48 mm
Number of rungs / treads 4

Variants

Order number Anti splay Base Number of rungs, incl. platform Overall base width Overall length Platform height Transport dimensions Vertical ladder height Weight Working height
42453 0,69 m × 0,42 m 3 0.42 m 1.34 m 0.61 m 1.350 mm × 420 mm × 120 mm 1.22 m 4.8 kg 2.6 m
42454 0,84 m × 0,44 m 4 0.44 m 1.57 m 0.83 m 1.580 mm × 440 mm × 120 mm 1.43 m 5.8 kg 2.85 m
42455 0,99 m × 0,46 m 5 0.46 m 1.8 m 1.05 m 1.810 mm × 470 mm × 120 mm 1.65 m 6.9 kg 3.05 m
42456 1,14 m × 0,49 m 6 0.49 m 2.03 m 1.26 m 2.060 mm × 490 mm × 120 mm 1.86 m 8 kg 3.25 m
42457 Belt strap 1,28 m × 0,51 m 7 0.51 m 2.26 m 1.48 m 2.270 mm × 520 mm × 120 mm 2.08 m 9.1 kg 3.5 m
42458 Belt strap 1,44 m × 0,54 m 8 0.54 m 2.49 m 1.7 m 2.500 mm × 540 mm × 120 mm 2.29 m 10.2 kg 3.7 m
