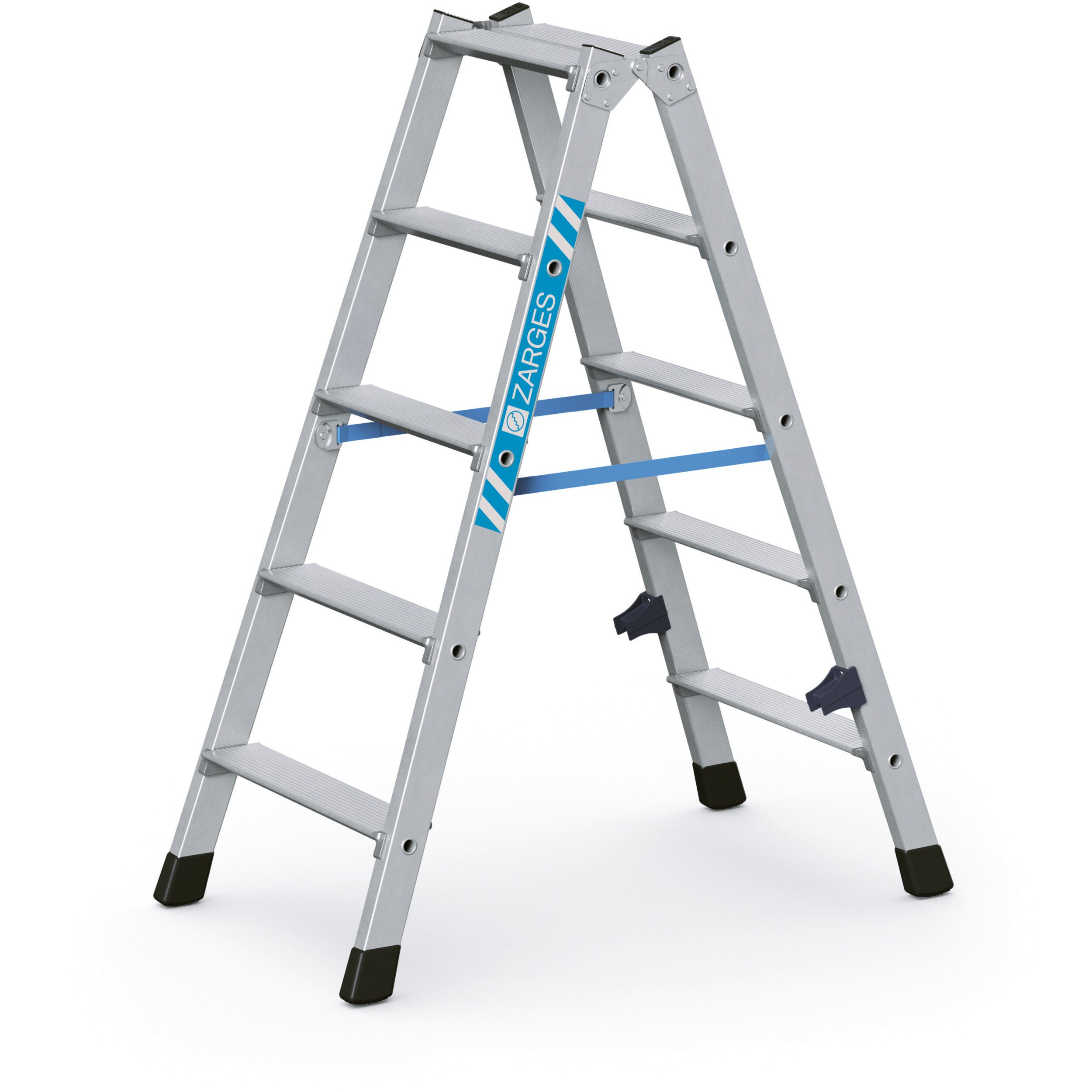

Nova B

SKU: 42465

Details

Flexible access equipment for safe ascent and working at heights of up to 3.65 metres.

Flexible access equipment for safe ascent and working at heights of up to 3.65 metres.
Patented tread construction: robust, stable, durable, flanged rung-stile connection.
80 mm deep surfaces to stand on.
Strong Perlon straps.
Strong steel hinges.
Firm positioning thanks to anti-slip plastic end caps.
Enclosed rung profile and integrated guide tube.

More Information
Standards	EN 131 professional
Warranty	10 years
Material	Aluminium
Load capacity	max. 150 kg
Anti splay	Belt strap
Base	0,91 m × 0,49 m
Coating	natural
Connection Stile-Rung	flanged
Tread depth	80 mm
Transport dimensions	1.150 mm × 490 mm × 140 mm
Vertical ladder height	1.07 m
Working height	2.55 m
Overall length	1.15 m
Number ladderparts	2
Number of treads	5
Number of treads	2 × 5
Pitch rung/tread	216 mm
Producttype	Stepladder with flanged treads
Type rung/tread	serrated
Weight	10.2 kg
Overall base width	0.48 m
Stile depth	48 mm
Length base area	0.91 m
Width base area	0.49 m
Number of rungs / treads	2 × 5

Order number	Base	Number of treads	Number of treads	Overall base width	Overall length	Transport dimensions	Vertical ladder height	Weight	Working height
42463	0,6 m × 0,44 m	3	2 × 3	0.44 m	0.68 m	680 mm × 440 mm × 140 mm	0.64 m	5.8 kg	2.1 m
42464	0,74 m × 0,47 m	4	2 × 4	0.47 m	0.91 m	920 mm × 470 mm × 140 mm	0.85 m	8.1 kg	2.3 m
42465	0,91 m × 0,49 m	5	2 × 5	0.48 m	1.15 m	1.150 mm × 490 mm × 140 mm	1.07 m	10.2 kg	2.55 m
42466	1,1 m × 0,52 m	6	2 × 6	0.52 m	1.37 m	1.380 mm × 520 mm × 140 mm	1.29 m	12.4 kg	2.75 m
42467	1,27 m × 0,54 m	7	2 × 7	0.54 m	1.61 m	1.610 mm × 540 mm × 140 mm	1.5 m	14.6 kg	3 m
42468	1,43 m × 0,56 m	8	2 × 8	0.56 m	1.84 m	1.840 mm × 620 mm × 170 mm	1.72 m	16.9 kg	3.2 m
42470	1,78 m × 0,61 m	10	2 × 10	0.61 m	2.3 m	2.300 mm × 610 mm × 140 mm	2.15 m	21.5 kg	3.65 m
