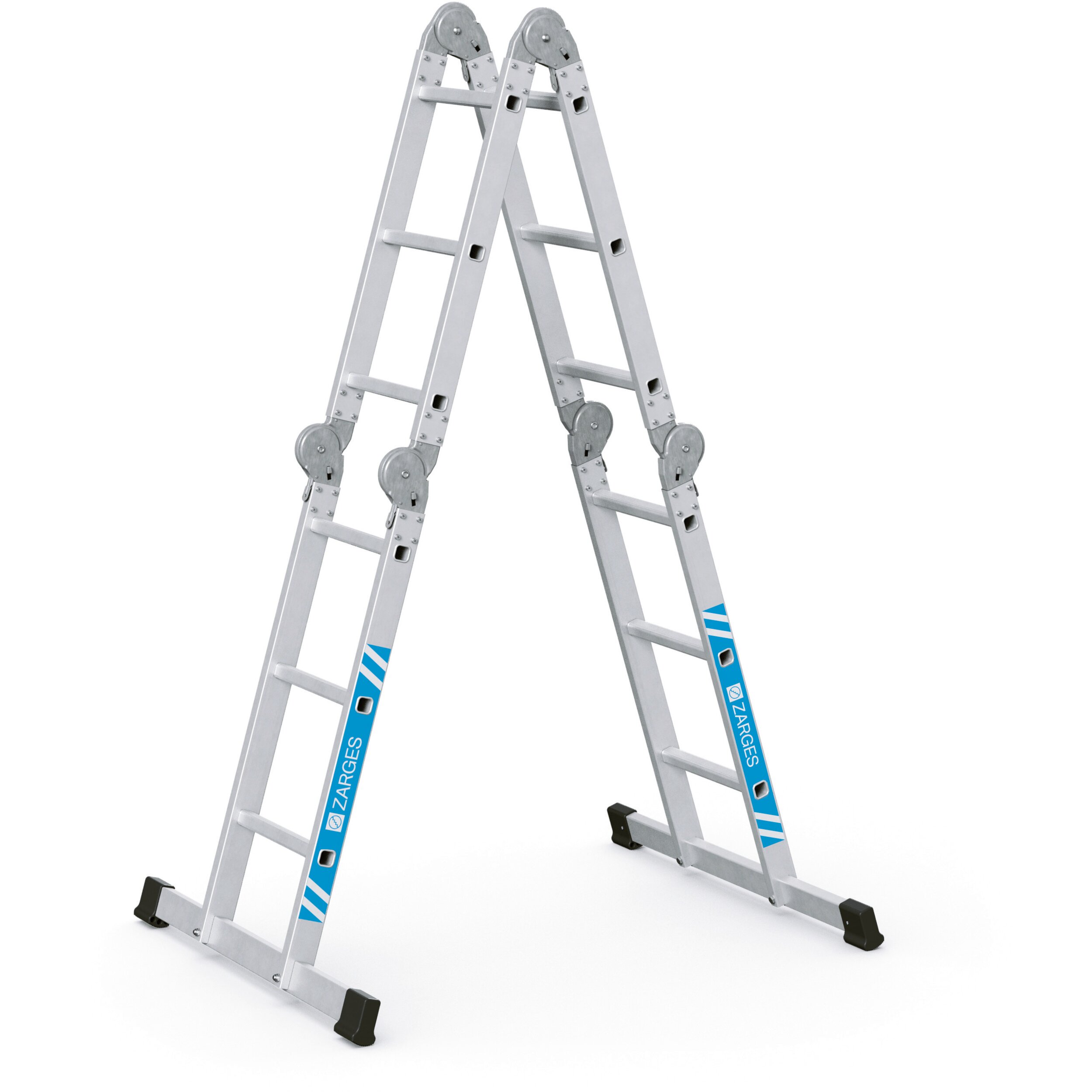

Multitec M

SKU: 42377

Details

The compact version for a wide range of uses and with a good price/performance ratio.

The compact version for a wide range of uses and with a good price/performance ratio.
Can be used as a single ladder, a stepladder with double-sided access or as a practical work platform.

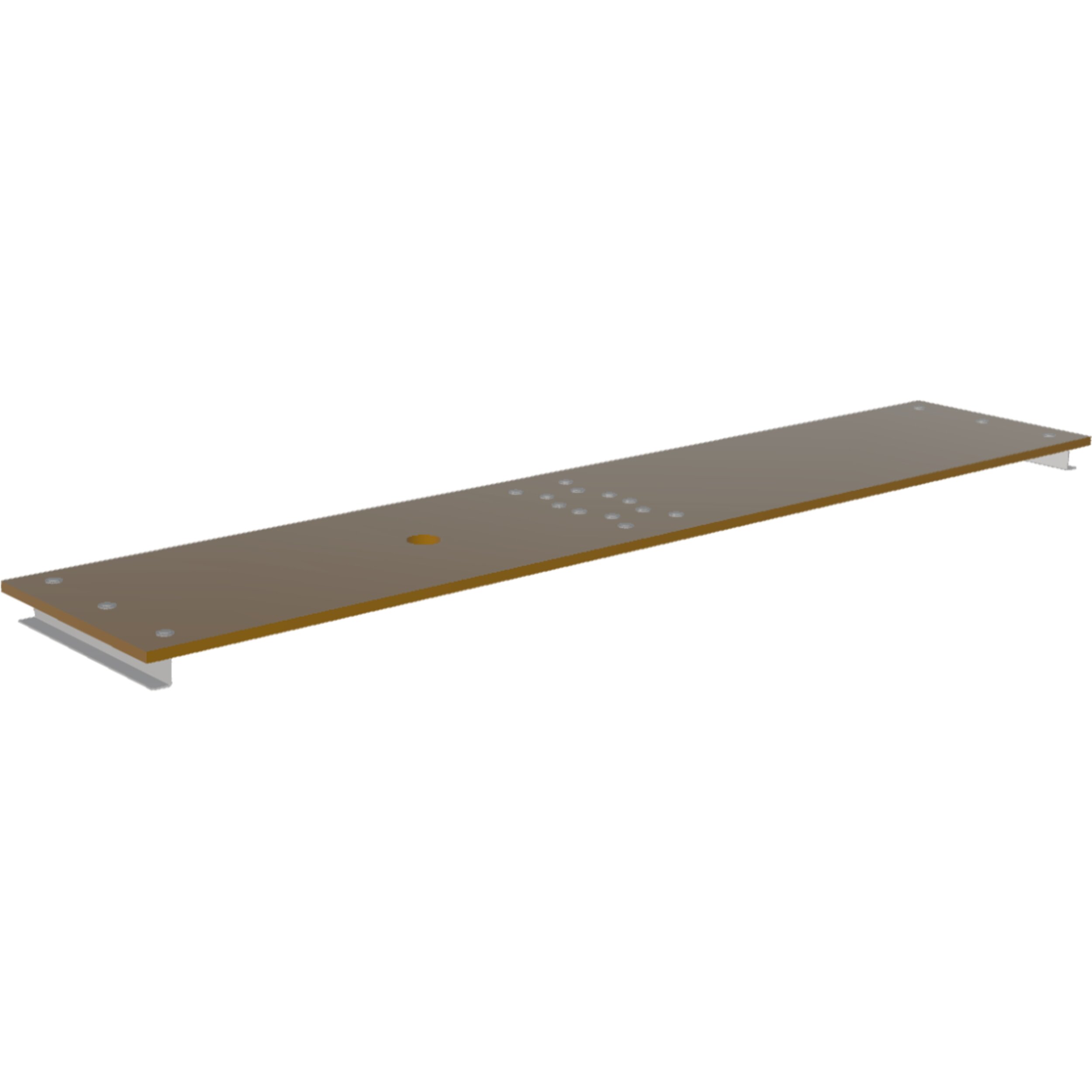

Order no. 42377-42379 with a folding wooden board for use as a work platform.
Order Nos. 42377 - 42379 are equipped with two horizontal stabiliser bars, Order No. 42384 with one horizontal stabiliser bar.
External width of ladder body: 350 mm.
Replaceable 2-component plastic end caps ensure secure positioning without the risk of slipping.

More Information
Number of rungs	4 × 3
Warranty	10 years
Length	1.02 m
Standards	EN 131-4
Material	Aluminium
Load capacity	max. 150 kg
Coating	natural
Connection Stile-Rung	flanged
Tread depth	30 mm
Dimensions, folded	Missing translation
Transport dimensions	1.030 mm × 360 mm × 270 mm
Vertical ladder height	1.75 m
Working height	4.45 m
Height as work platform	0.99 m
Length as lean-to ladder	3.62 m
Length as stepladder	1.85 m
Length as work platform	1.55 m
Number of rungs	3
Pitch rung/tread	265 mm
Producttype	Flanged multipurpose ladder, 4-section
Type rung/tread	serrated
Weight	16.2 kg
Overall base width	0.75 m
Width	0.75 m
Stile depth	59 mm
Number of rungs / treads	4 × 3

Order number	Height as work platform	Length as lean-to ladder	Length as stepladder	Length as work platform	Number of rungs	Number of rungs	Overall base width	Stile depth	Transport dimensions	Vertical ladder height	Weight	Working height
42377	0.99 m	3.62 m	1.85 m	1.55 m	3	4 × 3	0.75 m	59 mm	1.030 mm × 360 mm × 270 mm	1.75 m	16.2 kg	4.45 m
42378	0.99 m	4.19 m	2.13 m	2.11 m	3	2 × 3 + 2 × 4	0.8 m	59 mm	1.230 mm × 350 mm × 270 mm	2 m	19 kg	5 m
42384		4.74 m	2.41 m		4	4 × 4	0.9 m	59 mm	1.310 mm × 360 mm × 270 mm	2.3 m	15.5 kg	5.5 m
42379	0.99 m	4.74 m	2.41 m	2.67 m	3	2 × 3 + 2 × 5	0.9 m	61 mm	1.510 mm × 350 mm × 270 mm	2.3 m	22.2 kg	5.5 m
