Mobile platform steps with ZARGES Ergo Stop

SKU: 40255080

Contact ZARGES Add to Compare Download Product Datasheet (PDF) Product Documents Spare parts and accessories
main product photo

Details

Mobile access or work platforms that offer comfortable ascent. Ideal for work over long periods, even with tools and frequent changes of working position. Large-area platform with guardrail for safe and ergonomic working at heights.

  • Different angles of inclination, 45° for comfortable access, 60° for confined spaces.
  • Selection of tread widths 600 mm, 800 mm or 1000 mm.
  • Serrated aluminium (R10) step and platform surfaces as standard. Also available as steel open grid (R12) and steel perforated plate (R13) for extra non-slip properties.
  • Individually adjustable platform lengths.
  • Platform steps instantly ready for use due to an innovative brake system.
  • Chassis available in a non-static version as an option.

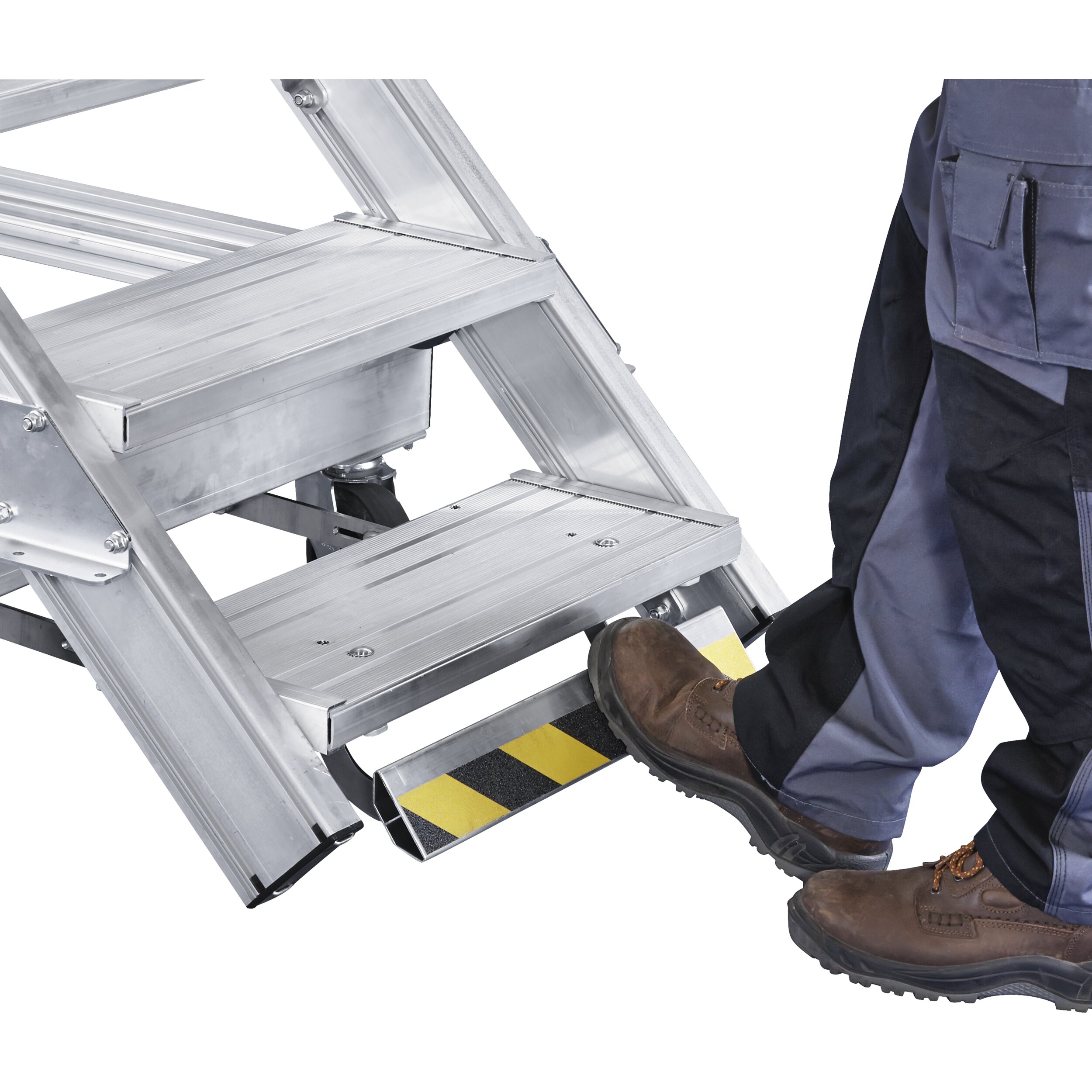

  • ZARGES Ergo Stop - all four castors can be braked conveniently using the footpedal on the flight of steps.
  • Individual guardrail configuration on the platform, optionally with swing door or pole barrier.
  • Maximum flexibility with optional handrails and guardrails which can be removed without tools.
  • Quick and simple assembly with the ZARGES connection system with a high level of pre-assembly.

Hints and special features

  • We recommend equipping the product in accordance with the German Equipment and Product Safety Act (ProdSG) with two-sided handrails and, for steps with platforms or maintenance platforms, all-round fall protection (e.g. guardrails). If handrails or guardrails are not desired, the operator must ensure sufficient regulatory protection.
  • Standard applied: DIN EN ISO 14 122.

More Information

More Information
Standards EN ISO 14122
Warranty 10 years
Platform length 600 mm
load-capacity-step-td 150 kg
Tread width 600 mm
Load capacity max. 300 kg
Vertical height 2750 mm
Inclination 60 °
Number of treads 11
Overall span 2285 mm
Chassis width 1620 mm
Number of rungs / treads 11

Variants

Order number Chassis width Inclination Number of treads Overall span Tread width Vertical height
40255014 1020 mm 45 ° 5 1698 mm 600 mm 1070 mm
40255016 1620 mm 45 ° 7 2128 mm 600 mm 1500 mm
40255018 1620 mm 45 ° 9 2558 mm 600 mm 1930 mm
40255020 1220 mm 45 ° 11 3017 mm 600 mm 2360 mm
40255022 1220 mm 45 ° 12 3447 mm 600 mm 2790 mm
40255024 1220 mm 45 ° 14 3877 mm 600 mm 3220 mm
40255026 1220 mm 45 ° 16 4307 mm 600 mm 3650 mm
40255028 1420 mm 45 ° 18 4737 mm 600 mm 4080 mm
40255030 1420 mm 45 ° 20 5167 mm 600 mm 4510 mm
40255034 1020 mm 45 ° 5 1698 mm 800 mm 1070 mm
40255036 1220 mm 45 ° 7 2128 mm 800 mm 1500 mm
40255038 1220 mm 45 ° 9 2558 mm 800 mm 1930 mm
40255040 1220 mm 45 ° 11 3017 mm 800 mm 2360 mm
40255042 1220 mm 45 ° 12 3447 mm 800 mm 2790 mm
40255044 1420 mm 45 ° 14 3877 mm 800 mm 3220 mm
40255046 1420 mm 45 ° 16 4307 mm 800 mm 3650 mm
40255048 1420 mm 45 ° 18 4737 mm 800 mm 4080 mm
40255050 1620 mm 45 ° 20 5167 mm 800 mm 4510 mm
40255054 1420 mm 45 ° 5 1698 mm 1000 mm 1070 mm
40255056 1420 mm 45 ° 7 2128 mm 1000 mm 1500 mm
40255058 1420 mm 45 ° 9 2558 mm 1000 mm 1930 mm
40255060 1420 mm 45 ° 11 3017 mm 1000 mm 2360 mm
40255062 1420 mm 45 ° 12 3447 mm 1000 mm 2790 mm
40255064 1420 mm 45 ° 14 3877 mm 1000 mm 3220 mm
40255066 1420 mm 45 ° 16 4307 mm 1000 mm 3650 mm
40255068 1420 mm 45 ° 18 4737 mm 1000 mm 4080 mm
40255070 1620 mm 45 ° 20 5167 mm 1000 mm 4510 mm
40255074 1220 mm 60 ° 5 1453 mm 600 mm 1250 mm
40255076 1420 mm 60 ° 7 1707 mm 600 mm 1750 mm
40255078 1820 mm 60 ° 9 1996 mm 600 mm 2250 mm
40255080 1620 mm 60 ° 11 2285 mm 600 mm 2750 mm
40255082 1620 mm 60 ° 13 2607 mm 600 mm 3250 mm
40255084 1620 mm 60 ° 15 2896 mm 600 mm 3750 mm
40255086 1620 mm 60 ° 17 3185 mm 600 mm 4250 mm
40255094 1220 mm 60 ° 5 1453 mm 800 mm 1250 mm
40255096 1220 mm 60 ° 7 1707 mm 800 mm 1750 mm
40255098 1620 mm 60 ° 9 1996 mm 800 mm 2250 mm
40255100 1420 mm 60 ° 11 2285 mm 800 mm 2750 mm
40255102 1420 mm 60 ° 12 2607 mm 800 mm 3250 mm
40255104 1420 mm 60 ° 15 2896 mm 800 mm 3750 mm
40255106 1620 mm 60 ° 17 3185 mm 800 mm 4250 mm
40255114 1420 mm 60 ° 5 1453 mm 1000 mm 1250 mm
40255116 1420 mm 60 ° 7 1707 mm 1000 mm 1750 mm
40255118 1420 mm 60 ° 9 1820 mm 1000 mm 2250 mm
40255120 1420 mm 60 ° 11 2285 mm 1000 mm 2750 mm
40255122 1420 mm 60 ° 13 2607 mm 1000 mm 3250 mm
40255124 1620 mm 60 ° 14 3009 mm 1000 mm 3750 mm
40255126 1620 mm 60 ° 17 3298 mm 1000 mm 4250 mm
