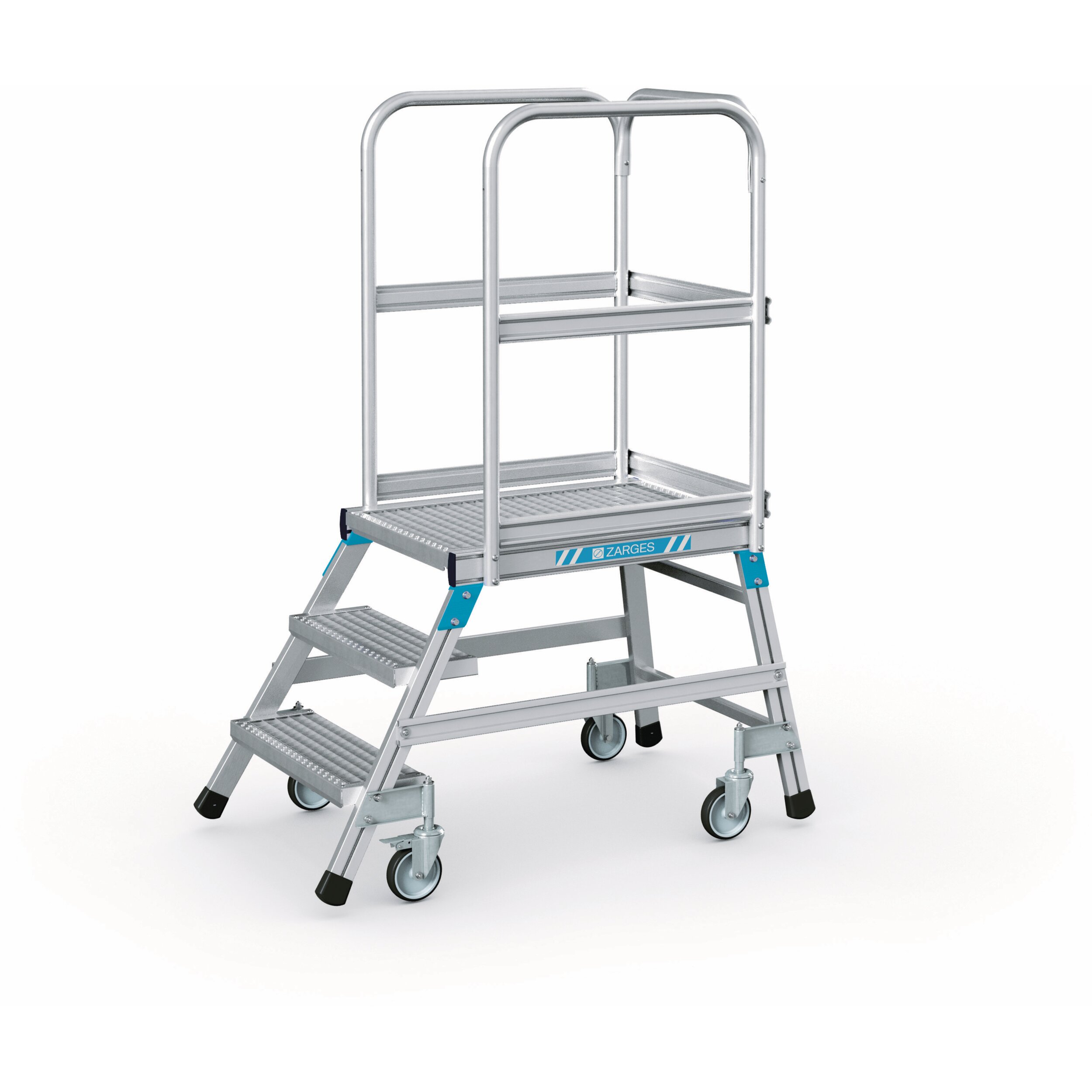

Mobile access steps with platform, single-sided access, with steel open-grid treads and platform

SKU: 41951

Details

The flexible access solution with open-grid treads for improved non-slip performance in wet-room applications.

The flexible access solution with open-grid treads for improved non-slip performance in wet-room applications.
Quick and easy assembly thanks to the new connecting elements.
Mobile and ready for operation in no time with four sprung swivel castors (two of each with brakes).
Maximum safety through platform railing at a height of 1.00 m on three sides.
Comfortable ascent through treads with a depth of 200 mm.
Spacious platform, 600 x 800 mm.
Maximum loading capacity 150 kg.

More Information
Standards	EN 131-7
Warranty	10 years
Platform length	800 mm
Platform height	0.72 m
Platform width	600 mm
Material	Aluminum/steel, galvanised
Load capacity	max. 150 kg
Guardrail height	1000 mm
Base	0,77 m × 1,27 m
Coating	natural
Connection Stile-Rung	welded
Tread depth	200 mm
Transport dimensions	1.150 mm × 780 mm × 350 mm
Working height	2.7 m
Number of rungs, incl. platform	3
Pitch rung/tread	240 mm
Type rung/tread	Open-grid surface
Weight	41.5 kg
Length base area	0.77 m
Width base area	1.27 m
Number of rungs / treads	3

Variants

Order number	Base	Number of rungs, incl. platform	Platform height	Transport dimensions	Weight	Working height
41951	0,77 m × 1,27 m	3	0.72 m	1.150 mm × 780 mm × 350 mm	41.5 kg	2.7 m
41952	0,82 m × 1,45 m	4	0.96 m	1.350 mm × 830 mm × 410 mm	47.5 kg	2.95 m
41953	0,87 m × 1,63 m	5	1.2 m	1.500 mm × 890 mm × 410 mm	53.6 kg	3.2 m
41954	0,93 m × 1,81 m	6	1.44 m	1.820 mm × 930 mm × 350 mm	59.7 kg	3.45 m
41955	0,98 m × 1,99 m	7	1.68 m	1.920 mm × 990 mm × 350 mm	66 kg	3.7 m
41956	1,03 m × 2,17 m	8	1.92 m	2.220 mm × 1.130 mm × 350 mm	72.9 kg	3.9 m
