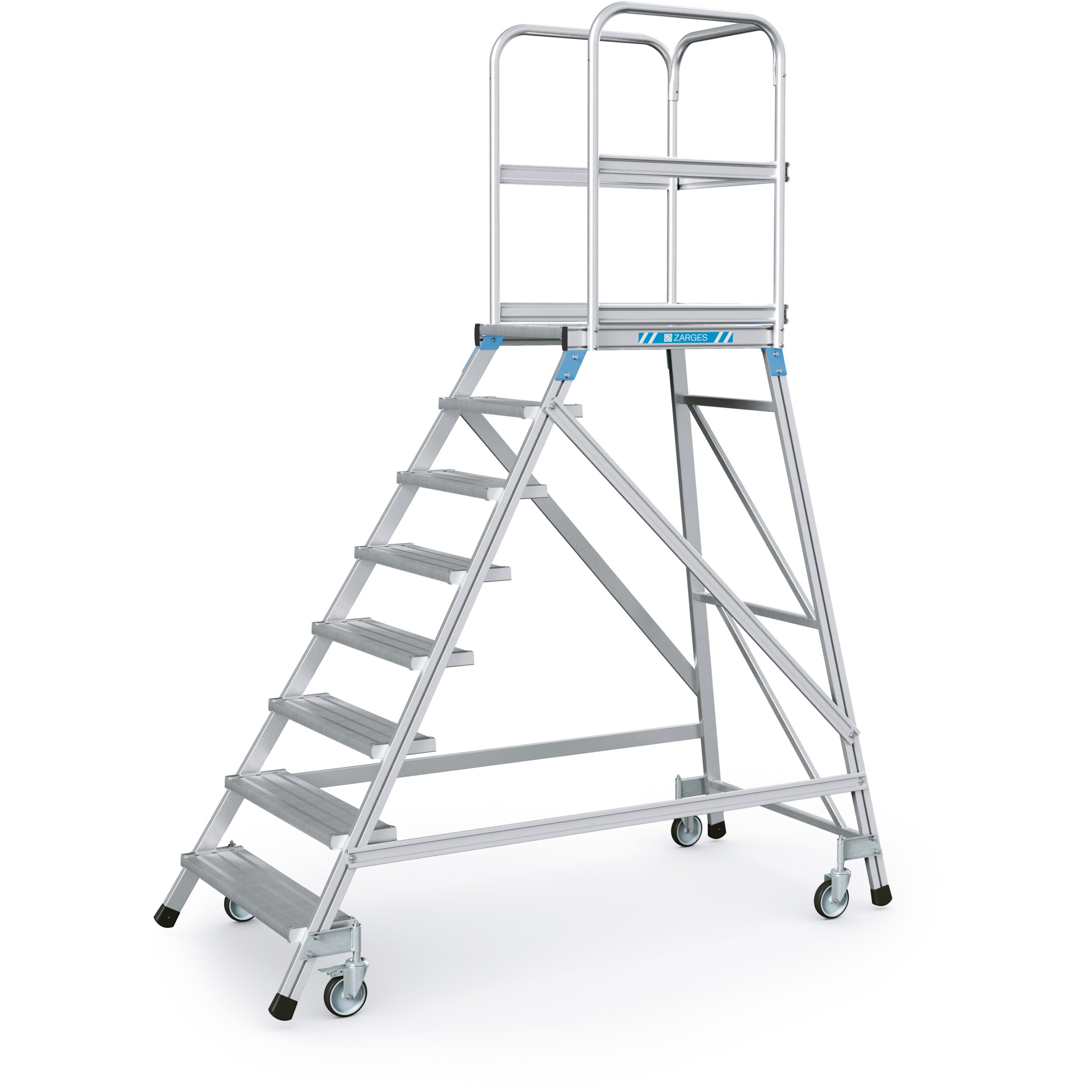

Mobile access steps with platform, single-sided access, with light-alloy treads and platform

SKU: 41976

Details

Can be released safely and quickly for flexibility while working: comfortable ascent, four sprung castors for stability and easy handling.

Can be released safely and quickly for flexibility while working: comfortable ascent, four sprung castors for stability and easy handling.
Quick and easy assembly thanks to the new connecting elements.

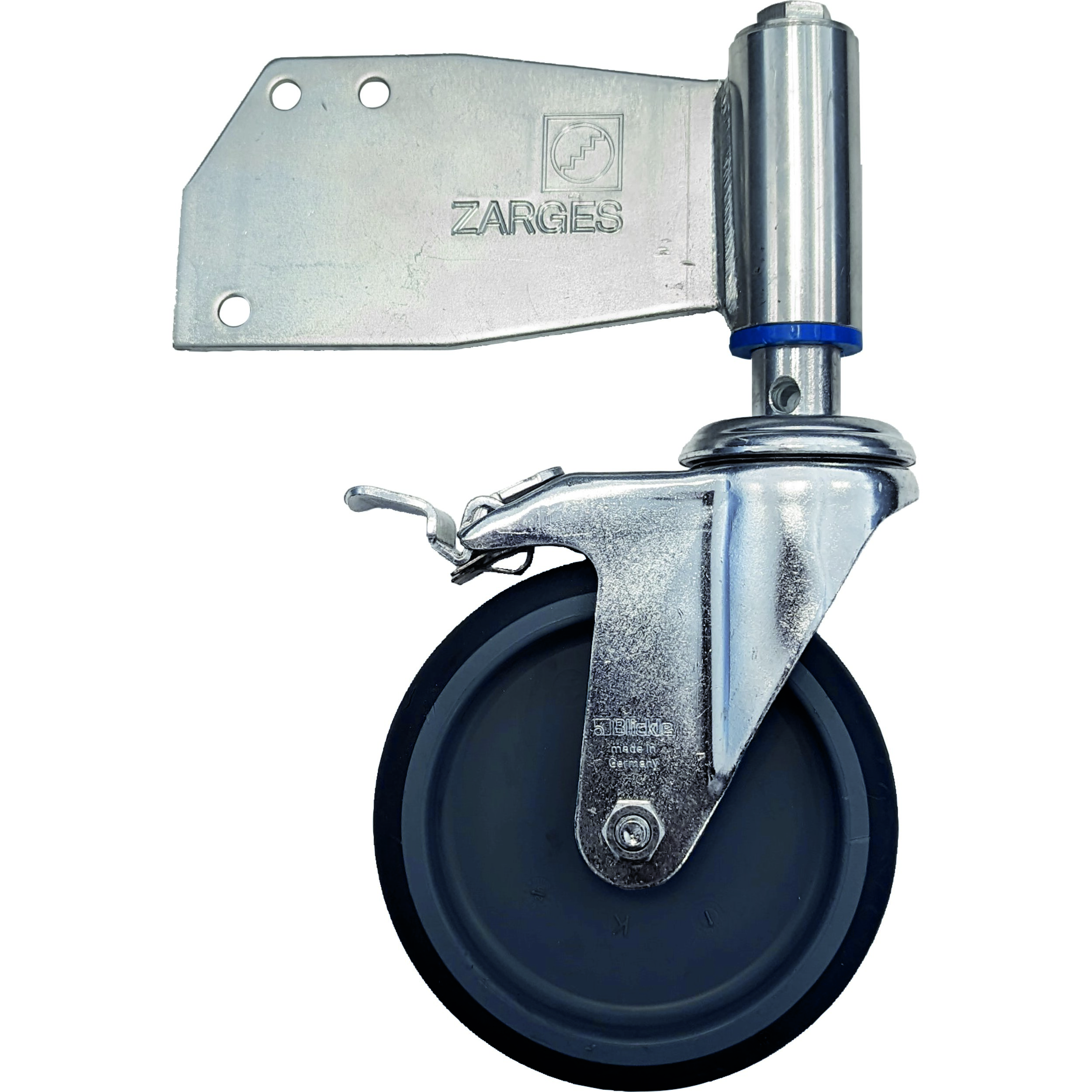

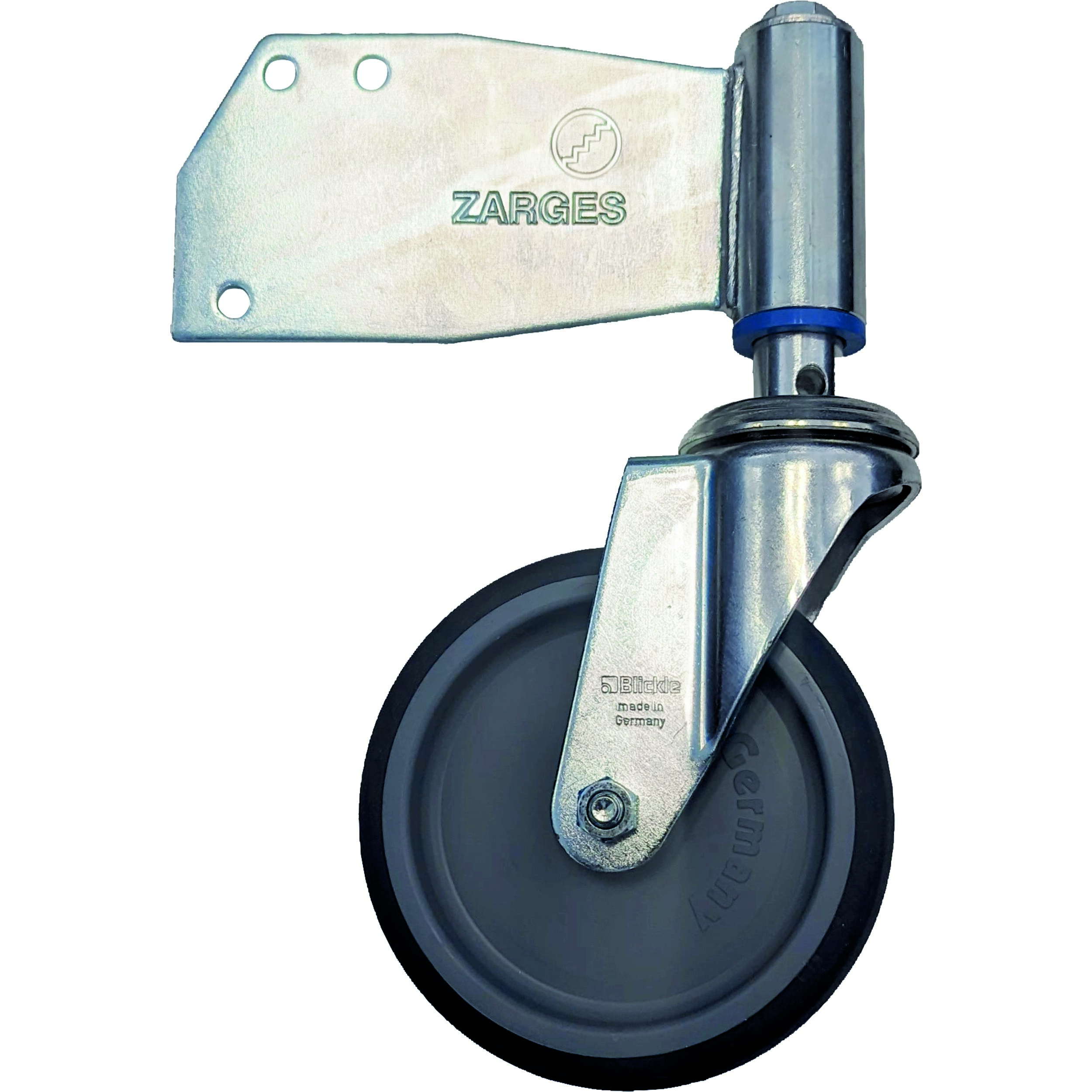

Mobile and ready for operation in no time with four sprung swivel castors (two of each with brakes).

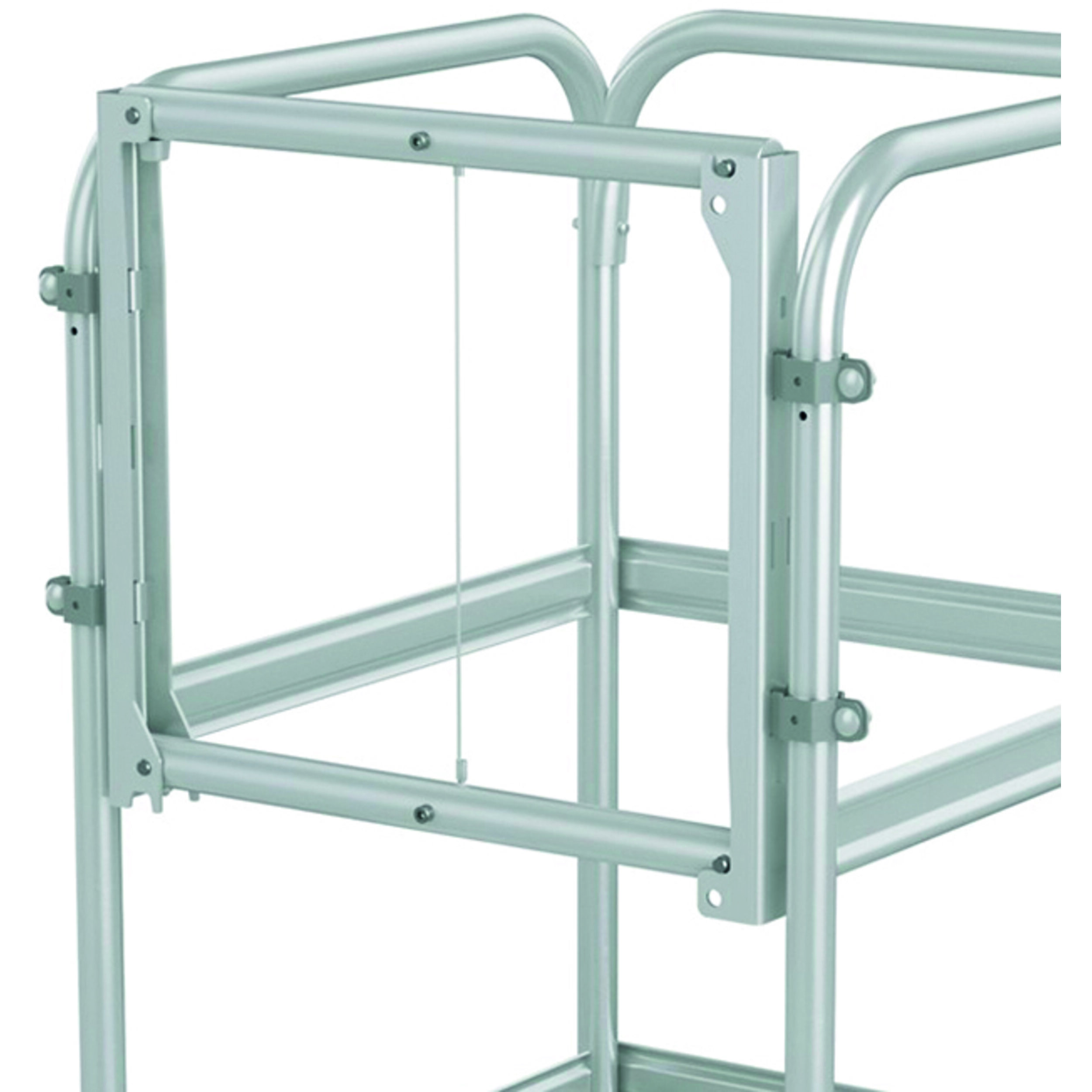

Maximum safety through platform railing at a height of 1.00 m on three sides.
Comfortable ascent through treads with a depth of 200 mm.
Spacious platform, 600 x 800 mm.
Maximum loading capacity 150 kg.

More Information
Standards	EN 131-7
Warranty	10 years
Platform length	800 mm
Platform height	1.92 m
Platform width	600 mm
Material	Aluminium
Load capacity	max. 150 kg
Guardrail height	1000 mm
Base	1,03 m × 2,17 m
Coating	natural
Connection Stile-Rung	welded
Tread depth	200 mm
Transport dimensions	2.220 mm × 1.030 mm × 360 mm
Working height	3.9 m
Number of rungs, incl. platform	8
Pitch rung/tread	240 mm
Type rung/tread	serrated
Weight	45.6 kg
Length base area	1.03 m
Width base area	2.17 m
Number of rungs / treads	8

Variants

Order number	Base	Number of rungs, incl. platform	Platform height	Transport dimensions	Weight	Working height
41971	0,77 m × 1,27 m	3	0.72 m	1.180 mm × 820 mm × 330 mm	28.5 kg	2.7 m
41972	0,82 m × 1,45 m	4	0.96 m	1.350 mm × 820 mm × 400 mm	31.8 kg	2.95 m
41973	0,87 m × 1,63 m	5	1.2 m	1.380 mm × 950 mm × 420 mm	35 kg	3.2 m
41974	0,93 m × 1,81 m	6	1.44 m	1.850 mm × 1.000 mm × 330 mm	38.4 kg	3.45 m
41975	0,98 m × 1,99 m	7	1.68 m	1.920 mm × 1.060 mm × 410 mm	41.8 kg	3.7 m
41976	1,03 m × 2,17 m	8	1.92 m	2.220 mm × 1.030 mm × 360 mm	45.6 kg	3.9 m
