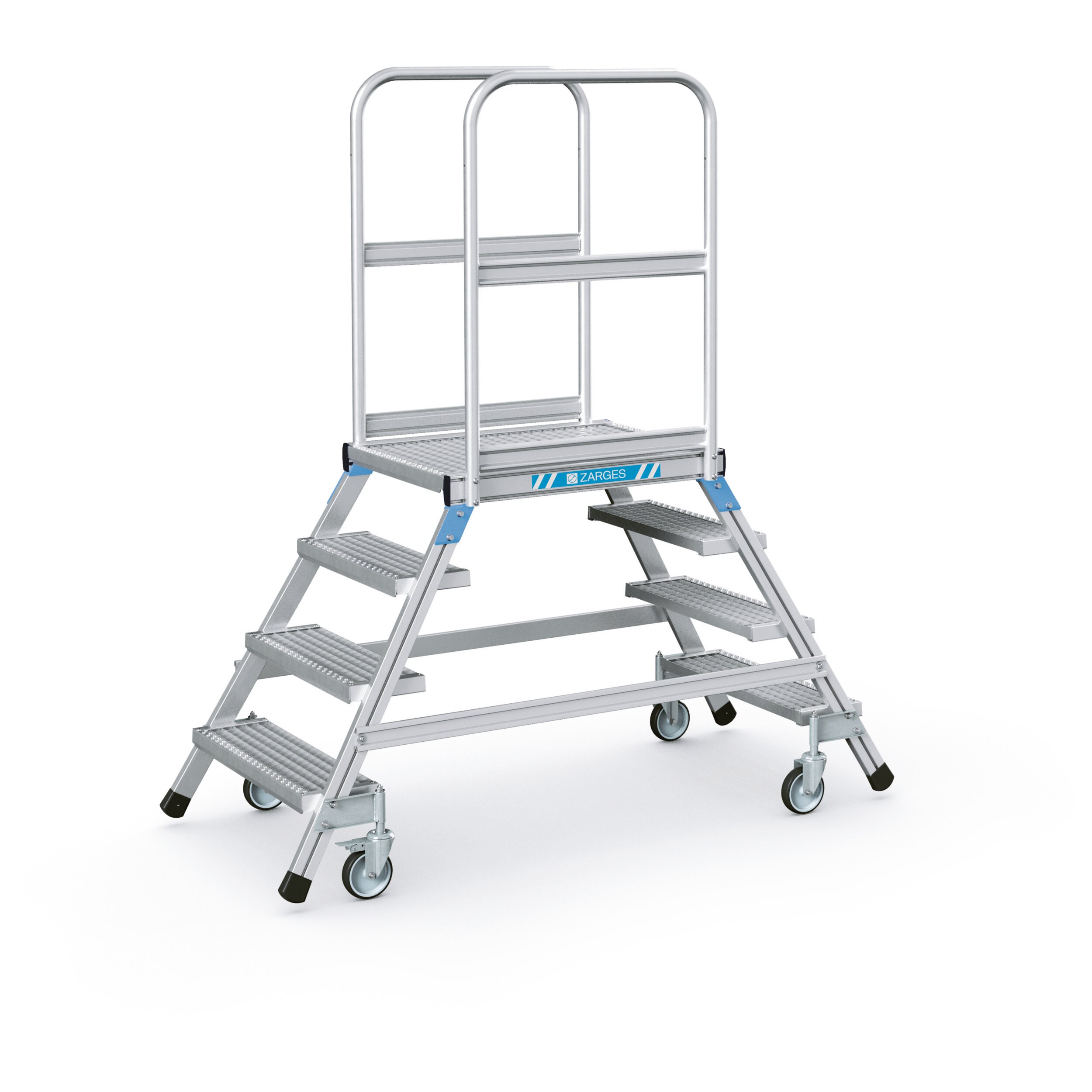

Mobile access steps with platform, double-sided access, with steel open-grid treads and platform

SKU: 41962

Details

The flexible solution for wet-room applications, with open-grid treads for improved non-slip performance.

The flexible solution for wet-room applications, with open-grid treads for improved non-slip performance.
Quick and easy assembly thanks to the new connecting elements.
Mobile and ready for operation in no time with four sprung swivel castors (two of each with brakes).
Maximum safety through double-sided platform railing at a height of 1.00 m.
Comfortable ascent through treads with a depth of 200 mm.
Spacious platform, 600 x 800 mm.
Maximum loading capacity 150 kg.

More Information
Standards	EN 131-7
Warranty	10 years
Platform length	800 mm
Platform height	0.96 m
Platform width	600 mm
Material	Aluminum/steel, galvanised
Load capacity	max. 150 kg
Guardrail height	1000 mm
Base	0,82 m × 1,79 m
Coating	natural
Connection Stile-Rung	welded
Tread depth	200 mm
Transport dimensions	1.960 mm × 830 mm × 300 mm
Working height	2.95 m
Number ladderparts	2
Number of rungs, incl. platform	2 × 4
Number of treads	4
Pitch rung/tread	240 mm
Type rung/tread	Open-grid surface
Weight	59.2 kg
Length base area	0.82 m
Width base area	1.79 m
Number of rungs / treads	4

Order number	Base	Number of rungs, incl. platform	Number of treads	Platform height	Transport dimensions	Weight	Working height
41962	0,82 m × 1,79 m	2 × 4	4	0.96 m	1.960 mm × 830 mm × 300 mm	59.2 kg	2.95 m
41963	0,87 m × 2,06 m	2 × 5	5	1.2 m	1.850 mm × 890 mm × 460 mm	70.1 kg	3.2 m
41964	0,93 m × 2,34 m	2 × 6	6	1.44 m	2.140 mm × 930 mm × 380 mm	80.7 kg	3.45 m
