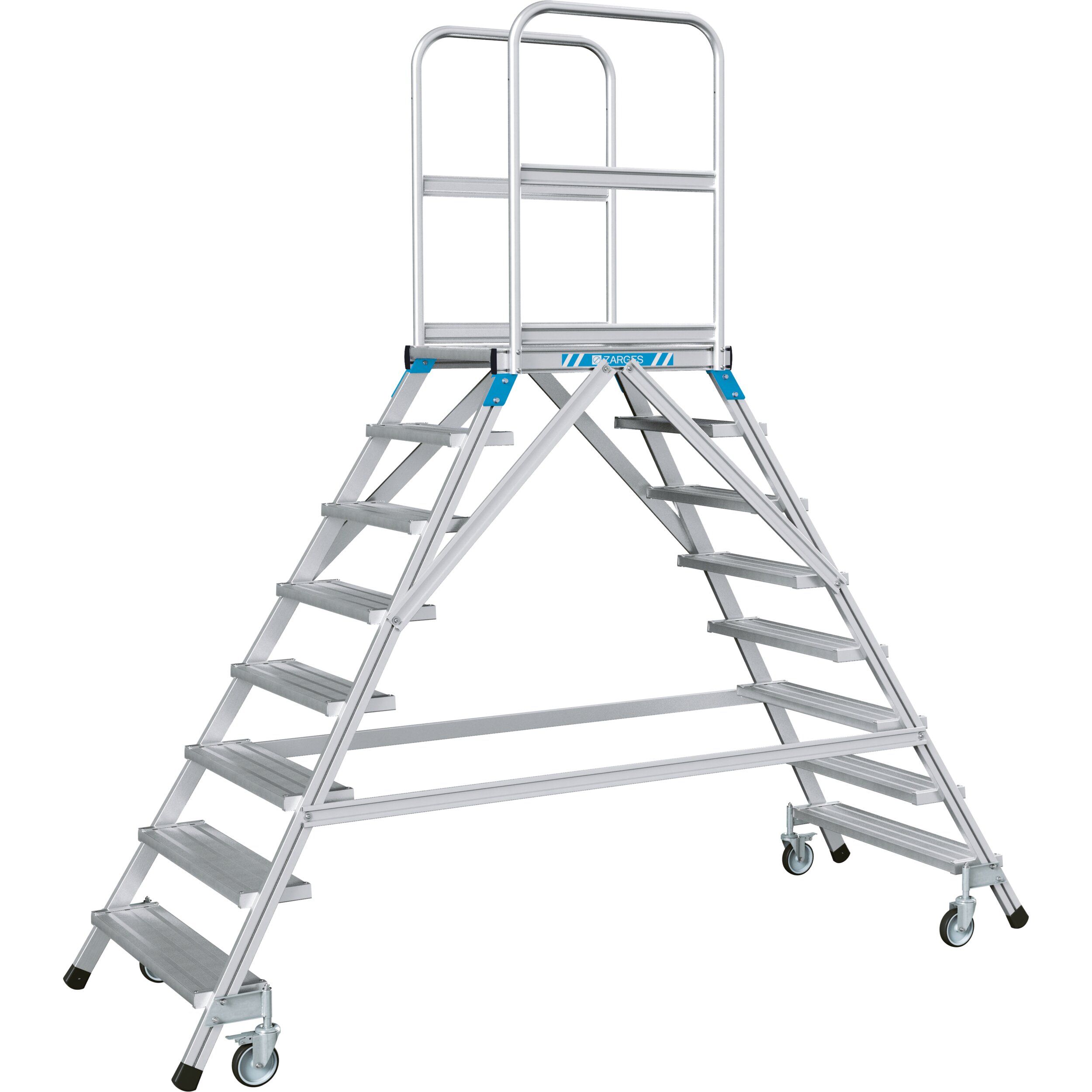

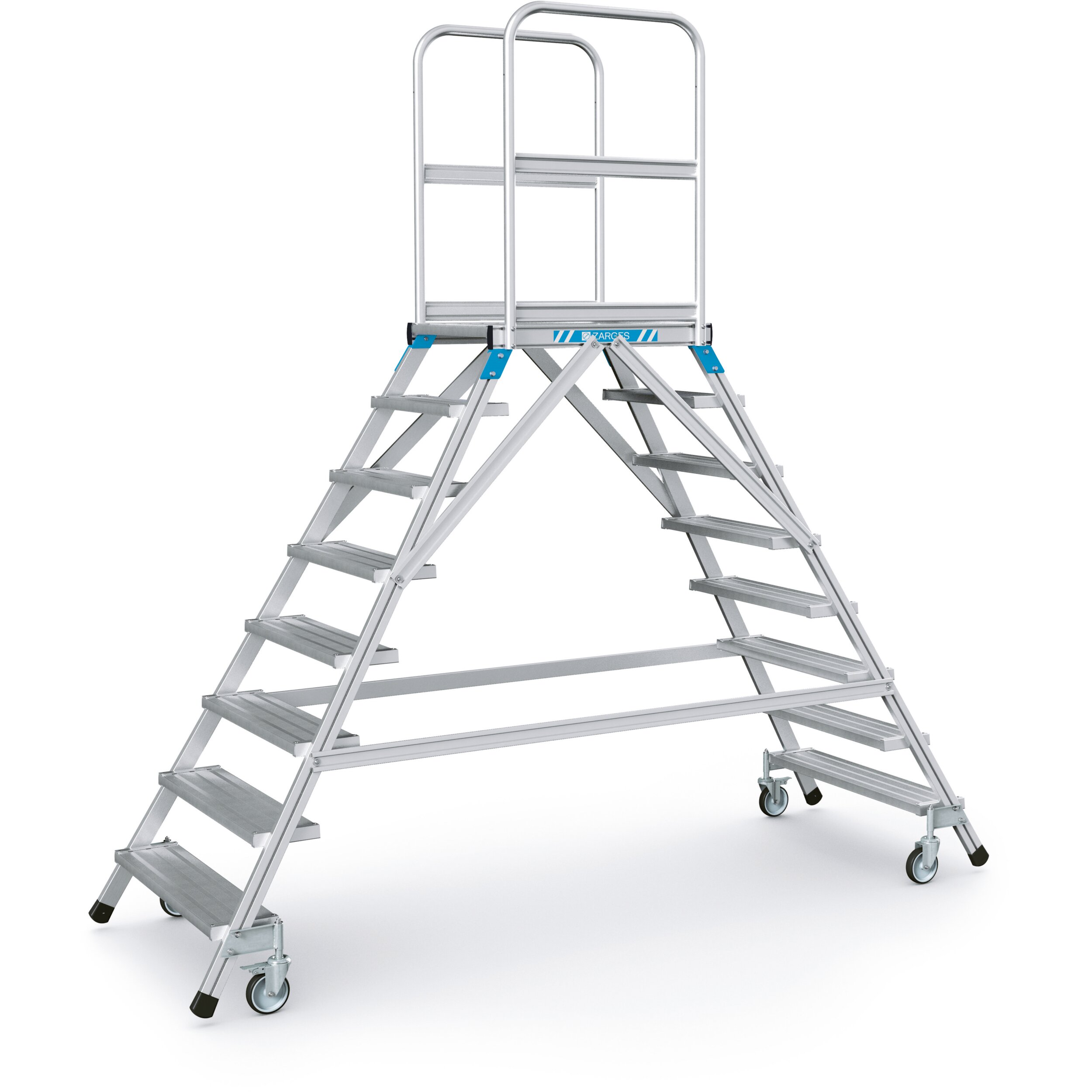

Mobile access steps with platform, double-sided access, with light-alloy treads and platform

SKU: 41986

Details

Maximum flexibility while ascending and descending, larger working area on the treads and four sprung castors for a high degree of mobility and stability.

  • Maximum flexibility while ascending and descending, larger working area on the treads and four sprung castors for a high degree of mobility and stability.
  • Quick and easy assembly thanks to the new connecting elements.
  • Mobile and ready for operation in no time with four sprung swivel castors (two of each with brakes).
  • Maximum safety through double-sided platform railing at a height of 1.00 m.
  • Comfortable ascent through treads with a depth of 200 mm.
  • Spacious platform, 600 x 800 mm.
  • Maximum loading capacity 150 kg.

Hints and special features

  • Double-sided handrail in accordance with EN 131-7 on access optional.
  • Complies with EN 131-7

More Information

More Information
Standards EN 131-7
Warranty 10 years
Platform length 800 mm
Platform height 1.92 m
Platform width 600 mm
Material Aluminium
Load capacity max. 150 kg
Guardrail height 1000 mm
Base 1,03 m × 2,9 m
Coating natural
Connection Stile-Rung welded
Tread depth 200 mm
Transport dimensions 2.820 mm × 1.120 mm × 410 mm
Working height 3.9 m
Number ladderparts 2
Number of rungs, incl. platform 2 × 8
Number of treads 8
Pitch rung/tread 240 mm
Type rung/tread serrated
Weight 57.5 kg
Length base area 1.03 m
Width base area 2.9 m
Number of rungs / treads 8

Variants

Order number Base Number of rungs, incl. platform Number of treads Platform height Transport dimensions Weight Working height
41981 0,77 m × 1,51 m 2 × 3 3 0.72 m 1.300 mm × 820 mm × 470 mm 31.2 kg 2.7 m
41982 0,82 m × 1,79 m 2 × 4 4 0.96 m 1.980 mm × 880 mm × 300 mm 36 kg 2.95 m
41983 0,87 m × 2,06 m 2 × 5 5 1.2 m 1.850 mm × 940 mm × 440 mm 41 kg 3.2 m
41984 0,93 m × 2,34 m 2 × 6 6 1.44 m 2.200 mm × 1.020 mm × 410 mm 46.2 kg 3.45 m
41985 0,98 m × 2,62 m 2 × 7 7 1.68 m 2.250 mm × 1.060 mm × 410 mm 51.7 kg 3.7 m
41986 1,03 m × 2,9 m 2 × 8 8 1.92 m 2.820 mm × 1.120 mm × 410 mm 57.5 kg 3.9 m
