Meistertritt S

SKU: 40479

Details

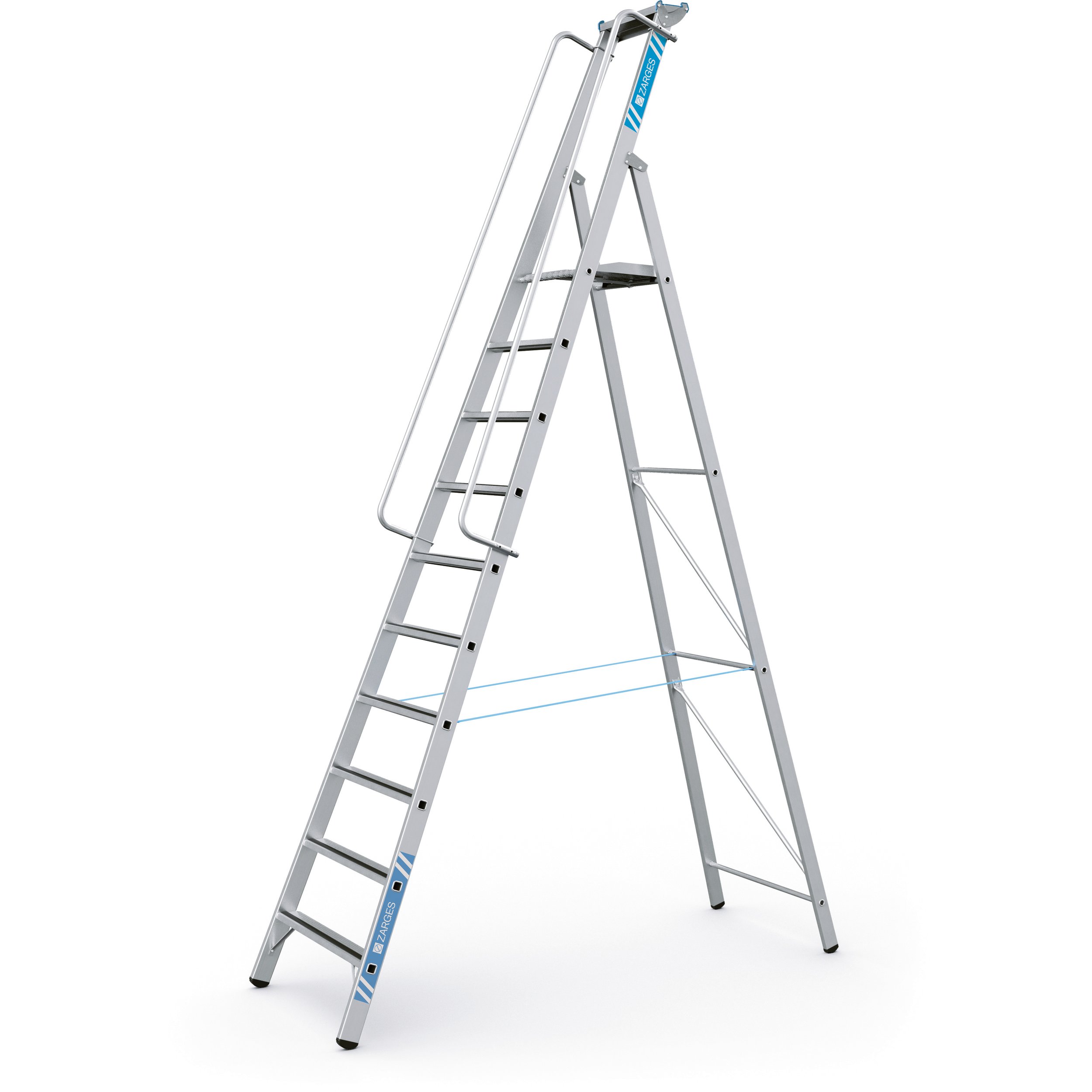

Safe standing on very large platform, non-slip ascent and descent thanks to Safer Step Technology. So-called “lightweight platform ladder”.

  • Safe standing on very large platform, non-slip ascent and descent thanks to Safer Step Technology. So-called “lightweight platform ladder”.
  • Particularly large work platform with ribbed aluminium sheet covering.
  • With two handrails as standard for safe access.
  • 80 mm deep steps with ZARGES Safer Step Technology for fatigue-free standing.
  • Particularly large-surface work platform with ribbed aluminium sheet lining (approx. 380 x 390 mm).
  • Practical aluminium storage tray for small items and tools.
  • High-strength perlon belts prevent splay.
  • Height of the retaining bracket 1,000 mm.
  • Treads and stiles made from extruded aluminium sections.

Hints and special features

  • Mobile version from 5 steps possible.
  • Complies with EN 131 Professional.

More Information

More Information
Platform height 2.59 m
Platform length 380 mm
Warranty 10 years
Standards EN 131 professional
Platform width 390 mm
Material Aluminium
Load capacity max. 150 kg
Anti splay Belt strap
Base 2,11 m × 0,8 m
Coating natural
Connection Stile-Rung flanged
Tread depth 80 mm
Transport dimensions approx. 3.880 mm × 800 mm × 155 mm
Vertical ladder height 3.59 m
Stile depth steps/back stay 73mm / 58mm
Working height 4.6 m
Overall length 3.88 m
Tray Aluminium
Number of rungs, incl. platform 10
Pitch rung/tread 265 mm
Producttype Stepladder with flanged treads
Type rung/tread Safer Step
Weight 20.3 kg
Overall base width 0.8 m
Stile depth 73 mm
Stile depth 58 mm
Number of rungs / treads 10

Variants

Order number Anti splay Base Number of rungs, incl. platform Overall base width Overall length Platform height Transport dimensions Vertical ladder height Weight Working height
41632 0,91 m × 0,59 m 3 0.59 m 1.92 m 0.77 m 1.920 mm × 590 mm × 155 mm 1.77 m 9.5 kg 2.8 m
41633 1,08 m × 0,62 m 4 0.62 m 2.2 m 1.03 m 2.200 mm × 620 mm × 155 mm 2.03 m 10.7 kg 3 m
41634 Belt strap 1,26 m × 0,65 m 5 0.65 m 2.48 m 1.29 m 2.480 mm × 650 mm × 155 mm 2.29 m 12.1 kg 3.3 m
40477 Belt strap 1,43 m × 0,68 m 6 0.68 m 2.75 m 1.55 m 2.750 mm × 680 mm × 155 mm 2.55 m 13.8 kg 3.55 m
40478 Belt strap 1,76 m × 0,74 m 8 0.74 m 3.32 m 2.07 m 3.320 mm × 740 mm × 155 mm 3.07 m 16.7 kg 4.1 m
40479 Belt strap 2,11 m × 0,8 m 10 0.8 m 3.88 m 2.59 m approx. 3.880 mm × 800 mm × 155 mm 3.59 m 20.3 kg 4.6 m
41635 Belt strap 2,46 m × 0,86 m 12 0.86 m 4.44 m 3.11 m 4.440 mm × 860 mm × 155 mm 4.11 m 23.3 kg 5.1 m
