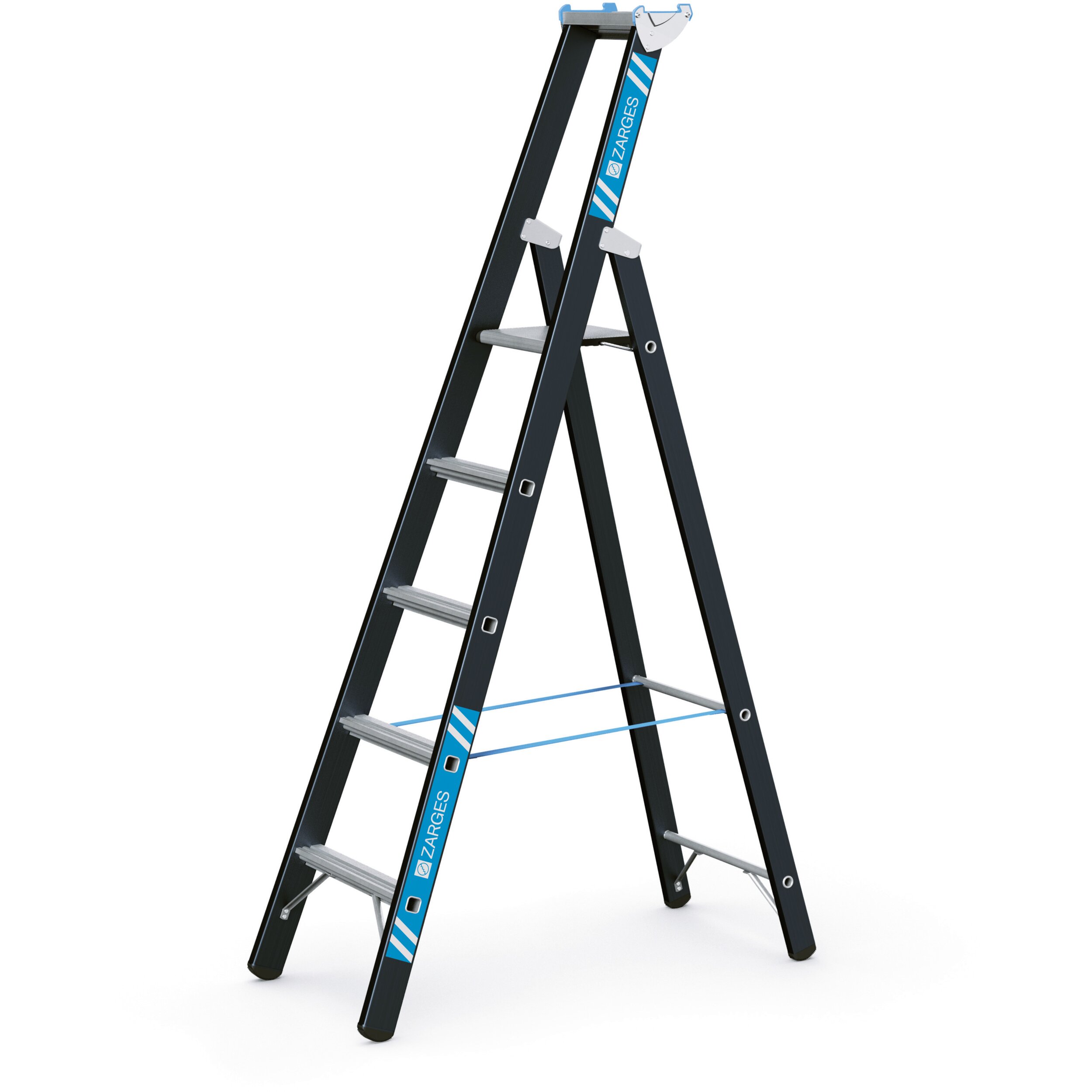

Megastep S

SKU: 41147

Details

The strongest of all our ladders: high load capacity and modern design for the most exacting requirements.

  • The strongest of all our ladders: high load capacity and modern design for the most exacting requirements.
  • Platform that allows personnel to stand safely and comfortably even when working for extended periods.
  • Practical tray with plenty of space for tools and small items.
  • Max. load 250 kg.
  • Wide aluminium alloy rungs, 60 mm deep, with non-slip ribbing.
  • Black, wear-resistant anodised stiles.
  • Large standing platform (250 x 250 mm) made from extruded aluminium sections for safe and comfortable standing even when working for long periods.
  • Practical aluminium storage tray for small items and tools.

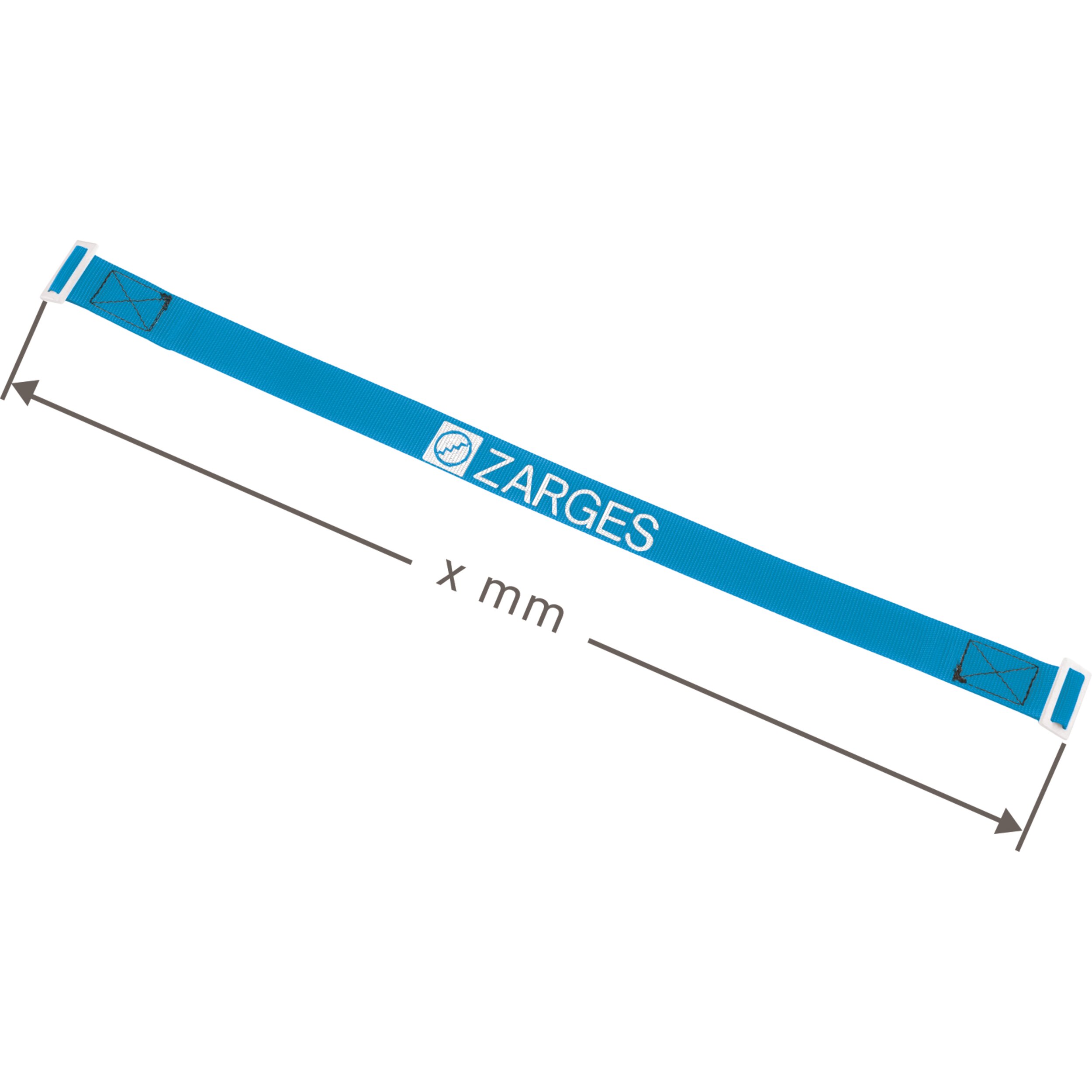

  • High-strength perlon belts prevent splay.
  • Replaceable 2-component plastic end caps ensure positioning without risk of slipping and at the same time provide firm seating in the stile.

Hints and special features

  • Complies with EN 131 Professional.

More Information

More Information
Platform height 1.33 m
Platform length 250 mm
Warranty 10 years
Standards EN 131 professional
Platform width 250 mm
Material Aluminium
Load capacity max. 250 kg
Anti splay Belt strap
Base 1,1 m × 0,5 m
Coating anodised
Connection Stile-Rung flanged
Tread depth 60 mm
Transport dimensions 2.155 mm × 505 mm × 150 mm
Stile depth steps/back stay 73mm / 58mm
Working height 3.35 m
Overall length 2.15 m
Tray Aluminium
No. of rungs incl. platform 5
Pitch rung/tread 265 mm
Producttype Flanged stepladder with rungs
Type rung/tread SL Step
Weight 8 kg
Overall base width 0.5 m
Stile depth 73 mm
Stile depth 58 mm
Number of rungs / treads 5

Variants

Order number Anti splay Base No. of rungs incl. platform Overall base width Overall length Platform height Transport dimensions Weight Working height
41145 0,76 m × 0,44 m 3 0.44 m 1.59 m 0.8 m 1.595 mm × 445 mm × 150 mm 6.2 kg 2.8 m
41146 0,93 m × 0,47 m 4 0.47 m 1.87 m 1.06 m 1.875 mm × 475 mm × 150 mm 7.3 kg 3.1 m
41147 Belt strap 1,1 m × 0,5 m 5 0.5 m 2.15 m 1.33 m 2.155 mm × 505 mm × 150 mm 8 kg 3.35 m
41148 Belt strap 1,27 m × 0,53 m 6 0.53 m 2.43 m 1.59 m 2.435 mm × 535 mm × 150 mm 8.6 kg 3.6 m
41149 Belt strap 1,61 m × 0,59 m 8 0.59 m 2.99 m 2.12 m 2.995 mm × 595 mm × 150 mm 9.6 kg 4.15 m
