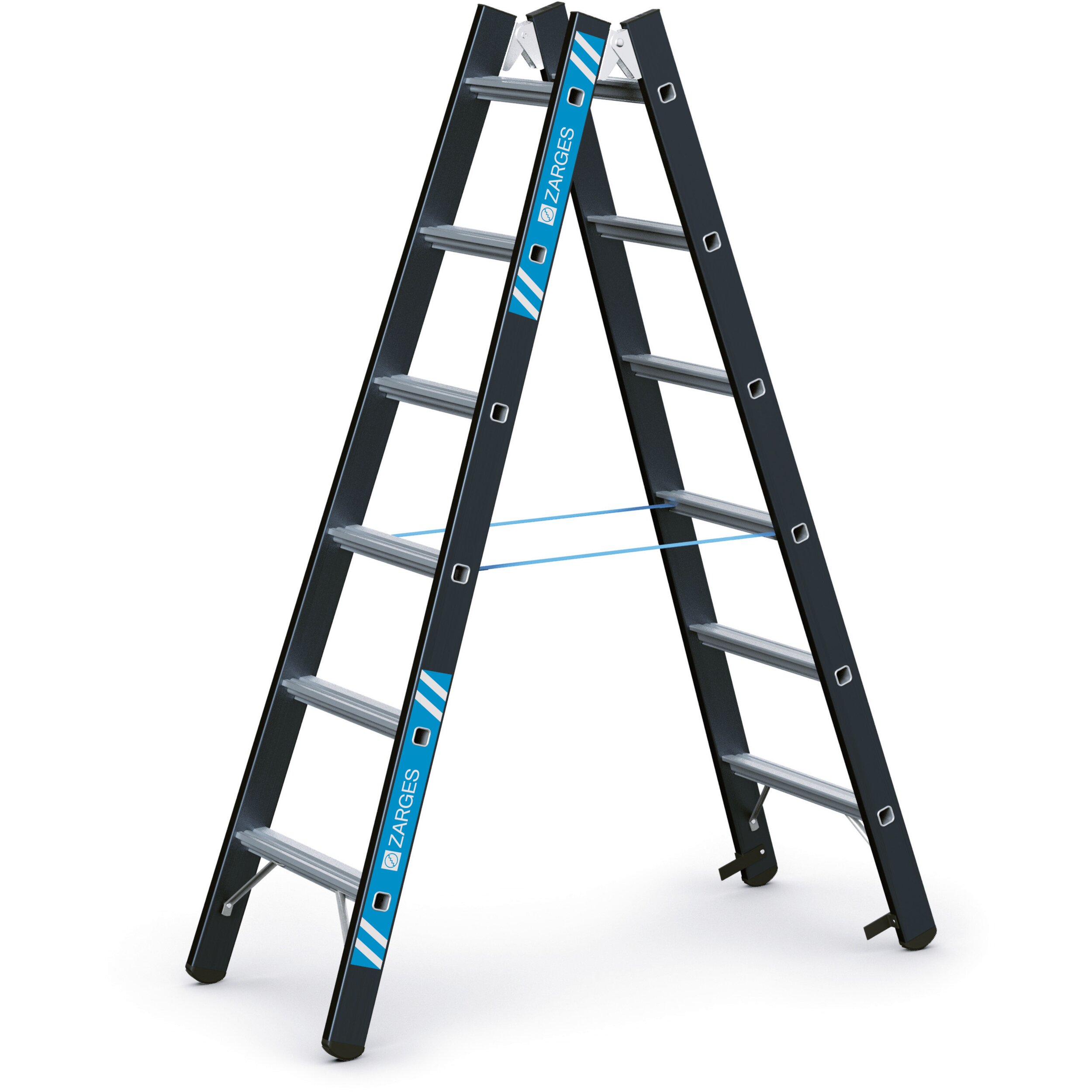

Megastep B

SKU: 41191

Details

Design from both sides: high load capacity with flexible application options and an exclusive design with luxurious black finish.

Design from both sides: high load capacity with flexible application options and an exclusive design with luxurious black finish.
Max. load 250 kg.
Wide aluminium alloy rungs, 60 mm deep, with non-slip ribbing.
Black, wear-resistant anodised stiles.
Strong steel hinges.
High-strength perlon belts prevent splay.
Rungs and stiles made from extruded aluminium sections.
Replaceable 2-component plastic end caps ensure positioning without risk of slipping and at the same time provide firm seating in the stile.

More Information
Standards	EN 131 professional
Warranty	10 years
Number of rungs	2 × 6
Material	Aluminium
Load capacity	max. 250 kg
Anti splay	Belt strap
Base	1,28 m × 0,53 m
Coating	anodised
Connection Stile-Rung	flanged
Tread depth	60 mm
Transport dimensions	1.815 mm × 540 mm × 190 mm
Vertical ladder height	1.73 m
Working height	3 m
Overall length	1.78 m
Number of rungs	6
Pitch rung/tread	265 mm
Producttype	Flanged stepladder with rungs
Type rung/tread	SL Step
Weight	8.9 kg
Overall base width	0.53 m
Stile depth	73 mm
Number of rungs / treads	2 × 6

Order number	Base	Number of rungs	Number of rungs	Overall base width	Overall length	Transport dimensions	Vertical ladder height	Weight	Working height
41189	0,93 m × 0,47 m	4	2 × 4	0.47 m	1.22 m	1.255 mm × 480 mm × 190 mm	1.2 m	6.9 kg	2.5 m
41190	1,1 m × 0,5 m	5	2 × 5	0.5 m	1.5 m	1.535 mm × 510 mm × 190 mm	1.47 m	8 kg	2.75 m
41191	1,28 m × 0,53 m	6	2 × 6	0.53 m	1.78 m	1.815 mm × 540 mm × 190 mm	1.73 m	8.9 kg	3 m
41192	1,62 m × 0,59 m	8	2 × 8	0.59 m	2.34 m	2.375 mm × 600 mm × 190 mm	2.27 m	11.9 kg	3.55 m
