- Elastic stacking elements on housing and lid corners.
- Lid equipped with 4 locking catches.
- Lids stiffened with moulded sections.
- Protection rating IP 65 in accordance with DIN EN 60529 and IEC 34-5/529 as a result of welded casing and lid with all-round seal.
- Wide range of special lids available on request.

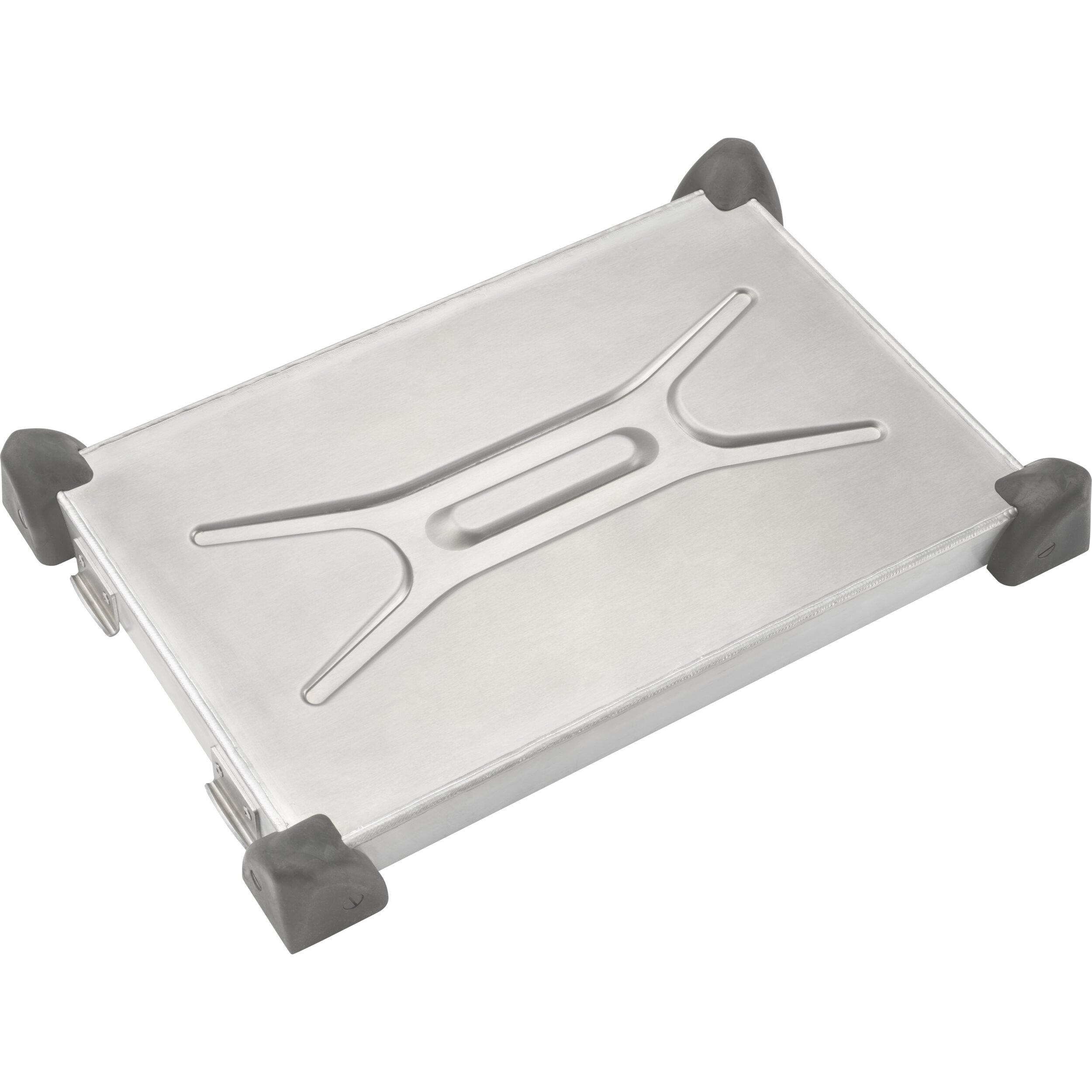

Lid for Mitraset Racklite 19" housing
SKU: 45938
Details
More Information
| Outside dimensions L x W x H | 55 mm × 591 mm × 494 mm |
|---|---|
| Order number | 45938 |
| Height lid | 8 HE/U |
| Weight | 3.1 kg |
Variants
| Order number | Height lid | Outside dimensions L x W x H | Weight |
|---|---|---|---|
| 45933 | 3 HE/U | 55 mm × 591 mm × 271,5 mm | 2.2 kg |
| 45934 | 4 HE/U | 55 mm × 591 mm × 316 mm | 2.4 kg |
| 45935 | 5 HE/U | 55 mm × 591 mm × 360,5 mm | 2.6 kg |
| 45936 | 6 HE/U | 55 mm × 591 mm × 405 mm | 2.7 kg |
| 45937 | 7 HE/U | 55 mm × 591 mm × 449,5 mm | 2.9 kg |
| 45938 | 8 HE/U | 55 mm × 591 mm × 494 mm | 3.1 kg |
| 45939 | 9 HE/U | 55 mm × 591 mm × 538,5 mm | 3.3 kg |
| 45940 | 10 HE/U | 55 mm × 591 mm × 583 mm | 3.4 kg |
| 45941 | 11 HE/U | 55 mm × 591 mm × 627,5 mm | 3.6 kg |
| 45942 | 12 HE/U | 55 mm × 591 mm × 672 mm | 3.8 kg |
