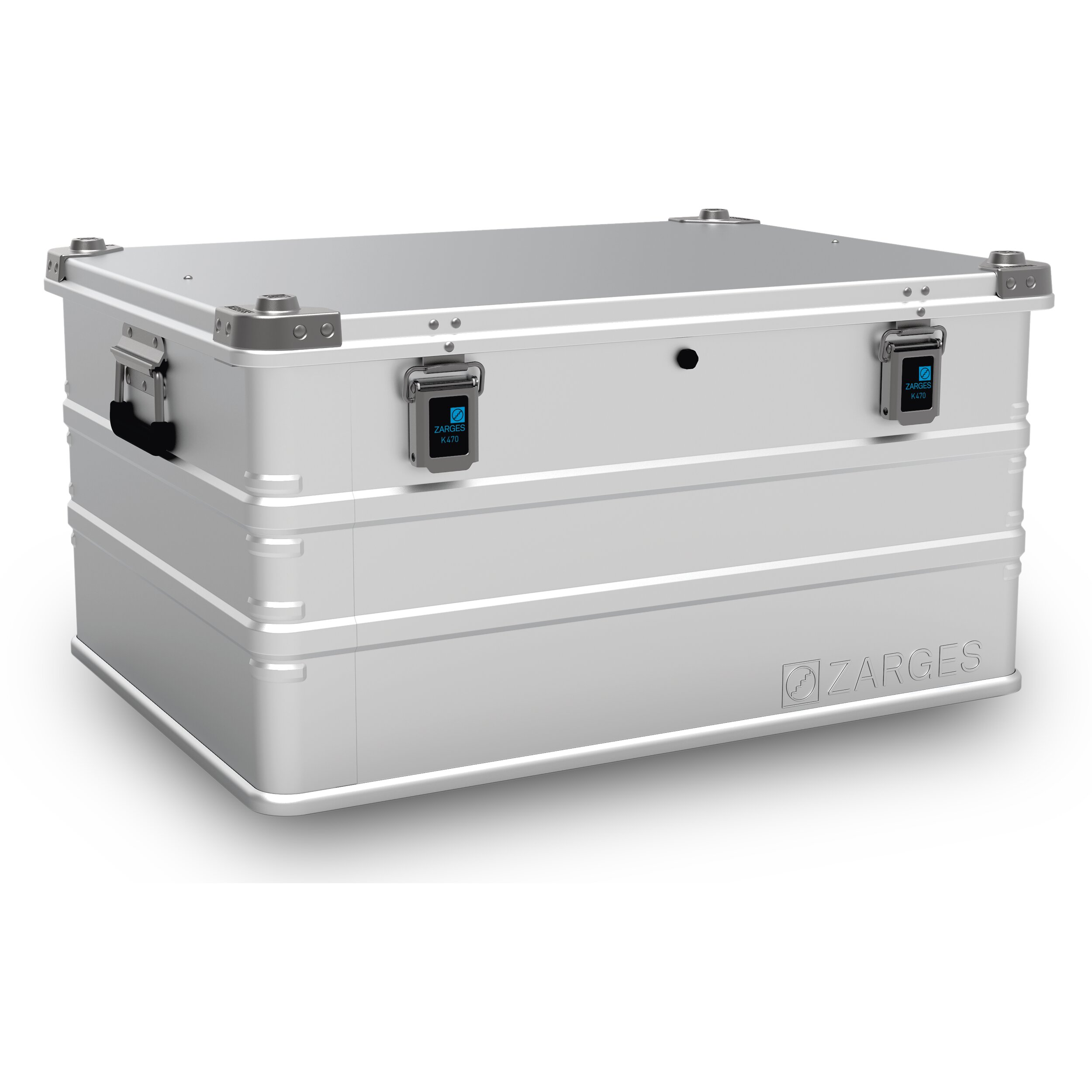

K 470 universal case, IP 65

SKU: 366217

Details

For all applications where extra leak-tightness and greater protection against moisture, water jets and dust is required.

For all applications where extra leak-tightness and greater protection against moisture, water jets and dust is required.
Protection class IP 65 in accordance with EN 60 529 through foamed seal in the lid.
3 standard sizes ex stock, customised versions available on request.
Also available with approval for the transportation of hazardous goods.
Extra thick 1.5-mm sheet metal for all K 470 containers from basic dimensions of 750 x 550 mm.
Automatic pressure compensation membrane
Leak-tightness verified with TÜV SÜD certificate.
Available for most K 470 models.
3 standard sizes available from stock.

UN approval for the transportation of hazardous goods possible at additional charge.
Clearance measurement approx. 30mm (1.2") less than internal dimension (length and width). Special sizes on request.

More Information
Internal dimensions L x W x H	750 mm × 550 mm × 380 mm
Outside dimensions L x W x H	800 mm × 600 mm × 410 mm
Corner beading	✔
Warranty	10 years
Volume	157 l
Material	Aluminium
Protection class	IP65:
Colour of the stacking corners	Natural aluminium
Number of handles	2
Seal	foamed lid seal
Fasteners	Comfort fasteners
Material of the stacking corners	Aluminium
Matching foam lining	43877
Max. gross weight dangerous goods permission	102 kg
Weight	10 kg
Peripheral beads and corner beads	✔
Stacking corners	✔

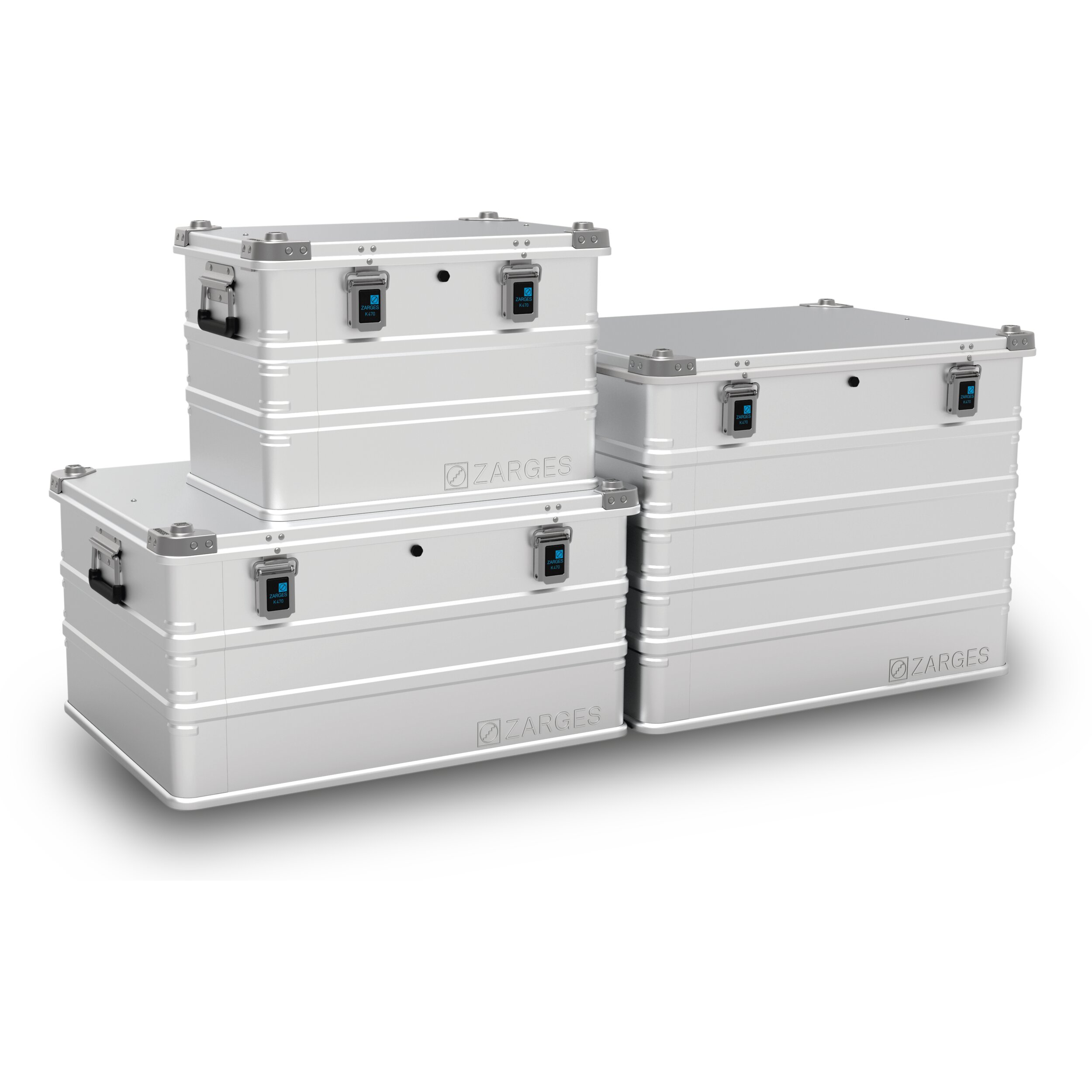

Order number	Internal dimensions L x W x H	Max. gross weight dangerous goods permission	Outside dimensions max. L x W x H	Volume	Weight
366206	550 mm × 350 mm × 380 mm	75 kg	600 mm × 400 mm × 410 mm	73 l	5.3 kg
366217	750 mm × 550 mm × 380 mm	102 kg	800 mm × 600 mm × 410 mm	157 l	10 kg
366218	750 mm × 550 mm × 580 mm	126 kg	800 mm × 600 mm × 610 mm	239 l	12 kg
