K 470 Plus shipping case - hood-type container

SKU: 40505

Contact ZARGES Add to Compare Download Product Datasheet (PDF) Product Documents Spare parts and accessories

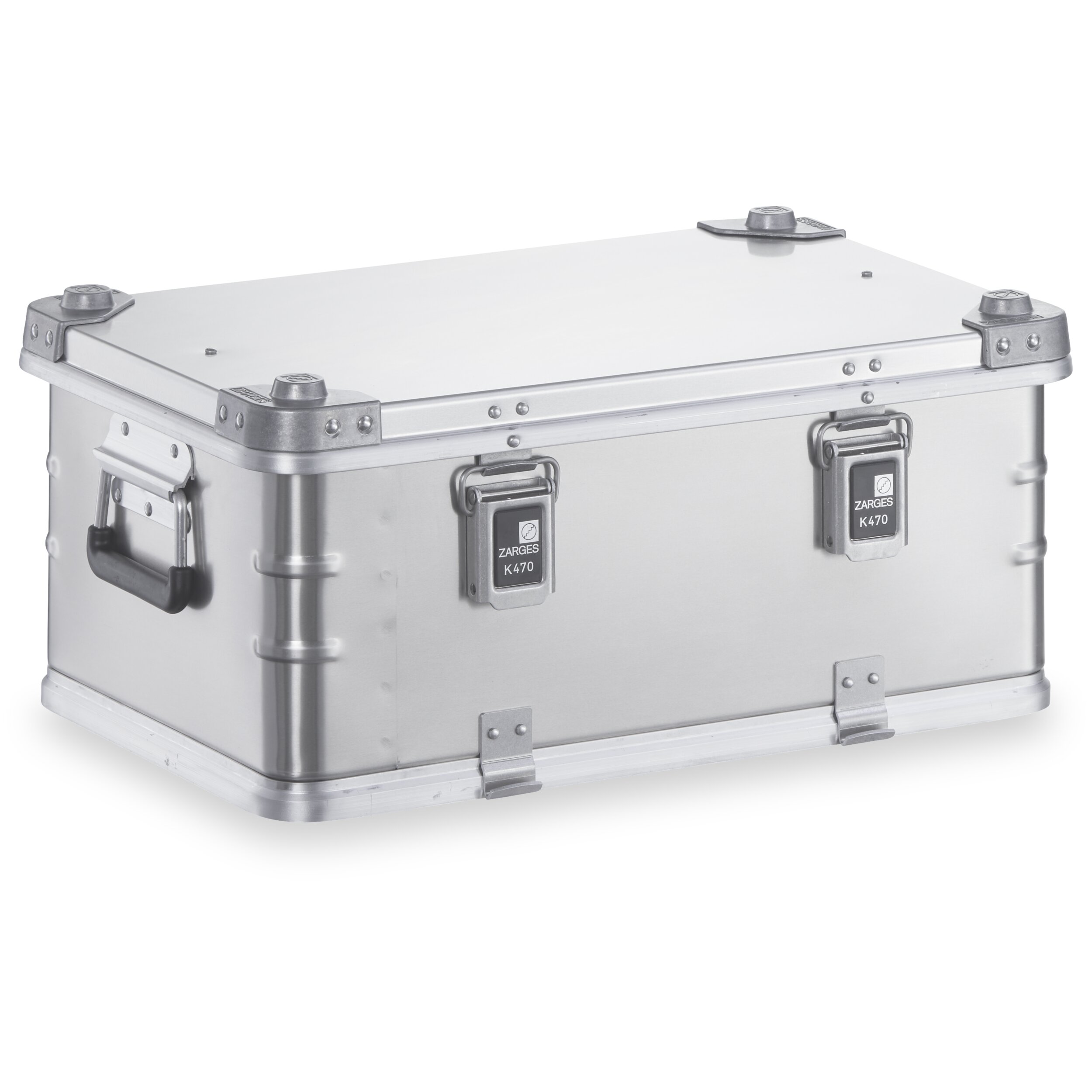

main product photo

Details

With the K 470 Plus, ZARGES is following an innovative packaging concept: a two-part transportation system, comprising an upper and a lower section. This allows you to combine elements of different heights, creating a whole new range of possibilities.

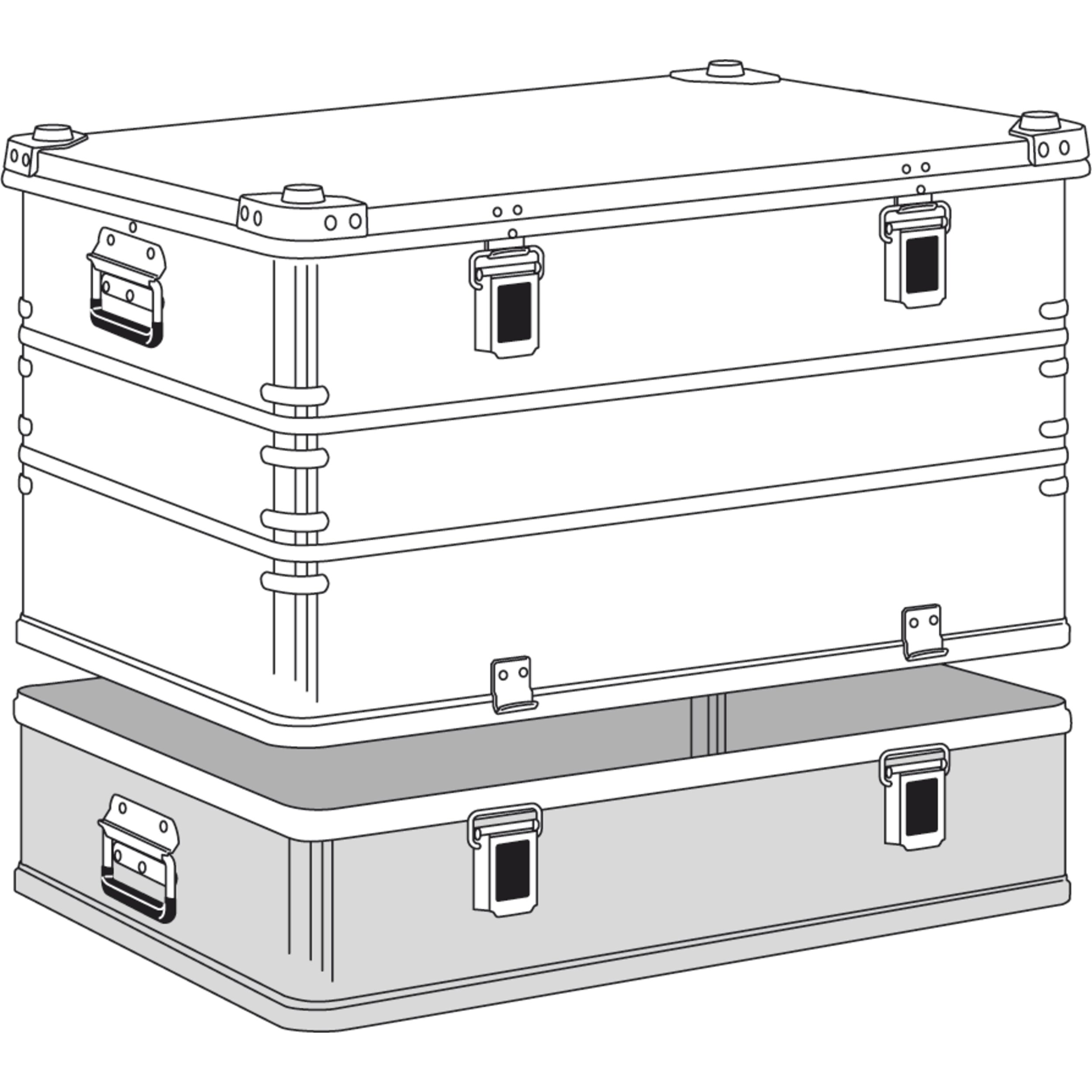

  • A two-part transportation system consisting of a top and bottom section.
  • The bottom part is available in two base dimensions and can be flexibly combined with top sections of different heights.
  • Easy and ergonomic access to the contents via the lid or by removing the top part. This allows the contents to be easily lifted out and devices to be operated whilst they are inside the container.
  • Stackable with products in the K 470 series.
  • Customised versions available on request.
  • Removable top section and lid with peripheral seal.
  • Lid with stainless steel hinges and all-round foamed seal.
  • 2 basic dimensions (550 x 350 mm and 750 x 550 mm) available as standard, special sizes available on request.
  • Depending on height, beading all round and corner beading for extra stability of form.
  • Stackable aluminium universal container.
  • Stacking corners made from diecast aluminium ensure safe stacking.
  • Profile-section joints fully welded.
  • Snap fasteners: can be secured with a plug lock, lead seals, protection against bursting open or a padlock (max. shackle thickness 6 mm).
  • Clearance measurement approx. 30mm (1.2") less than internal dimension (length and width). Special sizes on request.
  • ZARGES Comfort handles for ergonomic handling and loads of up to 50 kg.
  • ZARGES Comfort fastener for ergonomic operation and an extremely long service life.

Hints and special features

  • Top section.
  • Can only be used together with the bottom section.

More Information

More Information
Internal dimensions L x W x H 750 mm × 550 mm × 390 mm
Outside dimensions L x W x H 800 mm × 600 mm × 410 mm
Corner beading ✔
Volume 157 l
Material Aluminium
Colour of the stacking corners Natural aluminium
Handles Sprung drop handles
Seal foamed lid seal
Fasteners Comfort fasteners
Material of the stacking corners Aluminium
Description Top section: Total height 530 and 600 mm respectively
Weight 8.6 kg
Peripheral beads and corner beads ✔
Stacking corners ✔

Variants

Order number Corner beading Description Internal dimensions L x W x H Outside dimensions max. L x W x H Peripheral beading Volume Weight
40500 No Bottom section 550 mm × 350 mm × 150 mm 600 mm × 400 mm × 180 mm No 29 l 2.6 kg
40501 Yes Top section: Total height with bottom section 150 mm: 370 mm 550 mm × 350 mm × 230 mm 600 mm × 400 mm × 250 mm No 42 l 4 kg
40502 Yes Top section: Total height with bottom section 150 mm: 530 mm 550 mm × 350 mm × 390 mm 600 mm × 400 mm × 410 mm Yes 73 l 4.7 kg
40503 No Bottom section 750 mm × 550 mm × 150 mm 800 mm × 600 mm × 180 mm No 62 l 4.8 kg
40504 Yes Bottom section 750 mm × 550 mm × 220 mm 800 mm × 600 mm × 250 mm No 91 l 5.5 kg
40505 Yes Top section: Total height 530 and 600 mm respectively 750 mm × 550 mm × 390 mm 800 mm × 600 mm × 410 mm Yes 157 l 8.6 kg
40506 Yes Top section: Total height 730 and 800 mm respectively 750 mm × 550 mm × 590 mm 800 mm × 600 mm × 610 mm Yes 240 l 10.5 kg
