K 424 XC Mobile Box

SKU: 41812

Contact ZARGES Add to Compare Download Product Datasheet (PDF) Product Documents Spare parts and accessories

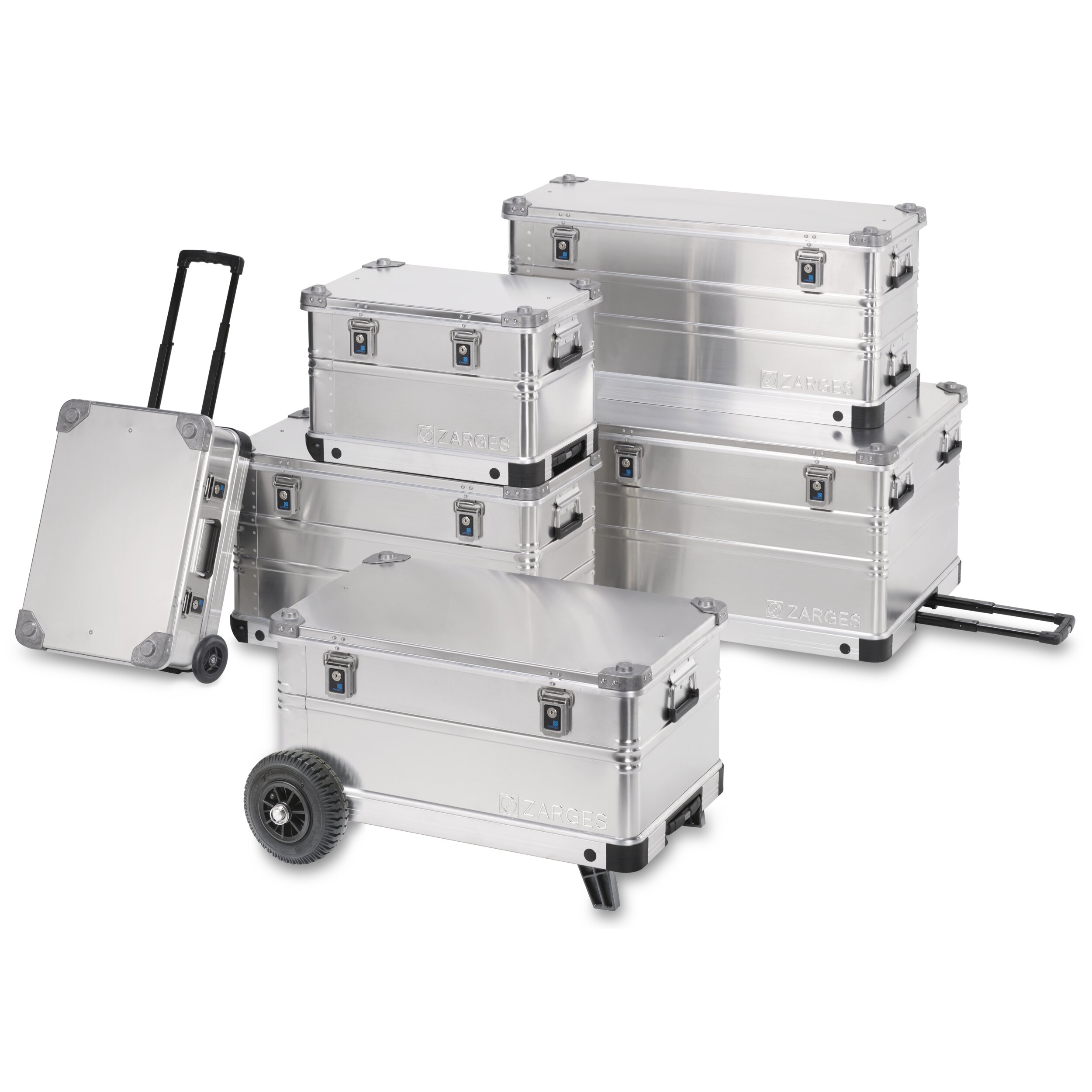

main product photo

Details

The new K 424 XC combines the legendary quality of ZARGES cases with new mobility.

  • The K 424 XC has excellent mobility and ergonomics owing to its integrated wheels and pull-out handles (for order no. 41810-41814) or second sprung drop handle on the end face (for order no. 41815).
  • All-round beading and corner beading offer additional stability, allowing the box to withstand a load of up to 50 kg despite its low weight.
  • Stackability guaranteed through stacking corners made from impact-resistant plastic and integrated stacking elements in the support frame. Can also be stacked with containers in the ZARGES K 470 and Eurobox series.
  • Can be fitted with an optional 125 mm wheel set or 220 mm off-road wheel set (for models with a volume of 60 litres and above) to improve its mobility on difficult terrain.
  • Sturdy, mobile aluminium box in ZARGES quality, long service life, a reliable companion.
  • Optimum mobility through integrated 50 mm castors and pull-out handle (Order No. 41810-41814) or second sprung drop handle on the end face (Order No. 41815).
  • Extremely smooth-running due to special castors, ø 50 mm, made from polyurethane and polyamide.
  • ZARGES Comfort fasteners with extremely long service life, fitted with plug locks.
  • High load-bearing capacity of up to 50 kg despite the low dead weight.
  • UN approval for the transportation of hazardous goods possible at additional charge.
  • Optional wheel set 125 mm or off-road set 220 mm available for use in difficult terrain.
  • Beading all round and corner beads for additional dimensional stability.
  • A wide range of adjustable interior fittings ensure versatility.
  • Peripheral foamed seal in the lid for protection against dust and splashwater.

Hints and special features

  • Clearance measurement approx. 30mm (1.2") less than internal dimension (length and width). Special sizes on request.

More Information

More Information
Corner beading ✔
Volume 99 l
Internal dimensions L x W x H 750 mm × 350 mm × 380 mm
Outside dimensions L x W x H 800 mm × 400 mm × 455 mm
Material Aluminium
Colour of the stacking corners Natural aluminium
Handles Sprung drop handles
Seal foamed lid seal
Integrated wheels ✔
Fasteners Comfort fasteners
Material of the stacking corners Aluminium
Wheel diameter 50 mm
Pull handle 2-section
Max. gross weight dangerous goods permission 35 kg
Weight 9 kg
Total max. weight 35 kg
Peripheral beads and corner beads ✔
Stacking corners ✔

Variants

Order number Corner beading Internal dimensions L x W x H Max. gross weight dangerous goods permission Outside dimensions L x W x H Peripheral beading Pull handle Total max. weight Volume Weight
41810 No 516 mm × 350 mm × 159 mm 25 kg 550 mm × 400 mm × 233 mm No 3-section 25 kg 28 l 6.3 kg
41811 Yes 550 mm × 350 mm × 310 mm 25 kg 600 mm × 400 mm × 385 mm Yes 3-section 25 kg 60 l 7.3 kg
41812 Yes 750 mm × 350 mm × 380 mm 35 kg 800 mm × 400 mm × 455 mm Yes 2-section 35 kg 99 l 9 kg
41813 Yes 750 mm × 450 mm × 310 mm 35 kg 800 mm × 500 mm × 385 mm Yes 2-section 35 kg 105 l 9.5 kg
41814 Yes 750 mm × 635 mm × 410 mm 35 kg 800 mm × 685 mm × 485 mm Yes 2-section 35 kg 195 l 12 kg
41815 Yes 910 mm × 350 mm × 380 mm 50 kg 960 mm × 400 mm × 455 mm Yes 2. Sprung drop handle 50 kg 120 l 9.5 kg
