Horizontal stabiliser bar

help-icon Help with option selection

How do I find the right spare part?

To select the right spare part, you need the exact length of the part you require for your ladder. This guide shows you how to measure the length of your spare part in order to select the right one.

  1. The length of the horizontal stabiliser bar is determined by the length of the horizontal stabiliser bar including the correctly mounted ladder end caps.
  2. Use a ruler, for example, to measure the total length of the horizontal stabiliser bar, including the correctly mounted ladder end caps.

  3. If you do not find a horizontal stabiliser bar with the right length in the ZARGES range, select the next longer horizontal stabiliser bar. As long as all other dimensions (e.g. distance between holes, drill diameter, outer dimension of stile, etc.) fit exactly, a longer horizontal stabiliser bar will also fit. Make sure that you do not select a shorter horizontal stabiliser bar, as this will impair the stability of your ladder.
  1. Die Länge der Spreizsicherung ergibt sich aus dem Abstand zwischen den Bohrungen bzw dem äußeren Ende der Laschen.
  2. Messen sie z.B. mit einem Zollstock den Abstand zwischen den Mittelpunkten der Bohrungen bzw. den Laschen an den beiden Enden der Spreizsicherung
  3. Wähen sie die passende Größe der Spreizsicherung aus
  1. The length of the horizontal stabiliser bar is determined by the length of the horizontal stabiliser bar including the correctly mounted ladder end caps.
  2. Use a ruler, for example, to measure the total length of the horizontal stabiliser bar, including the correctly mounted ladder end caps.

  3. If you do not find a horizontal stabiliser bar with the right length in the ZARGES range, select the next longer horizontal stabiliser bar. As long as all other dimensions (e.g. distance between holes, drill diameter, outer dimension of stile, etc.) fit exactly, a longer horizontal stabiliser bar will also fit. Make sure that you do not select a shorter horizontal stabiliser bar, as this will impair the stability of your ladder.

Do you need help with your selection?

Contact our spare parts experts in customer service!

help-icon Help with option selection

How do I find the right spare part?

To select the correct spare part, you require the exact stile outside dimensions of your ladder. In this guide, we show you how to measure the stile outside dimensions of your ladder in order to select the correct spare part.

  1. Expose the ladder stile, e.g. by removing the ladder caps.
  2. Use a measuring calliper to measure the exact outside dimension of the ladder stile. Measure the width and depth of the ladder stile. Note down the dimensions.
  3. Select the spare part that matches the dimensions you noted. Caution: spare parts can differ only by a few millimetres. It is better to measure several times if you are unsure about which spare part is the right one.

Do you need help with your selection?

Contact our spare parts experts in customer service!

Contact ZARGES Add to Compare Download Product Datasheet (PDF) Product Documents

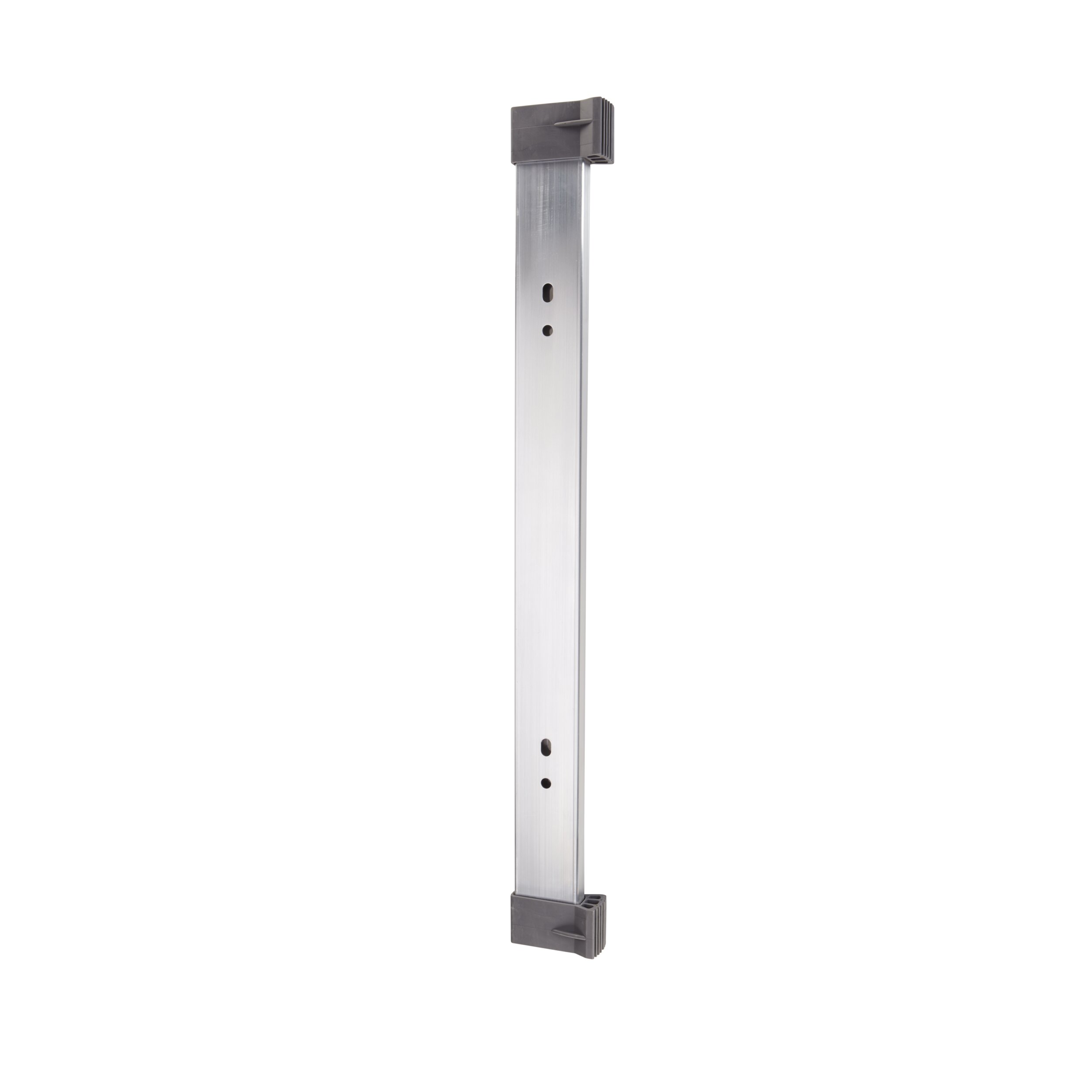

main product photo

Details

  • Attachment with M6 screw.
  • Further dimensions on request

Hints and special features

  • Due to design modifications, it is necessary to note not only the ladder type but also always the outside dimension of the stiles.

More Information

More Information
Warranty Missing translation
Drilling diameter 10,5 mm (M6)

Variants

Order number Bore spacing Length Stile dimensions Weight
800307 325mm / 395mm / 465mm 700 mm 55 mm × 20 mm 0.5 kg
800491 395mm / 465mm 890 mm 55 mm × 20 mm 0.7 kg
800492 395mm / 465mm 1090 mm 67 mm × 20 mm 0.9 kg
800552 325mm / 395mm / 465mm 690 mm 58 mm × 25 mm 0.8 kg
800551 325mm / 395mm / 465mm 890 mm 58 mm × 25 mm 0.8 kg
800549 325mm / 395mm / 465mm 990 mm 73 mm × 25 mm 1 kg
800550 325mm / 395mm / 465mm 1200 mm 73 mm × 25 mm 1 kg
