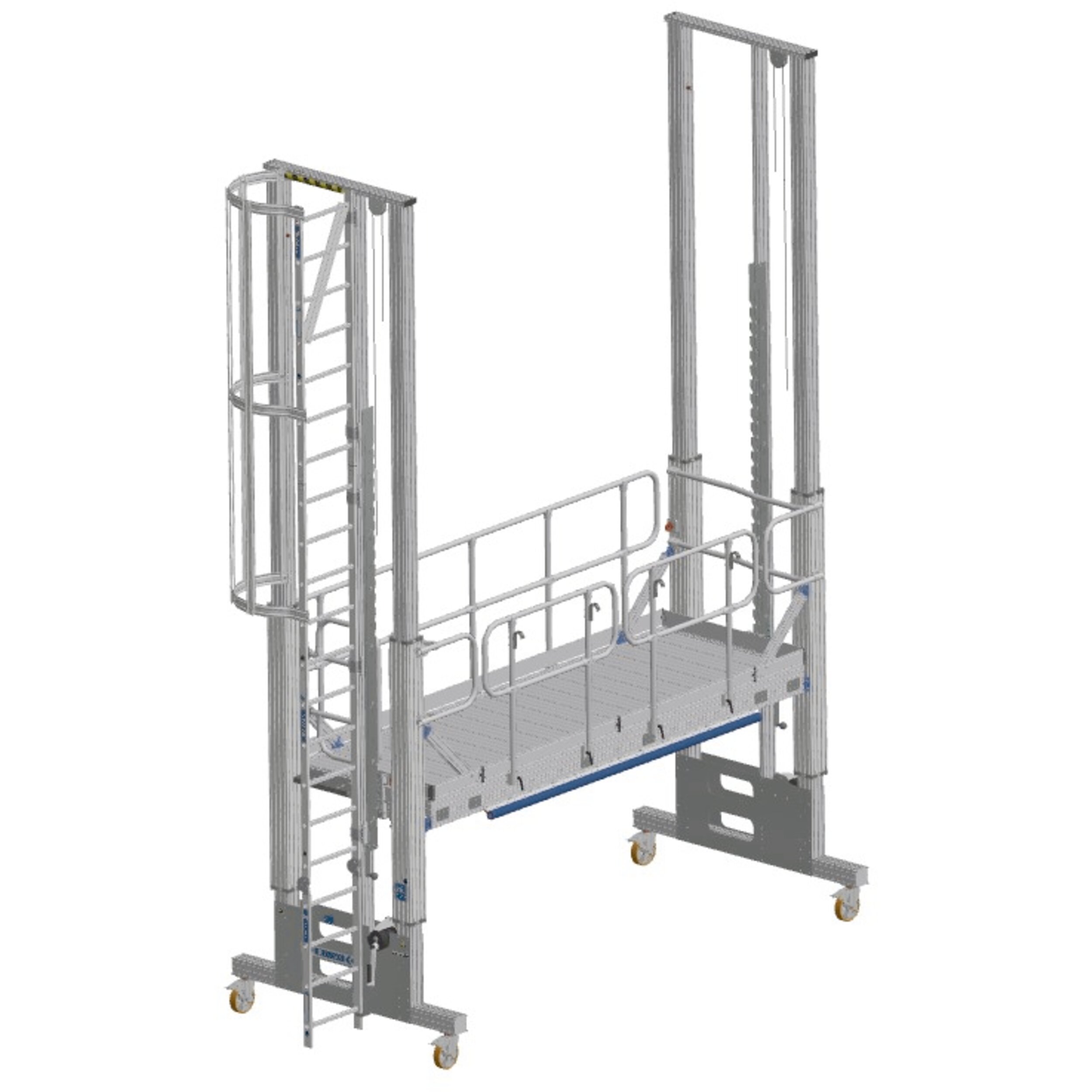

Height-adjustable work platform – base module

SKU: 40060016

Details

Work safely at heights.

  • Choose between variants without extension platform, with fixed extension platform and with folding extension platform. The options with an additional platform will by default have a chassis with pull-out stabilisers and height adjusters.
  • The overhang on the optional extension platform (fixed or foldable) offers even more flexible access.
  • The swivel castors provide great mobility, and the additional slide-out stabilisers and levelling feet on the extension platform ensure stability.
  • Two people can work on the platform simultaneously thanks to its generous size and high load capacity of 300 kg – the same goes for the optional extension platform.

Hints and special features

  • If the existing modular system does not meet your requirements, we can also offer you customised solutions tailored to your needs.
  • Standard applied: DIN EN ISO 14 122.

More Information

More Information
Standards EN ISO 14122
Warranty 10 years
Platform length 3690 mm
Platform width 1740 mm
Version Mit klappbarer Zusatzplattform 500 mm, Fahrwerk mit Auszug und Spindeln
Order number 40060016
Model L
Platform height -
Weight 121.9 kg

Variants

Order number Model Platform length Platform width Standards Version Weight
40060010 L 3690 mm 1240 mm Without additional platform, with base chassis 75.4 kg
40060011 M 2890 mm 1240 mm Without additional platform, with base chassis 65.3 kg
40060013 L 3690 mm 1740 mm With additional fixed platform 500 mm, chassis with pull-out stabilisers and height adjusters 141.6 kg
40060014 M 2890 mm 1740 mm With additional fixed platform 500 mm, chassis with pull-out stabilisers and height adjusters 126.9 kg
40060016 L 3690 mm 1740 mm EN ISO 14122 With additional folding platform 500 mm, chassis with pull-out stabilisers and height adjusters 121.9 kg
40060017 M 2890 mm 1740 mm EN ISO 14122 With additional folding platform 500 mm, chassis with pull-out stabilisers and height adjusters 108.4 kg
