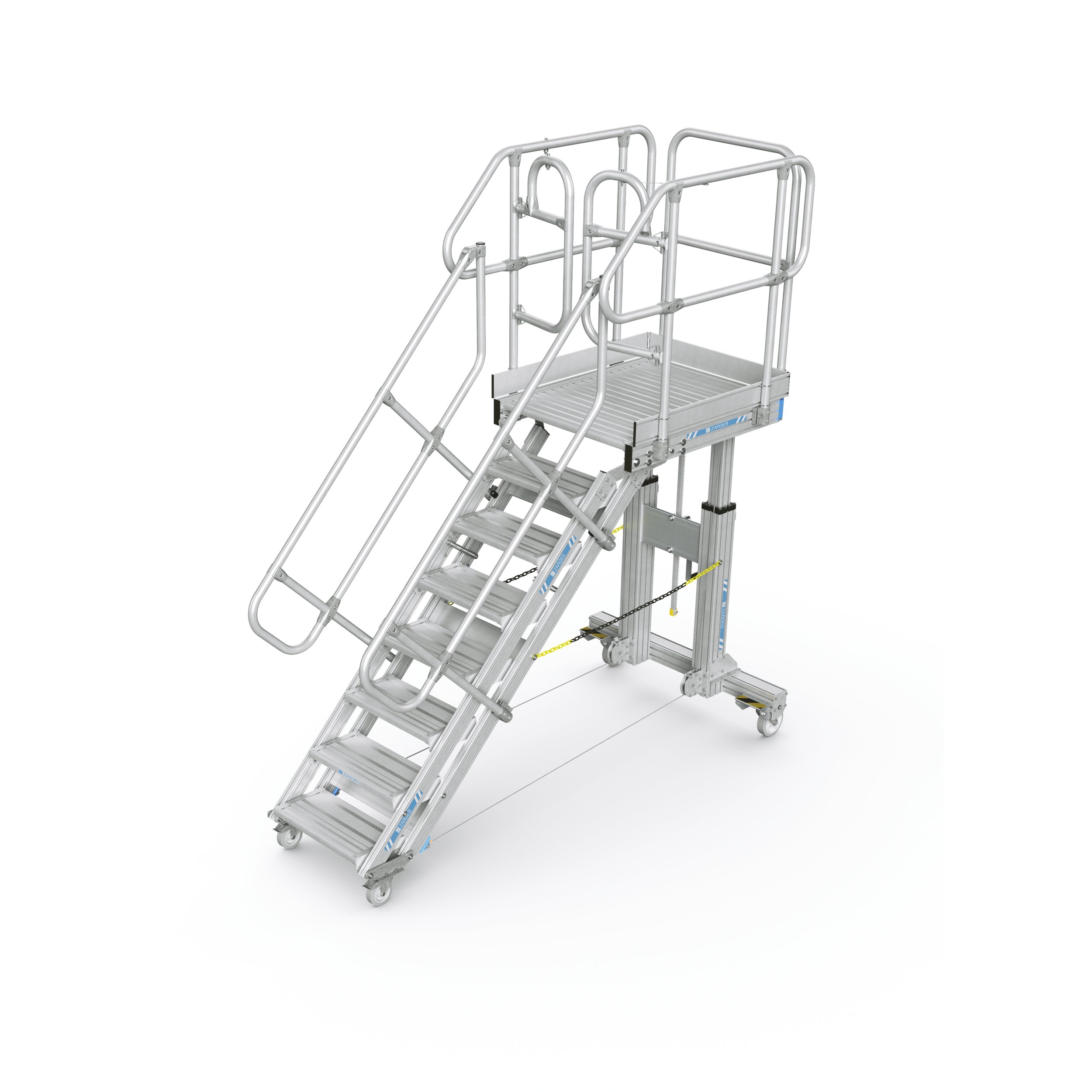

Height-adjustable mobile access steps with platform

SKU: 40060047

Details

Always the ideal height.

  • Flexibility: Working at different heights.
  • Easy to use: Operable by one person.
  • Safety: Thanks to wide, comfortable access stairs with adjustable height and angle.
  • Safety: Work safely on a large platform.
  • Ergonomics: Adjustable to the ideal working height for any task.
  • Ergonomics: Adjustable to the ideal working height, even for employees of different heights.

Hints and special features

  • If the existing modular system does not meet your requirements, we can also offer you customised solutions tailored to your needs.
  • Standards used: Machinery Directive 2006/42/EC, EN ISO 14122-3, EN 131-7.

More Information

More Information
Warranty 10 years
Platform length 1000 mm
Tread width 800 mm
Platform width 1000 mm
Version Indoor und Outdoor.
Order number 40060047
Load capacity max. 150 kg
Platform height 1.400mm - 2.100mm
Overall span 2972 mm
Weight 320.8 kg
Number of rungs / treads 7

Variants

Order number Overall span Platform height Platform width Tread width Version Weight
40060049 2191 mm 900mm - 1.300mm 800 mm 600 mm Indoor. 152.6 g
40060041 3739 mm 1.900mm - 2.900mm 1000 mm 800 mm Indoor. 239 kg
40060042 3739 mm 1.900mm - 2.900mm 800 mm 600 mm Indoor. 225.8 kg
40060043 2967 mm 1.400mm - 2.100mm 1000 mm 800 mm Indoor. 196 kg
40060044 2967 mm 1.400mm - 2.100mm 800 mm 600 mm Indoor. 185.2 kg
40060045 3745 mm 1.900mm - 2.900mm 1000 mm 800 mm Indoor and outdoor. 379 kg
40060046 3745 mm 1.900mm - 2.900mm 800 mm 600 mm Indoor and outdoor. 349.8 kg
40060047 2972 mm 1.400mm - 2.100mm 1000 mm 800 mm Indoor and outdoor. 320.8 kg
40060048 2972 mm 1.400mm - 2.100mm 800 mm 600 mm Indoor and outdoor. 297.7 kg
