- Open grid surface and 1 wall bracket.
- Railing on one longitudinal side, with railing link.
- Extension platforms can be bolted together as required.
- Distributed load 3.5 kN/m².
- Concentrated load 1.5 kN.

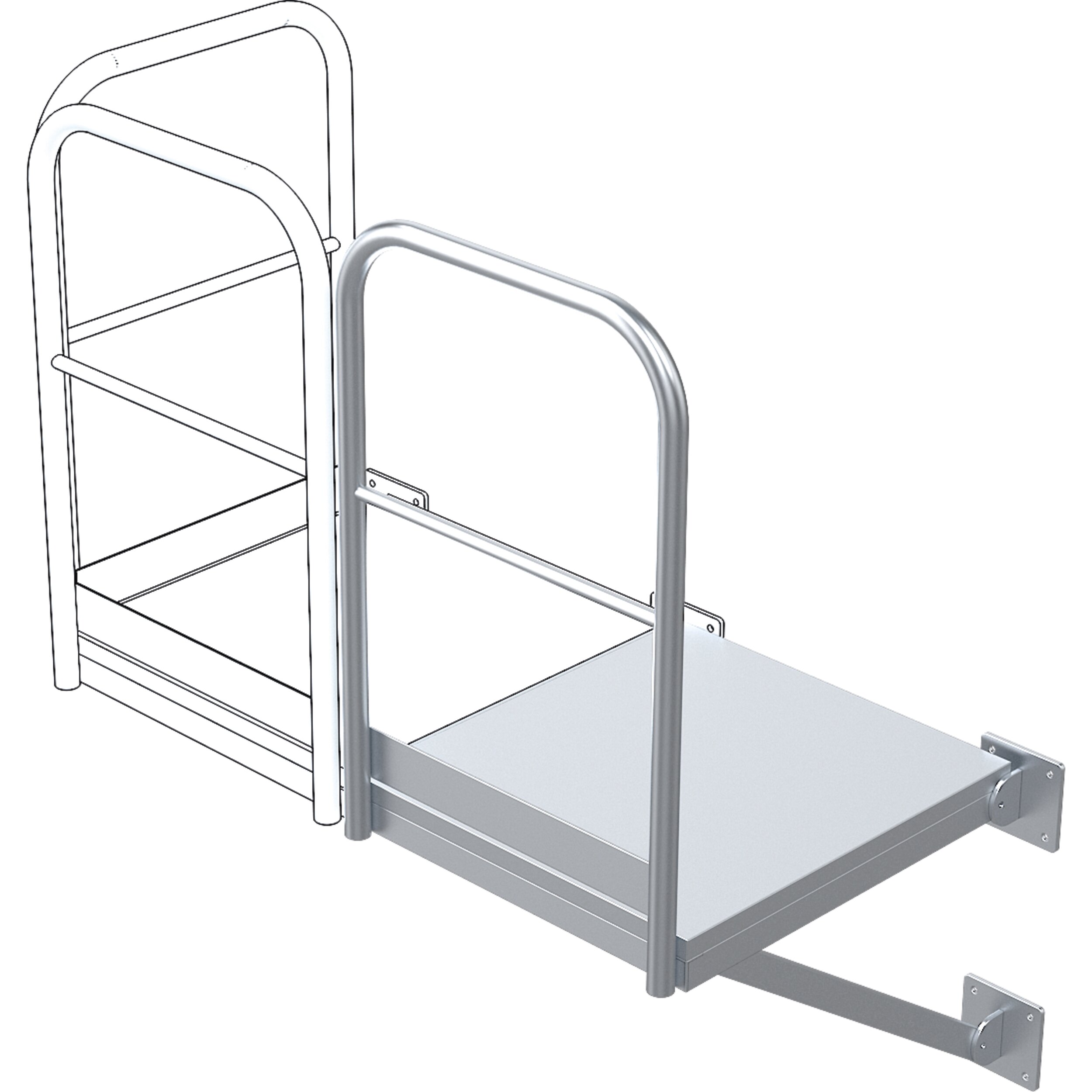

Extension platform
SKU: 43277
Details
More Information
| Material | Galvanised steel |
|---|---|
| Order number | 43277 |
| Depth | 1000 mm |
| Size W x D | 500mm × 1.000mm |
| Weight | 52 kg |
| Width | 500 mm |
Variants
| Order number | Depth | Material | Size W x D | Weight | Width |
|---|---|---|---|---|---|
| 43272 | 860 mm | Galvanised steel | 500mm × 860mm | 50 kg | 500 mm |
| 43271 | 860 mm | Galvanised steel | 800mm × 860mm | 60 kg | 800 mm |
| 43277 | 1000 mm | Galvanised steel | 500mm × 1.000mm | 52 kg | 500 mm |
| 43276 | 1000 mm | Galvanised steel | 940mm × 1.000mm | 74 kg | 940 mm |
| 44272 | 860 mm | Stainless steel | 500mm × 860mm | 50 kg | 500 mm |
| 44271 | 860 mm | Stainless steel | 800mm × 860mm | 60 kg | 800 mm |
| 44327 | 1000 mm | Stainless steel | 500mm × 1.000mm | 52 kg | 500 mm |
| 44326 | 1000 mm | Stainless steel | 940mm × 1.000mm | 74 kg | 940 mm |
