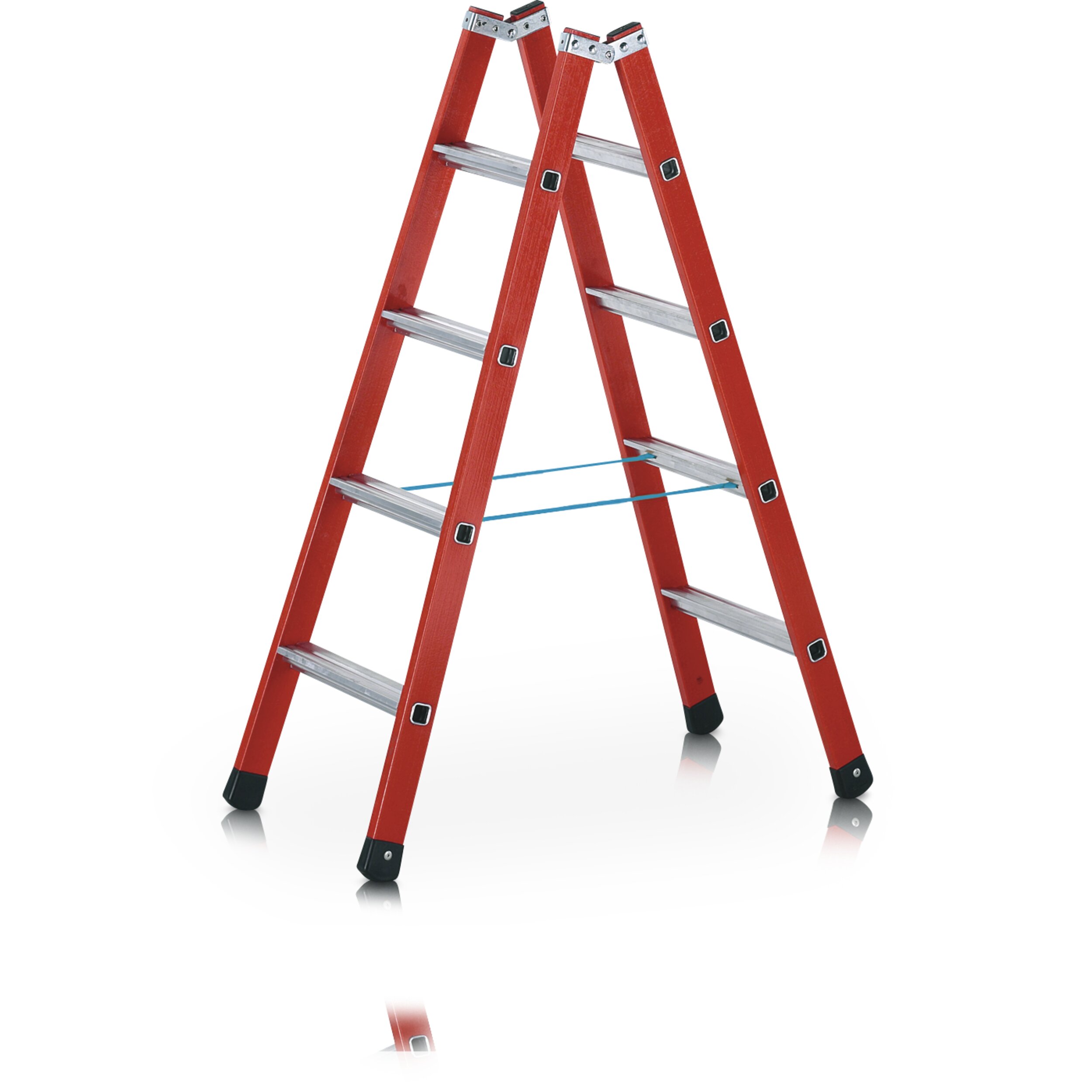

EFAmix B

SKU: 41165

Details

The ideal, particularly lightweight solution for work in electrical and chemical environments.

The ideal, particularly lightweight solution for work in electrical and chemical environments.
High level of protection provided for working on electrical installations thanks to insulated stiles made from glass-fibre-reinforced plastic.
Complies with the high-voltage test for ladders of insulating material in accordance with DIN EN 61 478 or VDE 0682 Section 6.5 Category 1/30 KV.
Stand safely on 60 mm deep rungs made from non-slip aluminium alloy.
High-strength perlon belts prevent splay.
High strength, non-twist rung/stile connections.
Strong steel hinge.
Replaceable 2-component plastic end caps ensure positioning without the risk of slipping and at the same time provide firm seating in the stile.

More Information
Number of rungs	2 × 4
Warranty	10 years
Standards	EN 131 professional
Material	Aluminium / plastic
Load capacity	max. 150 kg
Anti splay	Belt strap
Base	0,96 m × 0,48 m
Connection Stile-Rung	flanged
Tread depth	60 mm
Transport dimensions	1.344 mm × 480 mm × 162 mm
Vertical ladder height	1.29 m
Working height	2.6 m
Overall length	1.34 m
Number ladderparts	2
Number of rungs	4
Pitch rung/tread	265 mm
Producttype	GRP composite stepladder with rungs
Type rung/tread	serrated
Weight	7.8 kg
Overall base width	0.47 m
Stile depth	58 mm
Length base area	0.96 m
Width base area	0.48 m
Number of rungs / treads	2 × 4

Order number	Base	Number of rungs	Number of rungs	Overall base width	Overall length	Transport dimensions	Vertical ladder height	Weight	Working height
41165	0,96 m × 0,48 m	4	2 × 4	0.47 m	1.34 m	1.344 mm × 480 mm × 162 mm	1.29 m	7.8 kg	2.6 m
41166	1,13 m × 0,51 m	5	2 × 5	0.5 m	1.62 m	1.625 mm × 510 mm × 162 mm	1.55 m	9.6 kg	2.85 m
41167	1,31 m × 0,54 m	6	2 × 6	0.53 m	1.9 m	1.904 mm × 540 mm × 162 mm	1.82 m	11.4 kg	3.1 m
41168	1,81 m × 0,6 m	8	2 × 8	0.59 m	2.46 m	2.464 mm × 600 mm × 162 mm	2.33 m	14.8 kg	3.65 m
41169	2,17 m × 0,66 m	10	2 × 10	0.65 m	3.02 m	3.024 mm × 660 mm × 162 mm	2.86 m	18.8 kg	4.15 m
41170	2,55 m × 0,72 m	12	2 × 12	0.71 m	3.58 m	3.584 mm × 720 mm × 162 mm	3.38 m	22.5 kg	4.7 m
