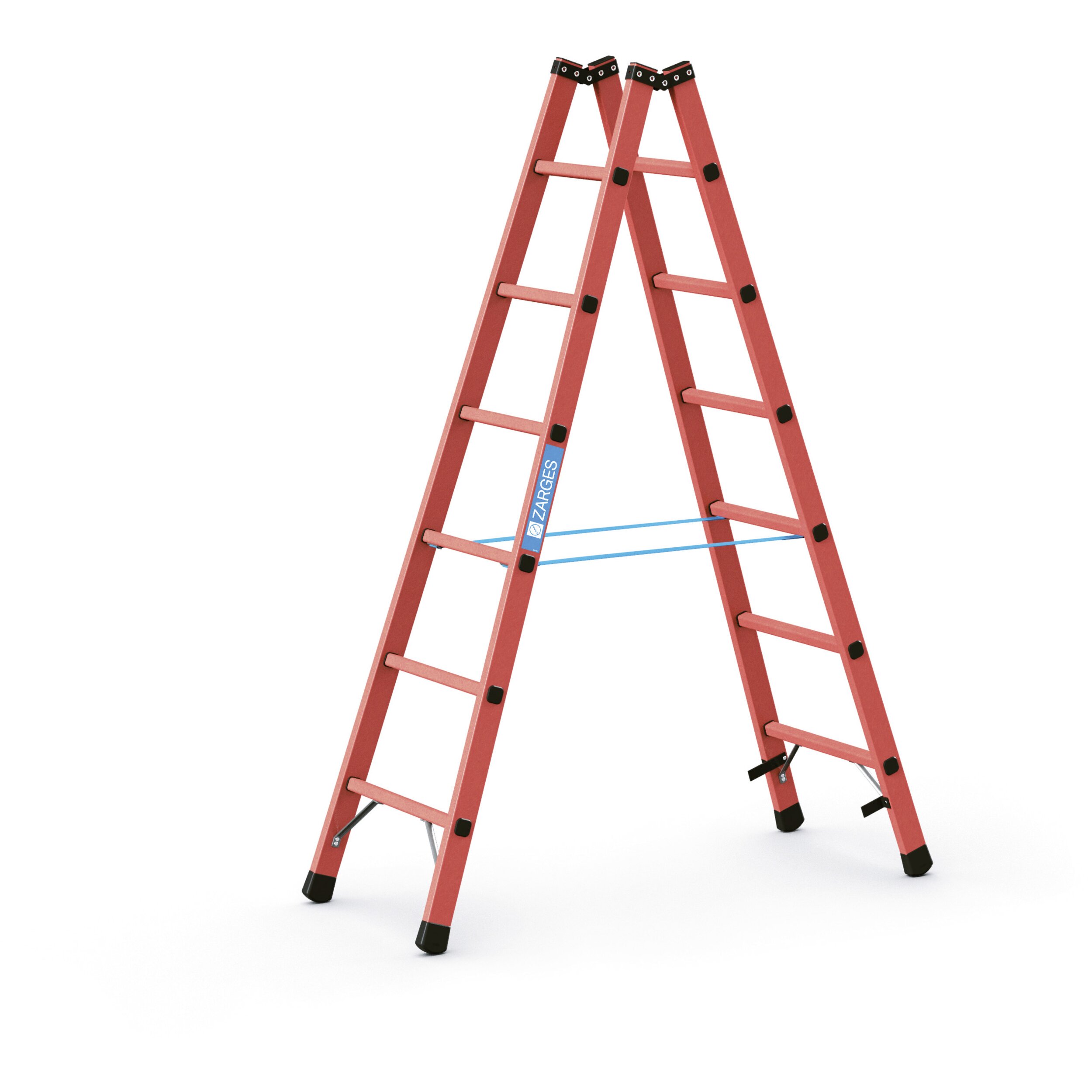

EFA B

Details

For flexible applications in electrical or chemical environments and for working under voltage.

For flexible applications in electrical or chemical environments and for working under voltage.
Stiles and rungs made of glass-fibre-reinforced plastic for particularly high chemical resistance.
Complies with the high-voltage test for ladders of insulating material in accordance with DIN EN 61 478 or VDE 0682 Section 6.5 Category 1/30 KV.
Resistance to ageing in accordance with DIN EN ISO 4892-2.
Suitable for working in high-voltage environments (1000 V AC, 1500 V DC).
Stiles and rungs (30 x 30 mm) made from glass-fibre-reinforced plastic for particularly high chemical resistance.
High-strength perlon belts prevent splay.
Replaceable 2-component plastic end caps ensure positioning without the risk of slipping and at the same time provide firm seating in the stile.

More Information
Standards	EN 131 professional
Warranty	10 years
Material	Glass-fibre reinforced plastic
Load capacity	max. 150 kg
Anti splay	Belt strap
Tread depth	30 mm
Number ladderparts	2
Pitch rung/tread	265 mm
Producttype	GRP stepladder with rungs
Type rung/tread	serrated
Stile depth	58 mm

Order number	Base	Number of rungs	Number of rungs	Overall base width	Overall length	Transport dimensions	Vertical ladder height	Weight	Working height
41261	1,08 m × 0,48 m	4	2 × 4	0.48 m	1.32 m	1.350 mm × 480 mm × 162 mm	1.27 m	7.5 kg	2.6 m
41256	1,31 m × 0,54 m	6	2 × 6	0.54 m	1.88 m	1.900 mm × 540 mm × 162 mm	1.82 m	10.5 kg	3.1 m
41257	1,66 m × 0,6 m	8	2 × 8	0.6 m	2.44 m	2.460 mm × 600 mm × 162 mm	2.35 m	13.8 kg	3.65 m
41258	2,01 m × 0,66 m	10	2 × 10	0.65 m	3 m	3.000 mm × 660 mm × 160 mm	2.89 m	17 kg	4.15 m
41260	2,7 m × 0,78 m	14	2 × 14	0.77 m	4.12 m	4.150 mm × 770 mm × 160 mm	3.95 m	24.6 kg	5.2 m
