- Lid equipped with 4 toggle locks.
- Wide range of special lids available on request.
- Screw-down lids can also be supplied.
- Protection rating IP 65 in accordance with DIN EN 60529 and IEC 34-5/529 as a result of welded casing and lid with all-round seal.

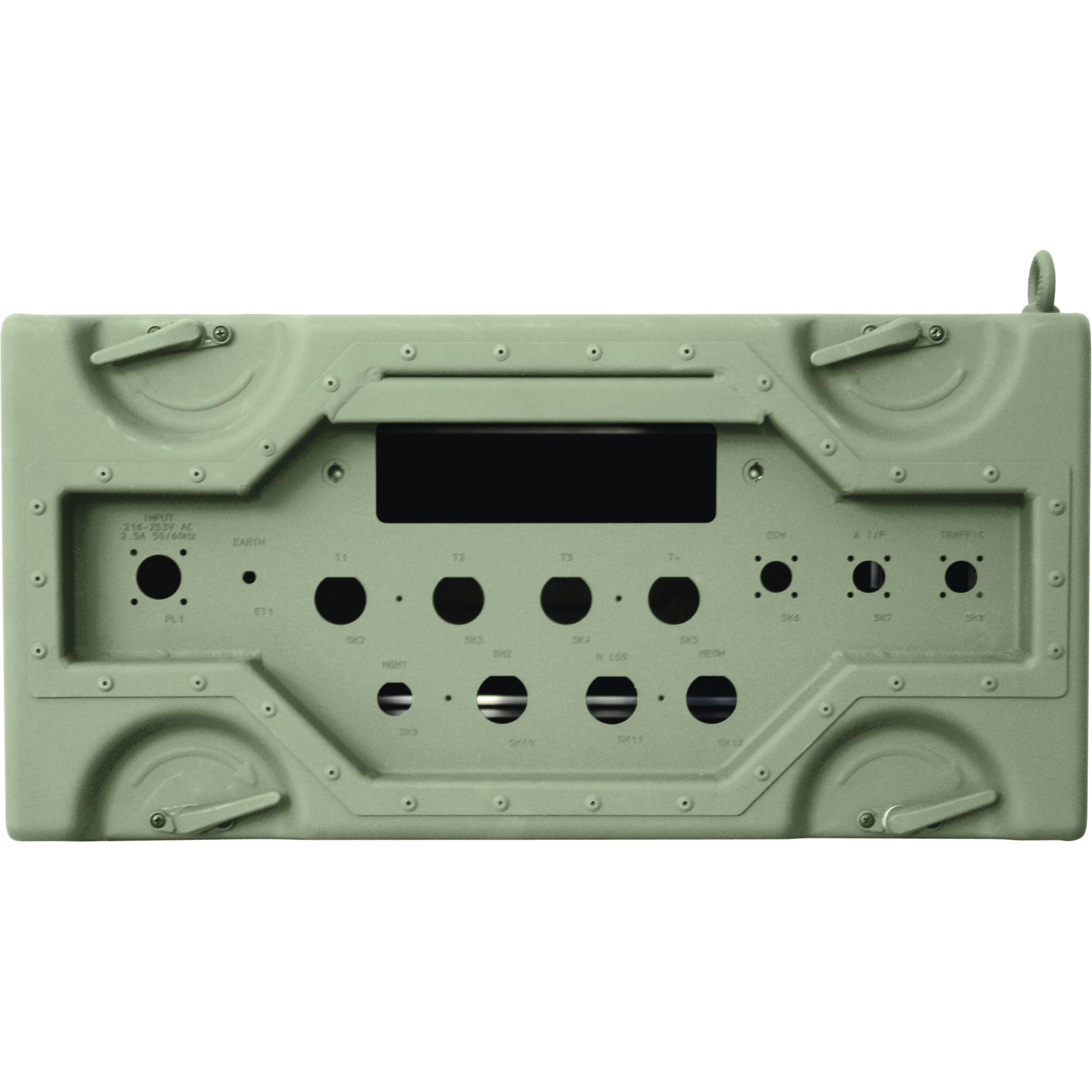

Cover for Mitraset 19" casing
Details
Variants
| Order number | Height lid | Outside dimensions L x W x H | Weight |
|---|---|---|---|
| 45761 | 3 HE/U | 63 mm × 534 mm × 214,5 mm | 1.9 kg |
| 45762 | 4 HE/U | 63 mm × 534 mm × 259 mm | 2.1 kg |
| 45763 | 5 HE/U | 63 mm × 534 mm × 303,5 mm | 2.3 kg |
| 45764 | 6 HE/U | 63 mm × 534 mm × 348 mm | 2.5 kg |
| 45765 | 7 HE/U | 63 mm × 534 mm × 392,5 mm | 2.7 kg |
| 45766 | 8 HE/U | 63 mm × 534 mm × 437 mm | 2.8 kg |
| 45767 | 9 HE/U | 63 mm × 534 mm × 481,5 mm | 3 kg |
| 45768 | 10 HE/U | 63 mm × 534 mm × 526 mm | 3.2 kg |
| 45769 | 11 HE/U | 63 mm × 534 mm × 570,5 mm | 3.3 kg |
| 45770 | 12 HE/U | 63 mm × 534 mm × 615 mm | 3.5 kg |
| 45772 | 14 HE/U | 63 mm × 534 mm × 704 mm | 3.8 kg |
| 45774 | 16 HE/U | 63 mm × 534 mm × 793 mm | 4.1 kg |
