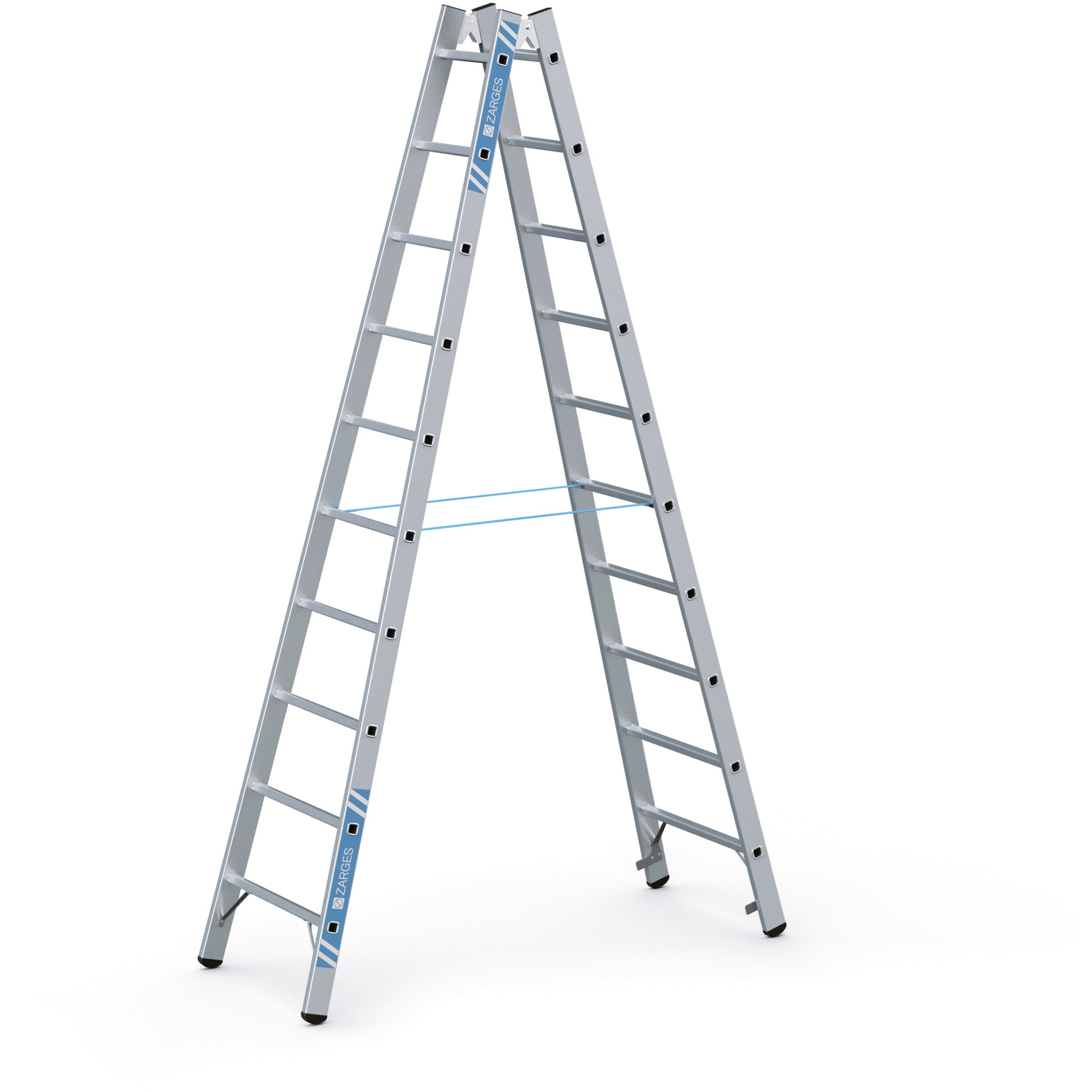

Coni B

SKU: 40313

Details

Whenever you need access to great heights: flexibility with up to 20 rungs for working heights of up to 6.70 m.

Whenever you need access to great heights: flexibility with up to 20 rungs for working heights of up to 6.70 m.
Sturdy aluminium alloy rungs (30 x 30 mm) with non-slip serrated surface.
Sturdy, solidly screwed steel hinges
Two high-strength Perlon belts, secured without twisting to the rung, prevent splay.
High strength, non-twist rung/stile connections.
Additional stabilisation by bracing on the bottom rung.
Replaceable 2-component plastic end caps ensure positioning without risk of slipping and at the same time provide firm seating in the stile.

More Information
Number of rungs	2 × 10
Warranty	10 years
Standards	EN 131 professional
Material	Aluminium
Load capacity	max. 150 kg
Anti splay	Belt strap
Base	1,65 m × 0,66 m
Coating	natural
Connection Stile-Rung	flanged
Tread depth	30 mm
Transport dimensions	approx. 2.930 mm × approx. 660 mm × approx. 170 mm
Vertical ladder height	2.83 m
Working height	4.05 m
Overall length	2.92 m
Number of rungs	10
Pitch rung/tread	265 mm
Producttype	Flanged stepladder with rungs
Type rung/tread	serrated
Weight	11.1 kg
Overall base width	0.66 m
Stile depth	58 mm
Number of rungs / treads	2 × 10

Order number	Base	Number of rungs	Number of rungs	Overall base width	Overall length	Stile depth	Transport dimensions	Vertical ladder height	Weight	Working height
40274	0,78 m × 0,48 m	4	2 × 4	0.48 m	1.25 m	50 mm	1.250 mm × 480 mm × 170 mm	1.2 m	4.4 kg	2.5 m
40275	0,93 m × 0,51 m	5	2 × 5	0.51 m	1.53 m	58 mm	1.530 mm × 510 mm × 170 mm	1.46 m	5.8 kg	2.75 m
40311	1,07 m × 0,54 m	6	2 × 6	0.54 m	1.81 m	58 mm	1.810 mm × approx. 540 mm × approx. 170 mm	1.73 m	6.8 kg	3 m
40277	1,22 m × 0,57 m	7	2 × 7	0.57 m	2.09 m	58 mm	approx. 2.090 mm × 570 mm × approx. 170 mm	1.99 m	7.3 kg	3.25 m
40312	1,36 m × 0,6 m	8	2 × 8	0.6 m	2.36 m	58 mm	approx. 2.370 mm × approx. 600 mm × approx. 170 mm	2.3 m	9 kg	3.55 m
40313	1,65 m × 0,66 m	10	2 × 10	0.66 m	2.92 m	58 mm	approx. 2.930 mm × approx. 660 mm × approx. 170 mm	2.83 m	11.1 kg	4.05 m
40314	1,94 m × 0,72 m	12	2 × 12	0.72 m	3.48 m	58 mm	approx. 3.490 mm × approx. 720 mm × approx. 170 mm	3.37 m	13.3 kg	4.6 m
40315	2,24 m × 0,78 m	14	2 × 14	0.78 m	4.04 m	62 mm	approx. 4.050 mm × approx. 780 mm × approx. 175 mm	3.91 m	17.2 kg	5.1 m
40316	2,54 m × 0,84 m	16	2 × 16	0.84 m	4.61 m	68 mm	approx. 4.610 mm × approx. 840 mm × approx. 190 mm	4.45 m	21.2 kg	5.65 m
40320	2,84 m × 0,9 m	18	2 × 18	0.9 m	5.17 m	73 mm	approx. 5.170 mm × approx. 900 mm × approx. 200 mm	5 m	25.6 kg	6.15 m
40317	3,13 m × 0,96 m	20	2 × 20	0.96 m	5.73 m	73 mm	approx. 5.730 mm × approx. 960 mm × approx. 200 mm	5.54 m	29.8 kg	6.7 m
