Comfortstep Trec LH

SKU: 41416

Contact ZARGES Add to Compare Download Product Datasheet (PDF) Product Documents Spare parts and accessories

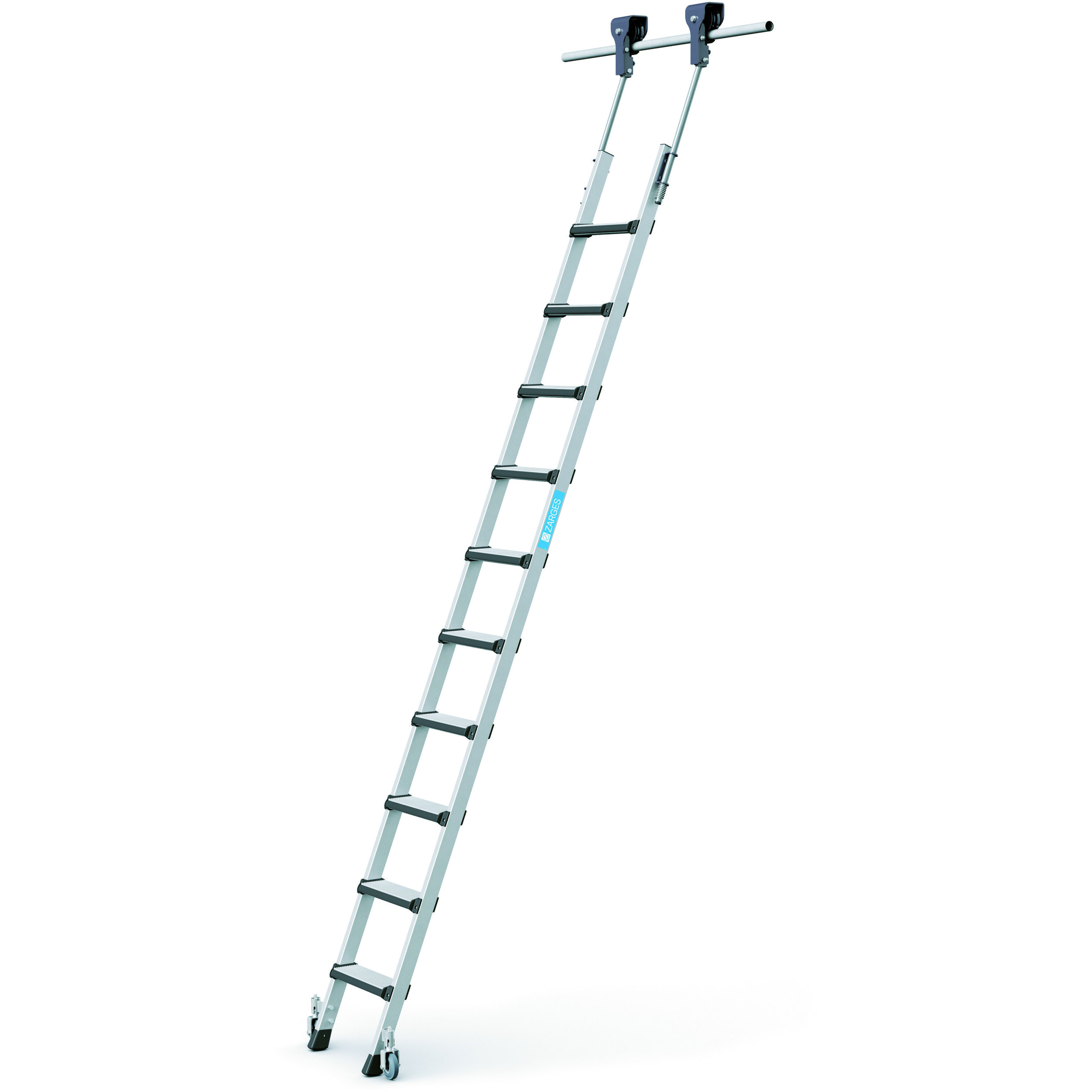

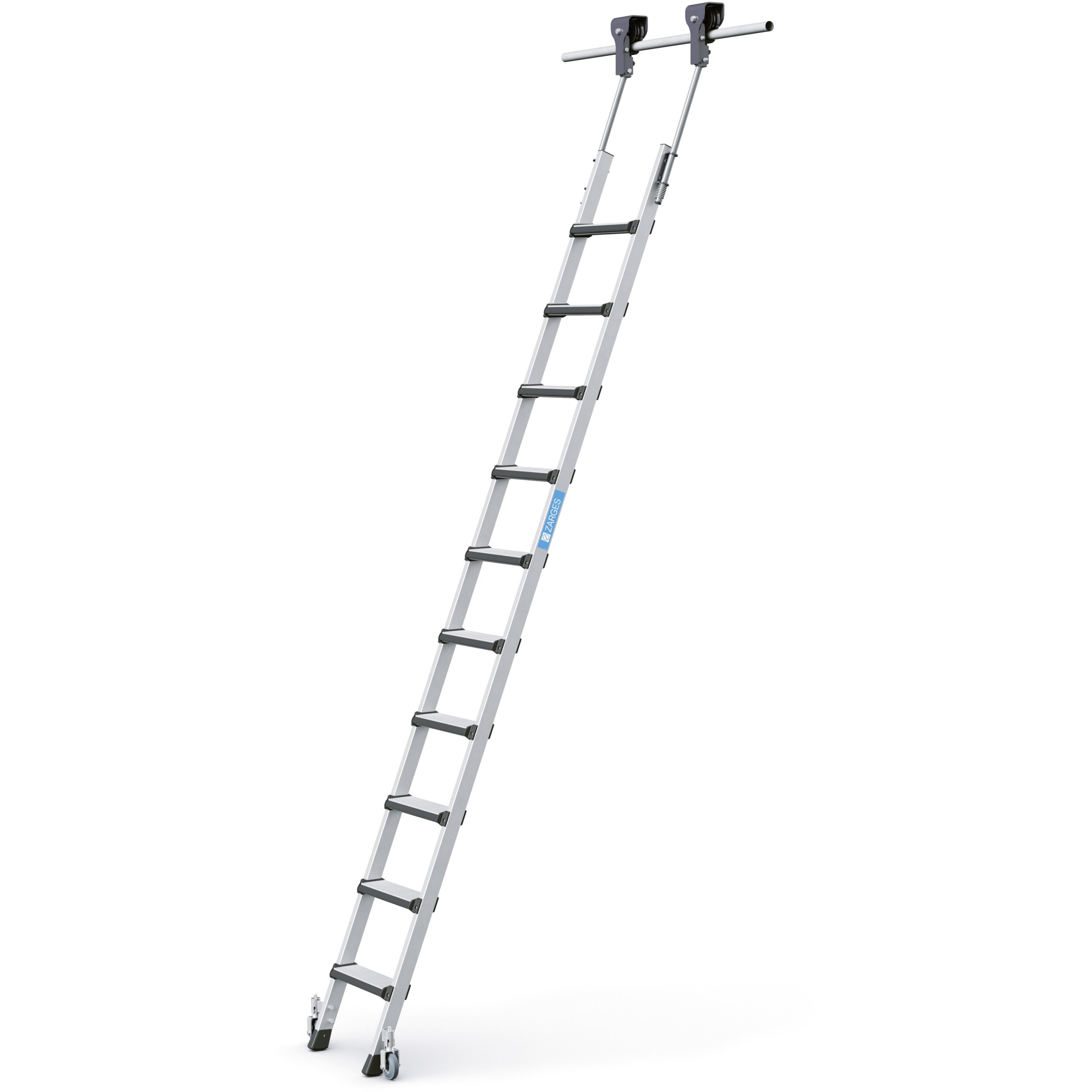

main product photo

Details

For easy travel backwards and forwards along your shelving: The solution with guide rails and self-locking sprung castors is individually height-adjustable.

  • For easy travel backwards and forwards along your shelving: The solution with guide rails and self-locking sprung castors is individually height-adjustable.
  • Both the top of the ladder and the self-locking sprung castors at the bottom lock the shelf ladder when weight is applied.
  • When not in use, the ladder can be stowed vertically on the shelf to save space.

Hints and special features

  • Please quote the distance between the floor and the top edge of the tubular rail when ordering!
  • Complies with EN 131 Professional.

More Information

More Information
Standards EN 131 professional
Warranty 10 years
Material Aluminium
Load capacity max. 150 kg
Coating anodised
Connection Stile-Rung bolted
Tread depth 80 mm
Transport dimensions 2.640 mm × 380 mm × 100 mm
Max height hook on vertical 3.08 m
Min height hook on vertical 2.84 m
Height hook on vertical =2,84m-=3,08 m
Working height 3.75 m
Number of treads 10
Pitch rung/tread 250 mm
Producttype Bolted mobile shelf ladder with treads
Type rung/tread padding on front tread edges
Weight 7.6 kg
Number of rungs / treads 10

Variants

Order number Height hook on vertical Max height hook on vertical Min height hook on vertical Number of treads Transport dimensions Weight Working height
41412 =1,84m-=2,08 m 2.08 m 1.84 m 6 1.680 mm × 380 mm × 100 mm 4.5 kg 2.75 m
41413 =2,09m-=2,33 m 2.33 m 2.09 m 7 1.920 mm × 380 mm × 100 mm 5.2 kg 3 m
41414 =2,34m-=2,58 m 2.58 m 2.34 m 8 2.160 mm × 380 mm × 100 mm 5.9 kg 3.25 m
41415 =2,59m-=2,83 m 2.83 m 2.59 m 9 2.400 mm × 380 mm × 100 mm 6.6 kg 3.5 m
41416 =2,84m-=3,08 m 3.08 m 2.84 m 10 2.640 mm × 380 mm × 100 mm 7.6 kg 3.75 m
