SKU: 41405

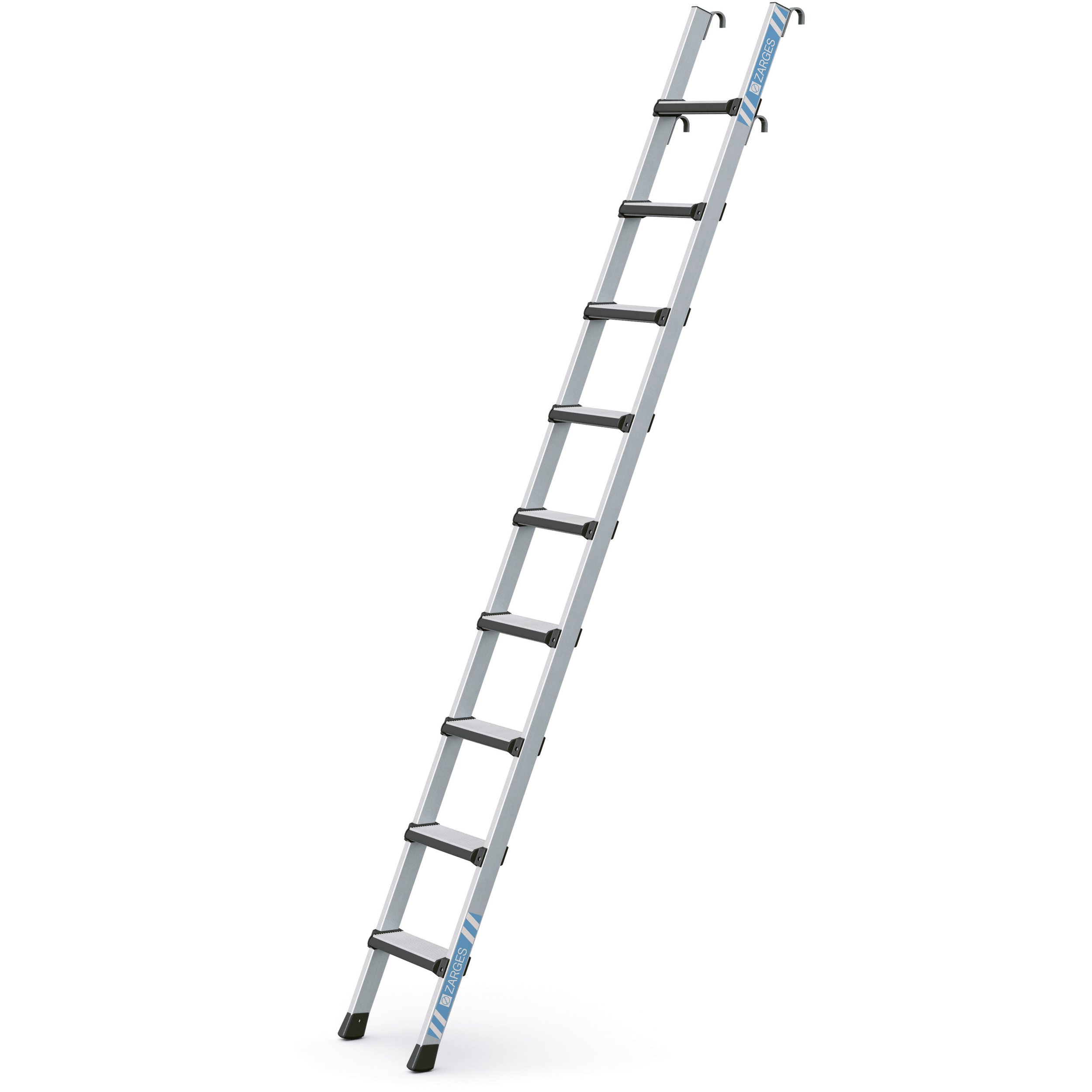

These flexible ladders ensure safe access to shelving and can be adapted to the required height.
| Standards | EN 131 professional |
|---|---|
| Warranty | 10 years |
| Material | Aluminium |
| Load capacity | max. 150 kg |
| Coating | anodised |
| Connection Stile-Rung | bolted |
| Tread depth | 80 mm |
| Transport dimensions | 2.380 mm × 380 mm × 140 mm |
| Max height hook on vertical | 2.44 m |
| Min height hook on vertical | 2.2 m |
| Height hook on vertical | =2,2m-=2,44 m |
| Working height | 3.5 m |
| Number of treads | 9 |
| Pitch rung/tread | 250 mm |
| Producttype | Bolted hook-on shelf ladder with treads |
| Type rung/tread | padding on front tread edges |
| Weight | 6.6 kg |
| Number of rungs / treads | 9 |
| Order number | Height hook on vertical | Max height hook on vertical | Min height hook on vertical | Number of treads | Transport dimensions | Weight | Working height |
|---|---|---|---|---|---|---|---|
| 41402 | =1,45m-=1,69 m | 1.69 m | 1.45 m | 6 | 1.660 mm × 380 mm × 100 mm | 4.5 kg | 2.75 m |
| 41403 | =1,7m-=1,94 m | 1.94 m | 1.7 m | 7 | 1.900 mm × 380 mm × 100 mm | 5.2 kg | 3 m |
| 41404 | =1,95m-=2,19 m | 2.19 m | 1.95 m | 8 | 2.140 mm × 380 mm × 100 mm | 5.9 kg | 3.25 m |
| 41405 | =2,2m-=2,44 m | 2.44 m | 2.2 m | 9 | 2.380 mm × 380 mm × 140 mm | 6.6 kg | 3.5 m |
| 41406 | =2,45m-=2,69 m | 2.69 m | 2.45 m | 10 | 2.300 mm × 380 mm × 150 mm | 7.3 kg | 3.75 m |
