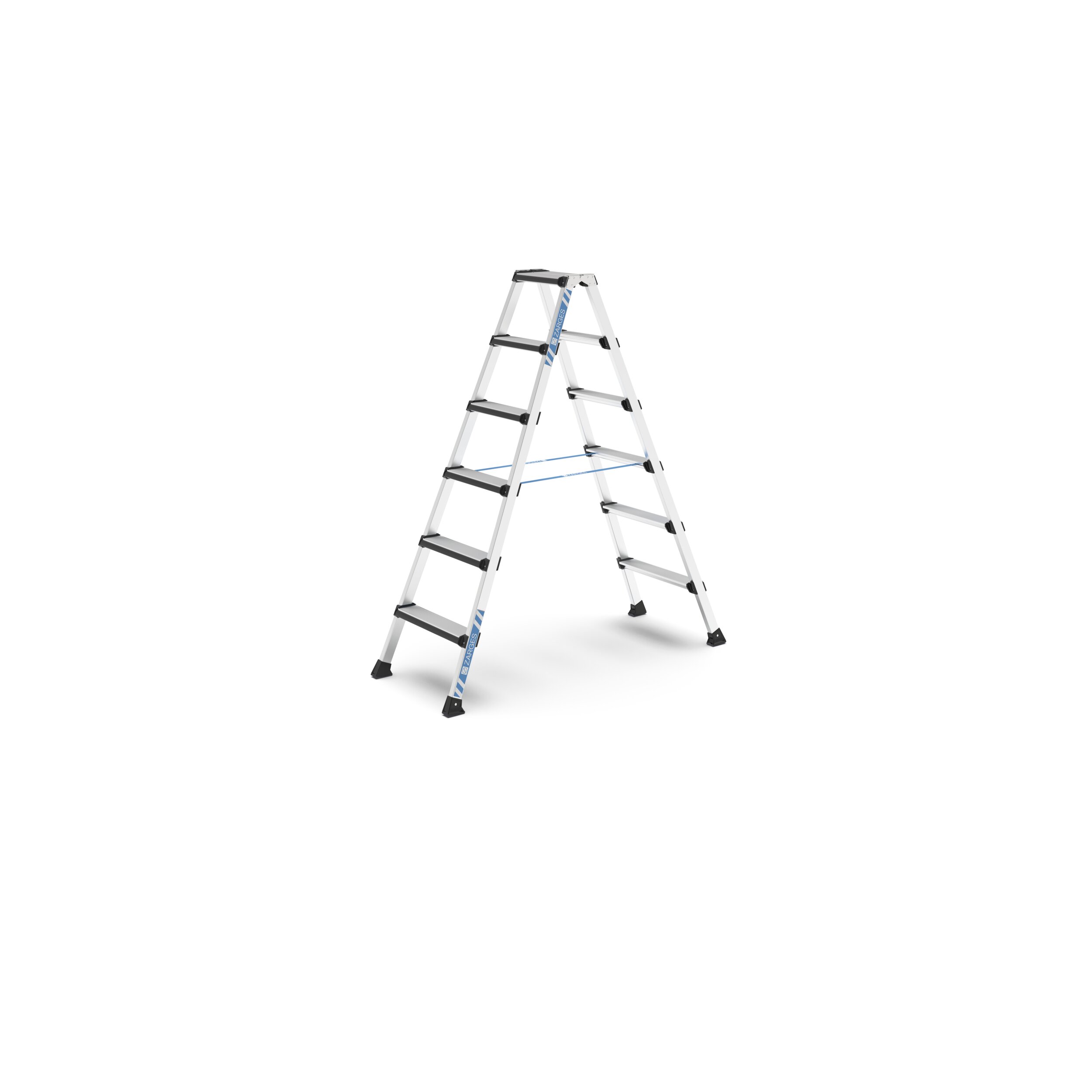

Comfortstep B

SKU: 41435

Details

Shin protection during ascent and descent and attractive design ensure high comfort when working and a flexible range of applications.

Shin protection during ascent and descent and attractive design ensure high comfort when working and a flexible range of applications.
Deep treads with padded front edge for standing comfort.
80 mm deep treads with padded front edges.
Abrasion-resistant, anodised stiles.
High-strength perlon belts prevent splay.
Treads with plastic-cushioned front edges.
Non-slip plastic end caps.
Treads and stiles made from extruded aluminium sections.
Screwed connection between treads and stile.

More Information
Standards	EN 131 professional
Warranty	10 years
Material	Aluminium
Load capacity	max. 150 kg
Anti splay	Belt strap
Base	1,35 m × 0,53 m
Coating	anodised
Connection Stile-Rung	bolted
Tread depth	80 mm
Transport dimensions	1.650 mm × 530 mm × 174 mm
Vertical ladder height	1.5 m
Working height	3 m
Overall length	1.65 m
Number ladderparts	2
Number of treads	6
Number of treads	2 × 6
Pitch rung/tread	250 mm
Producttype	Bolted stepladder with treads
Type rung/tread	padding on front tread edges
Weight	8.8 kg
Overall base width	0.53 m
Stile depth	42 mm
Length base area	1.35 m
Width base area	0.53 m
Number of rungs / treads	2 × 6

Order number	Base	Number of treads	Number of treads	Overall base width	Overall length	Stile depth	Transport dimensions	Vertical ladder height	Weight	Working height
41432	0,74 m × 0,44 m	3	2 × 3	0.44 m	0.84 m	42 mm	840 mm × 445 mm × 174 mm	0.75 m	4.4 kg	2.25 m
41433	0,95 m × 0,47 m	4	2 × 4	0.47 m	1.11 m	42 mm	1.110 mm × 470 mm × 174 mm	1 m	5.8 kg	2.5 m
41434	1,15 m × 0,5 m	5	2 × 5	0.5 m	1.38 m	42 mm	1.380 mm × 500 mm × 174 mm	1.25 m	7.3 kg	2.75 m
41435	1,35 m × 0,53 m	6	2 × 6	0.53 m	1.65 m	42 mm	1.650 mm × 530 mm × 174 mm	1.5 m	8.8 kg	3 m
41436	1,55 m × 0,56 m	7	2 × 7	0.56 m	1.92 m	42 mm	1.920 mm × 560 mm × 174 mm	1.75 m	10.3 kg	3.25 m
41437	1,75 m × 0,59 m	8	2 × 8	0.59 m	2.18 m	48 mm	2.185 mm × 590 mm × 174 mm	2 m	12.2 kg	3.5 m
41438	2,16 m × 0,65 m	10	2 × 10	0.65 m	2.72 m	48 mm	2.725 mm × 650 mm × 174 mm	2.5 m	15.8 kg	4 m
41430	2,36 m × 0,68 m	11	2 × 11	0.68 m	2.99 m	48 mm	3.000 mm × 680 mm × 174 mm	2.75 m	17.6 kg	4.25 m
