Combimaster Plus X

Contact ZARGES Add to Compare Download Product Datasheet (PDF) Product Documents Spare parts and accessories
main product photo

Details

Two ladders in one: combined stepladder and push-up ladder for safe standing.

  • Two ladders in one: combined stepladder and push-up ladder for safe standing.
  • Can be used as a 2-part push-up ladder or as a ladder with double-sided access.
  • Strong Perlon straps.
  • Stiles made from extruded aluminium sections for maximum stability.

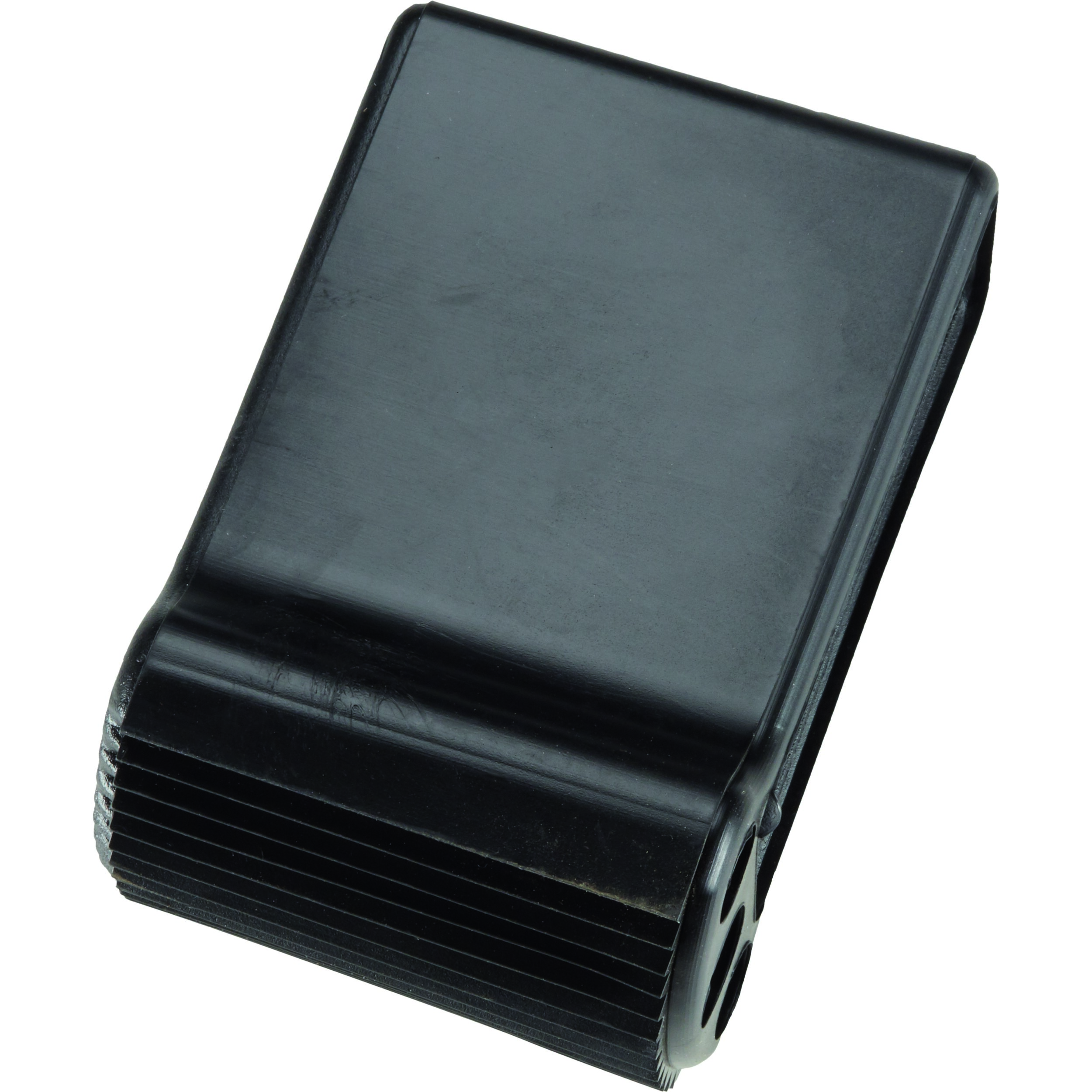

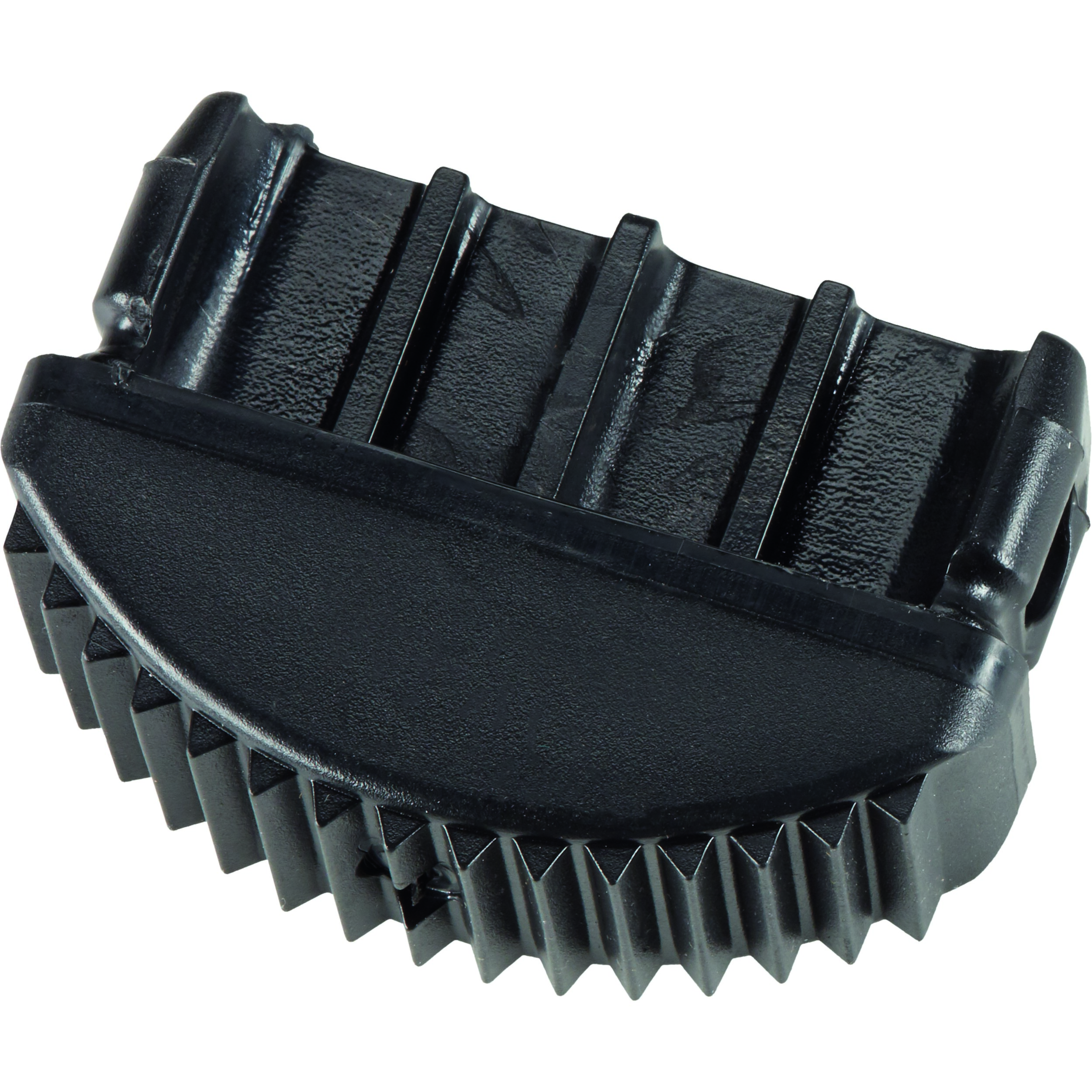

  • Replaceable 2-component plastic end caps ensure secure positioning without the risk of slipping.
  • High strength, non-twist rung/stile connections.

Hints and special features

  • Complies with EN 131 Professional.

More Information

More Information
Standards EN 131 professional
Warranty 10 years
Material Aluminium
Load capacity max. 150 kg
Coating natural
Connection Stile-Rung flanged
Tread depth 30 mm
Number ladderparts 2
Pitch rung/tread 265 mm
Producttype Flanged multi-function ladder, 2-section
Type rung/tread serrated

Variants

Order number Length as trestle Number of rungs Number of rungs Overall length, extended Overall length, retracted Stile depth Transport dimensions Weight Wide crosspiece Working height
42566 1.75 m 6 2 × 6 2.98 m 1.86 m 58 mm 1.860 mm × 420 mm × 125 mm 7.9 kg 0.8 m 3.8 m
42568 2.27 m 8 2 × 8 4.1 m 2.42 m 58 mm 2.420 mm × 420 mm × 125 mm 10.1 kg 0.8 m 4.9 m
42570 2.8 m 10 2 × 10 4.94 m 2.98 m 58 mm 2.980 mm × 420 mm × 125 mm 12.8 kg 0.9 m 5.7 m
42572 3.33 m 12 2 × 12 6.06 m 3.54 m 73 mm 3.540 mm × 420 mm × 135 mm 15.3 kg 1 m 6.8 m
42574 3.86 m 14 2 × 14 7.19 m 4.1 m 85 mm 4.110 mm × 420 mm × 140 mm 20.2 kg 1.1 m 7.9 m
42576 4.39 m 16 2 × 16 8.31 m 4.67 m 98 mm 4.670 mm × 420 mm × 150 mm 22 kg 1.2 m 9 m
