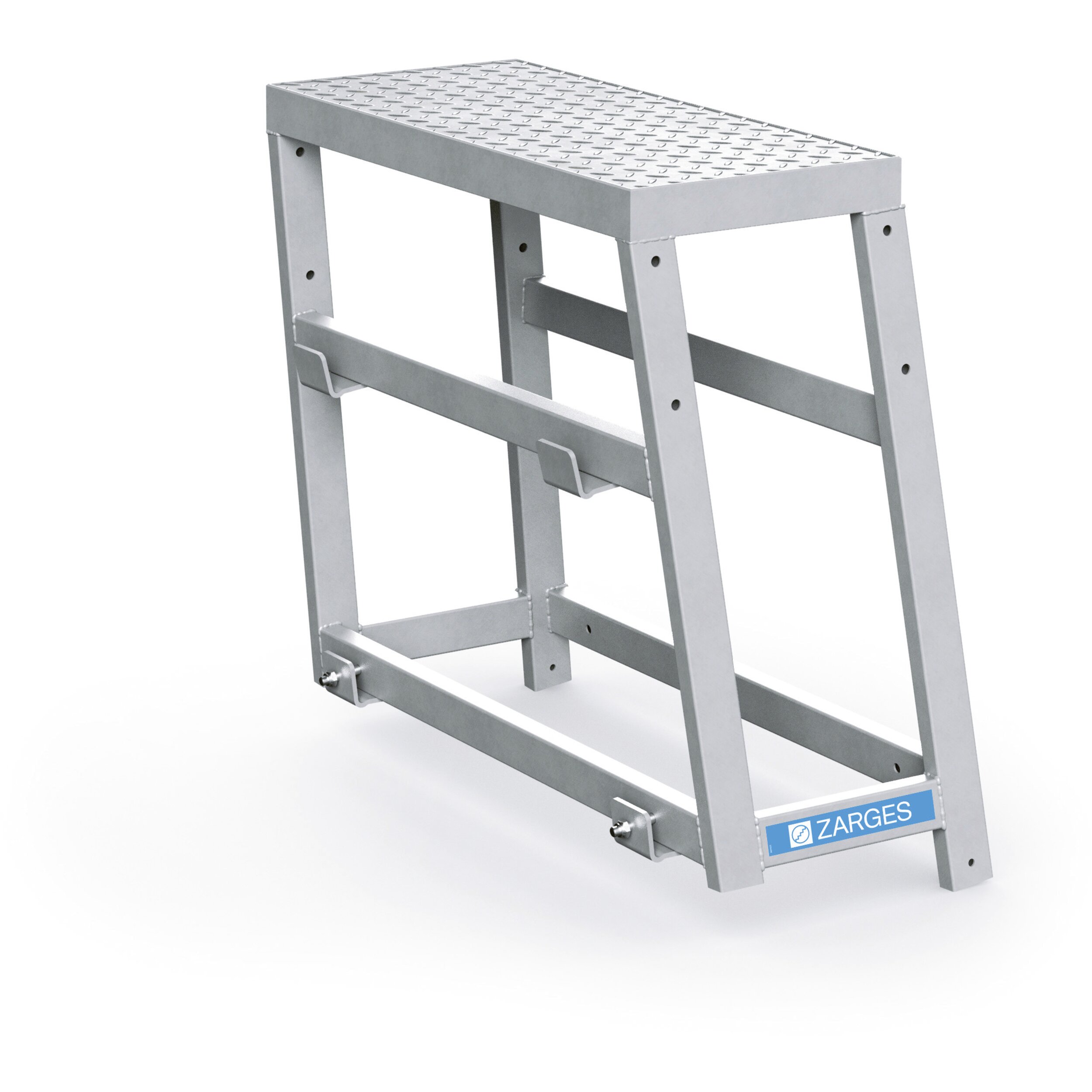

AMA P

SKU: 40263

Details

The modular solution for flexible or stationary application: extendible from a step stool to a complete work platform in various heights.

The modular solution for flexible or stationary application: extendible from a step stool to a complete work platform in various heights.
Modular design for changing or expanding configurations at any time – as mobile or stationary walkways.
Lightweight for quick and easy handling.
Extremely robust, torsion-resistant, corrosion-proof aluminium alloy structure.
Two-step basic module with up to three add-on steps, suitable for mobile applications.
Wide range of accessories for stationary or mobile applications.
Add-on modules in four different heights.
Comfortable, safe steps (555 x 250 mm) made from serrated aluminium sheet.

Order number	Module combination	Module, individual	Overall platform depth	Platform height	Total max. weight	Transport dimensions	Weight	Working height
40261	A	Module A	0.3 m	0.2 m	2.9 kg	580 mm × 290 mm × 200 mm	2.9 kg	2.2 m
40260	B	Module B	0.55 m	0.4 m	4.8 kg	620 mm × 550 mm × 400 mm	4.8 kg	2.4 m
40262	B + C	Module C	0.8 m	0.4 m	8.7 kg	610 mm × 280 mm × 380 mm	3.9 kg	2.4 m
40263	B + D	Module D	0.8 m	0.6 m	9.2 kg	630 mm × 290 mm × 590 mm	4.4 kg	2.6 m
40264	B + D + E	Module E	1.05 m	0.8 m	14 kg	660 mm × 290 mm × 790 mm	4.8 kg	2.8 m
40265	B + D + E + F	Module F	1.3 m	0.99 m	19.5 kg	690 mm × 290 mm × 980 mm	5.5 kg	2.99 m
