Alto L

SKU: 41562

Contact ZARGES Add to Compare Download Product Datasheet (PDF) Product Documents Spare parts and accessories

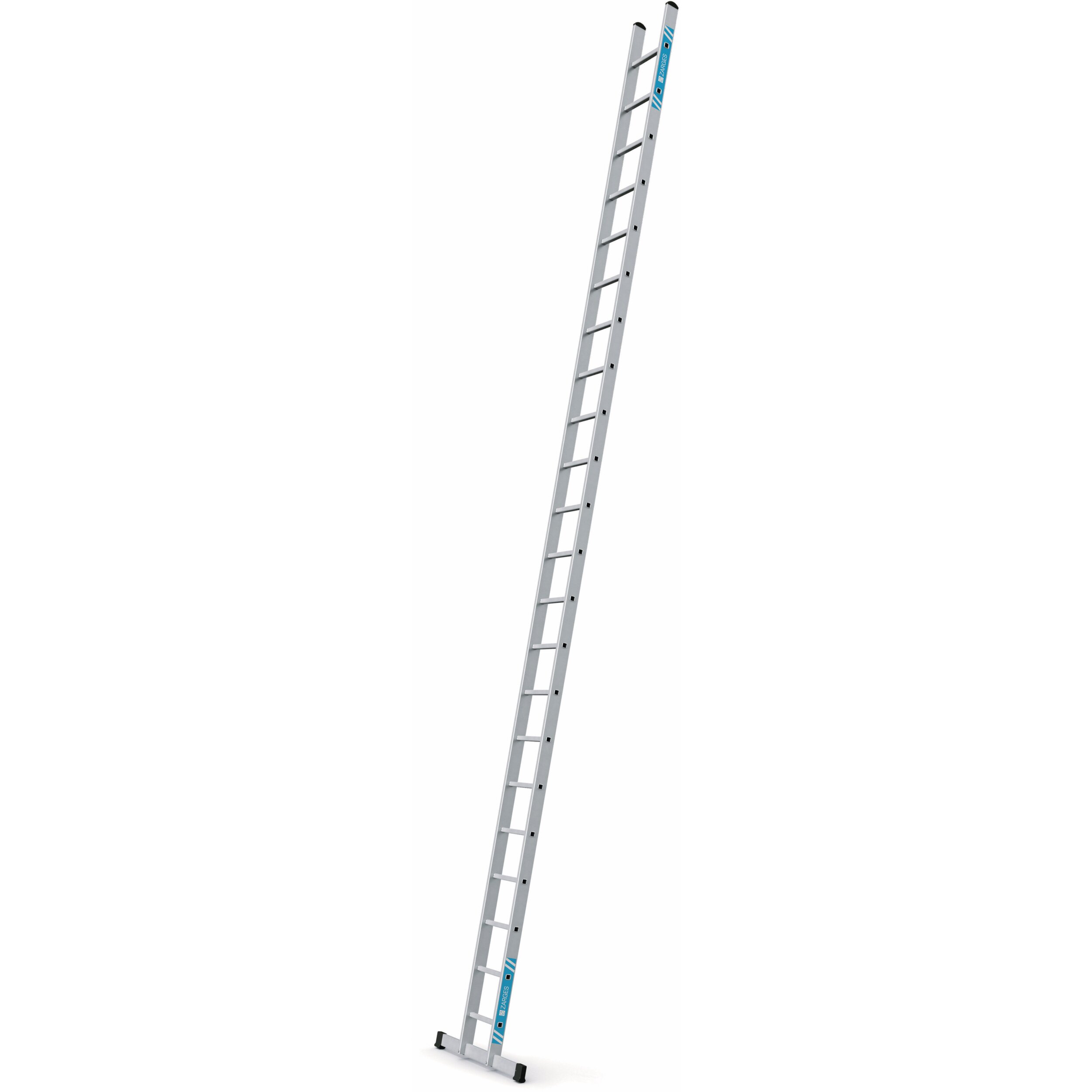

main product photo

Details

The compact alternative - with respect to size, weight and price/performance ratio.

  • The compact alternative - with respect to size, weight and price/performance ratio.
  • Very light but still extremely stable.
  • Rung depth: 30 mm
  • Outside width: 350 mm.
  • Replaceable 2-component plastic end caps ensure secure positioning without the risk of slipping.
  • High strength, non-twist rung/stile connections.
  • Rungs and stiles made from extruded aluminium sections.

Hints and special features

  • Complies with EN 131 Professional.

More Information

More Information
Warranty 10 years
Standards EN 131 professional
Material Aluminium
Load capacity max. 150 kg
Coating natural
Connection Stile-Rung flanged
Tread depth 30 mm
Transport dimensions 6.410 mm × 350 mm × 80 mm
Working height 7.15 m
Overall length 6.41 m
Number of rungs 22
Pitch rung/tread 270 mm
Producttype Flanged single ladder with rungs
Type rung/tread serrated
Weight 13.2 kg
Wide crosspiece 0.99 m
Stile depth 85 mm
Number of rungs / treads 22

Variants

Order number Number of rungs Overall length Stile depth Transport dimensions Weight Wide crosspiece Working height
41547 7 2.21 m 58 mm 2.210 mm × 350 mm × 60 mm 4 kg 3.05 m
41548 8 2.49 m 58 mm 2.490 mm × 350 mm × 60 mm 4.4 kg 3.35 m
41550 10 3.05 m 58 mm 3.050 mm × 350 mm × 60 mm 6.1 kg 0.79 m 3.9 m
41552 12 3.61 m 58 mm 3.610 mm × 350 mm × 60 mm 7 kg 0.79 m 4.4 m
41554 14 4.17 m 68 mm 4.170 mm × 350 mm × 65 mm 8 kg 0.79 m 4.95 m
41556 16 4.73 m 68 mm 4.730 mm × 350 mm × 70 mm 9.2 kg 0.89 m 5.5 m
41558 18 5.29 m 73 mm 5.290 mm × 350 mm × 80 mm 10.5 kg 0.89 m 6.05 m
41560 20 5.85 m 73 mm 5.850 mm × 350 mm × 80 mm 11.5 kg 0.99 m 6.6 m
41562 22 6.41 m 85 mm 6.410 mm × 350 mm × 80 mm 13.2 kg 0.99 m 7.15 m
41564 24 6.98 m 85 mm 6.970 mm × 350 mm × 90 mm 14.4 kg 1.1 m 7.7 m
