Access steps

SKU: 40055254

Jetzt konfigurieren
Contact ZARGES Add to Compare Download Product Datasheet (PDF) Product Documents Spare parts and accessories

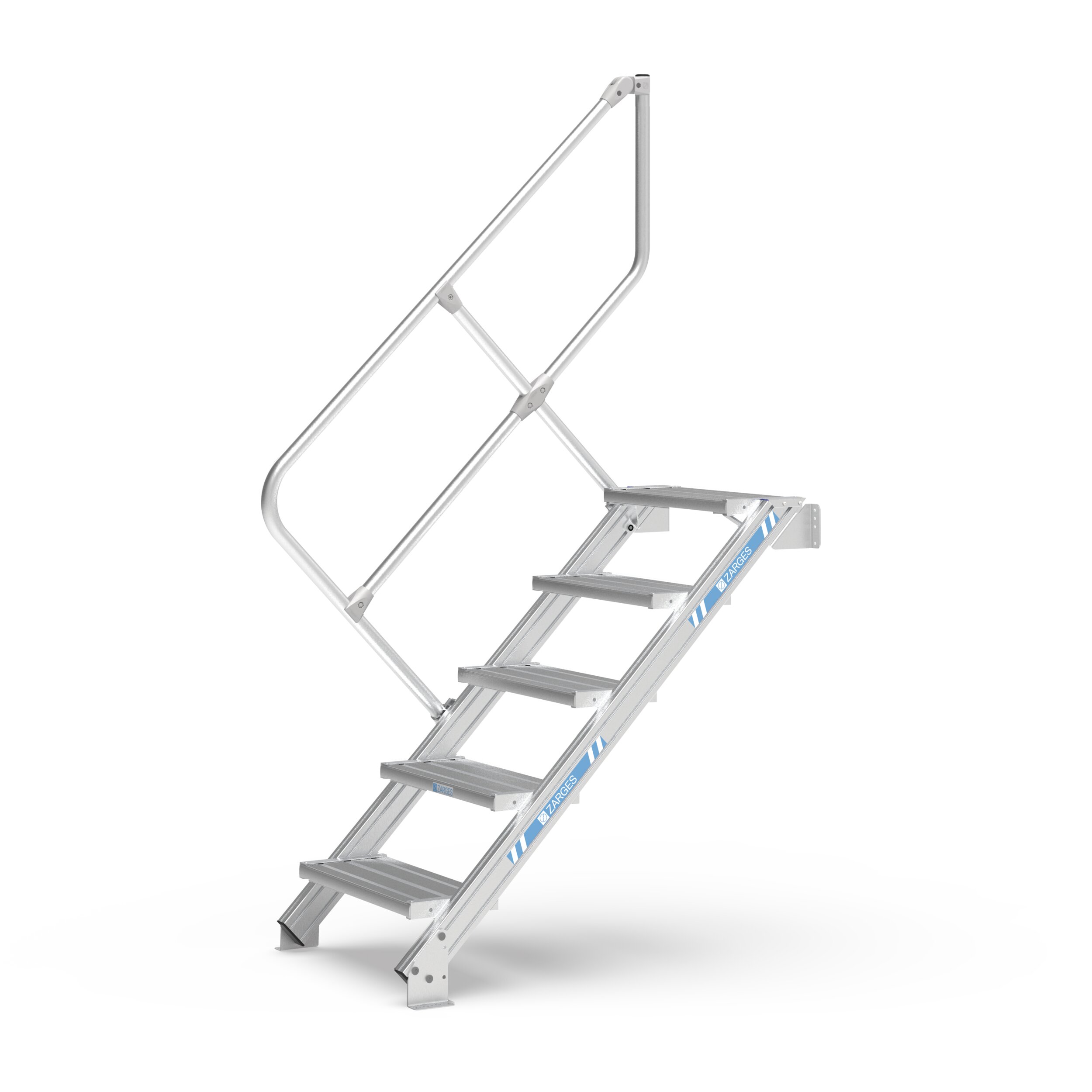

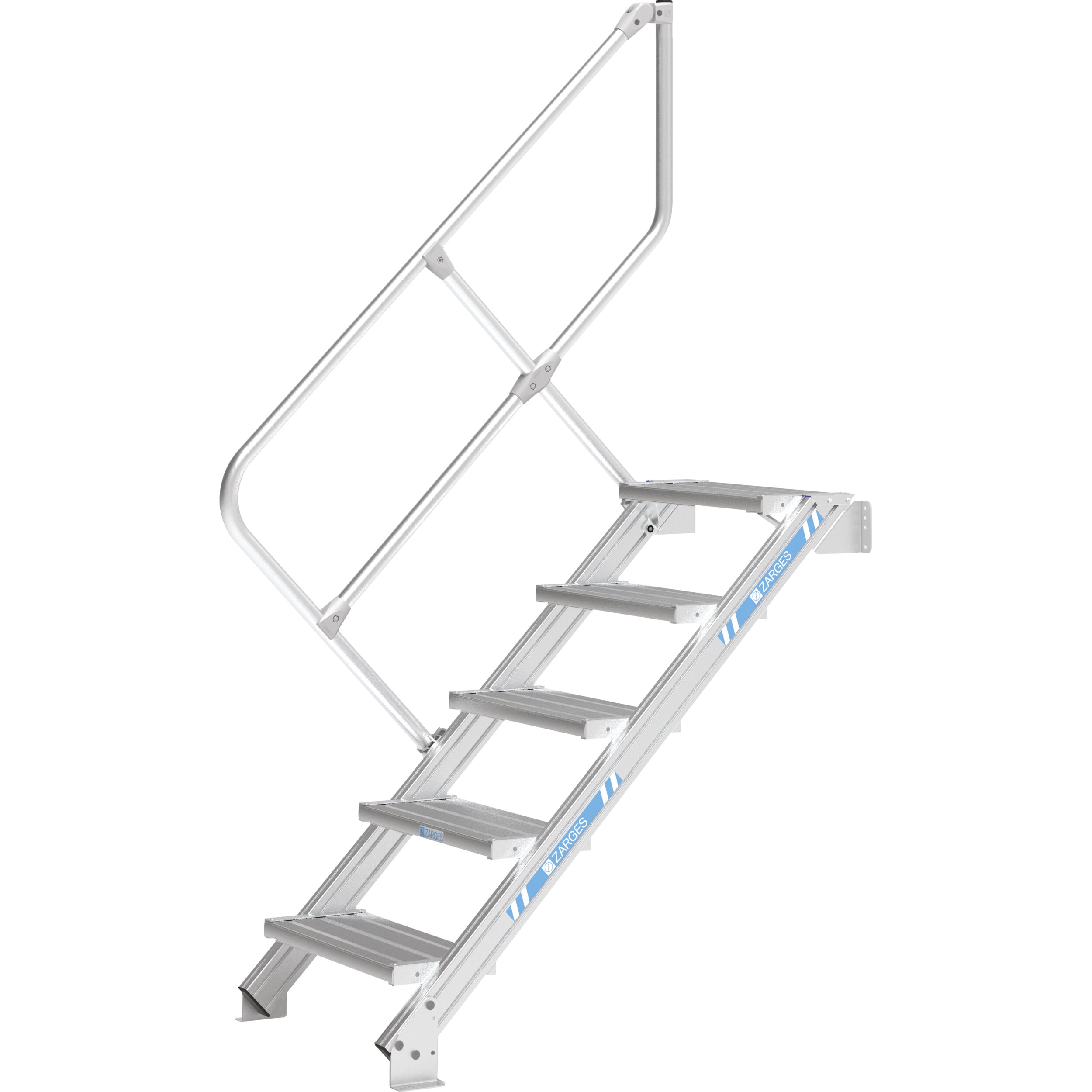

main product photo

Details

Stationary access to buildings and machines.

  • Different angles of inclination, 45° for comfortable access, 60° for confined spaces.
  • Selection of tread widths 600 mm, 800 mm or 1000 mm.
  • Serrated aluminium (R10) step and platform surfaces as standard. Also available as steel open grid (R12) and steel perforated plate (R13) for extra non-slip properties.
  • Maximum flexibility with optional handrails and guardrails which can be removed without tools.
  • Stiles made from high-strength aluminium extrusions with screw channels for flexible assembly options.
  • Quick and simple assembly with the ZARGES connection system with a high level of pre-assembly.
  • Hook-on cantilevers, set of hooks and support bracket to integrate the product as detachable in a fixing.
  • Plastic support plate for floor bracket for fast removal of product.
  • Standard applied: DIN EN ISO 14 122.

Hints and special features

  • We recommend equipping the product in accordance with the German Equipment and Product Safety Act (ProdSG) with two-sided handrails and, for steps with platforms or maintenance platforms, all-round fall protection (e.g. guardrails). If handrails or guardrails are not desired, the operator must ensure sufficient regulatory protection.
  • Standard applied: DIN EN ISO 14 122.

More Information

More Information
Standards EN ISO 14122
Warranty 10 years
load-capacity-step-td 150 kg
Tread width 600 mm
Load capacity max. 300 kg
Vertical height 3220 mm
Inclination 45 °
Number of treads 15
Overall span 3295 mm
Number of rungs / treads 15

Variants

Order number Inclination Number of treads Overall span Tread width Vertical height
40055244 45 ° 5 1117 mm 600 mm 1070 mm
40055246 45 ° 7 1547 mm 600 mm 1500 mm
40055248 45 ° 9 1977 mm 600 mm 1930 mm
40055250 45 ° 11 2435 mm 600 mm 2360 mm
40055252 45 ° 13 2865 mm 600 mm 2790 mm
40055254 45 ° 15 3295 mm 600 mm 3220 mm
40055256 45 ° 17 3725 mm 600 mm 3650 mm
40055258 45 ° 19 4155 mm 600 mm 4080 mm
40055264 45 ° 5 1117 mm 800 mm 1070 mm
40055266 45 ° 7 1547 mm 800 mm 1500 mm
40055268 45 ° 9 1977 mm 800 mm 1930 mm
40055270 45 ° 11 2435 mm 800 mm 2360 mm
40055272 45 ° 13 2865 mm 800 mm 2790 mm
40055274 45 ° 15 3295 mm 800 mm 3220 mm
40055276 45 ° 17 3725 mm 800 mm 3650 mm
40055278 45 ° 19 4155 mm 800 mm 4080 mm
40055344 45 ° 5 1117 mm 1000 mm 1070 mm
40055346 45 ° 7 1547 mm 1000 mm 1500 mm
40055348 45 ° 9 1977 mm 1000 mm 1930 mm
40055350 45 ° 11 2435 mm 1000 mm 2360 mm
40055352 45 ° 13 2865 mm 1000 mm 2790 mm
40055354 45 ° 15 3295 mm 1000 mm 3220 mm
40055356 45 ° 17 3725 mm 1000 mm 3650 mm
40055358 45 ° 19 4155 mm 1000 mm 4080 mm
40055204 60 ° 5 793 mm 600 mm 1250 mm
40055206 60 ° 7 1081 mm 600 mm 1750 mm
40055208 60 ° 9 1370 mm 600 mm 2250 mm
40055210 60 ° 11 1659 mm 600 mm 2750 mm
40055212 60 ° 13 1947 mm 600 mm 3250 mm
40055214 60 ° 15 2304 mm 600 mm 3750 mm
40055216 60 ° 17 2593 mm 600 mm 4250 mm
40055218 60 ° 19 2881 mm 600 mm 4750 mm
40055224 60 ° 5 793 mm 800 mm 1250 mm
40055226 60 ° 7 1081 mm 800 mm 1750 mm
40055228 60 ° 9 1370 mm 800 mm 2250 mm
40055230 60 ° 11 1659 mm 800 mm 2750 mm
40055232 60 ° 13 1947 mm 800 mm 3250 mm
40055234 60 ° 15 2304 mm 800 mm 3750 mm
40055236 60 ° 17 2593 mm 800 mm 4250 mm
40055238 60 ° 19 2881 mm 800 mm 4750 mm
40055324 60 ° 5 793 mm 1000 mm 1250 mm
40055326 60 ° 7 1081 mm 1000 mm 1750 mm
40055328 60 ° 9 1370 mm 1000 mm 2250 mm
40055330 60 ° 11 1659 mm 1000 mm 2750 mm
40055332 60 ° 13 1947 mm 1000 mm 3250 mm
40055334 60 ° 15 2304 mm 1000 mm 3750 mm
40055336 60 ° 17 2593 mm 1000 mm 4250 mm
40055338 60 ° 19 2881 mm 1000 mm 4750 mm
